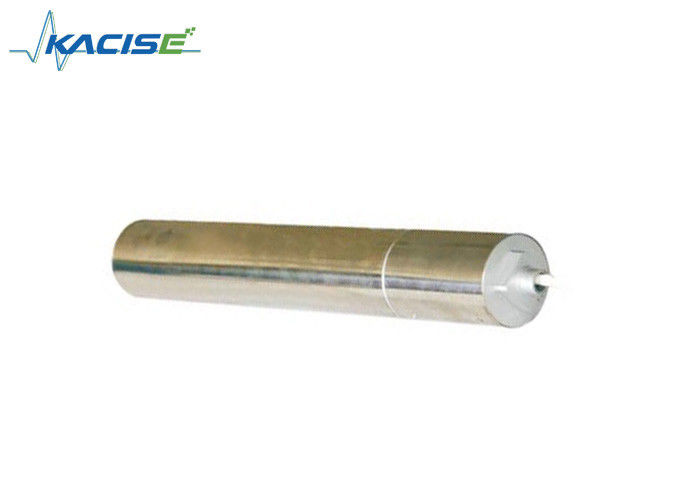

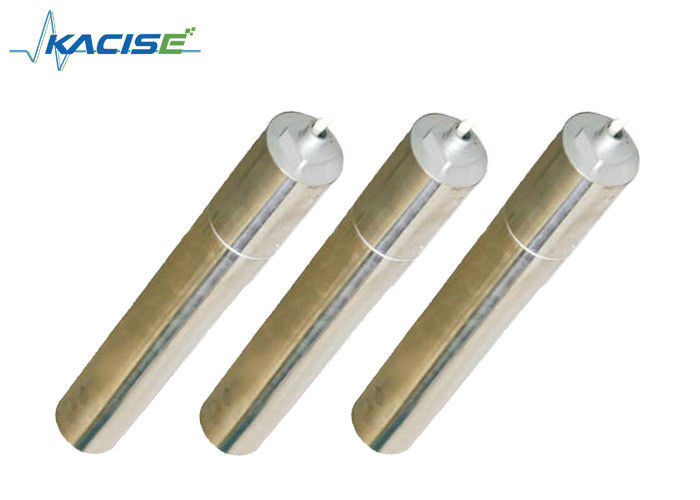

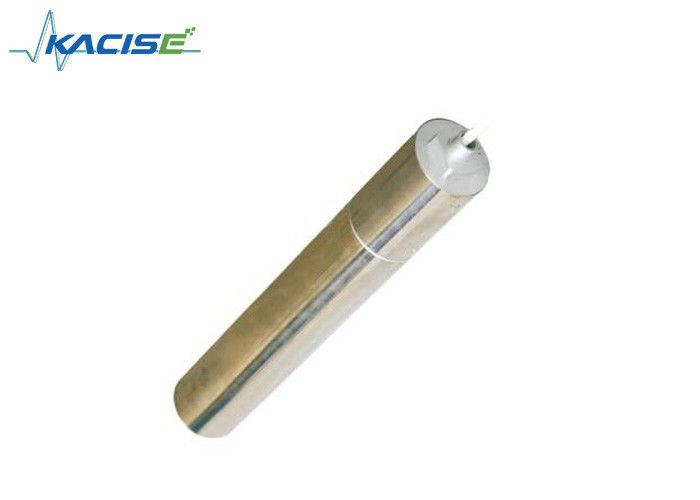

3 Axis Fiber Optic Electronic Gyroscope Sensor For Geological Exploration / Dam Measurement

3 Axis Fiber Optic Electronic Gyroscope Sensor For Geological Exploration / Dam Measurement

  • 3 Axis Fiber Optic Electronic Gyroscope Sensor For Geological Exploration / Dam Measurement
  • 3 Axis Fiber Optic Electronic Gyroscope Sensor For Geological Exploration / Dam Measurement
  • 3 Axis Fiber Optic Electronic Gyroscope Sensor For Geological Exploration / Dam Measurement
3 Axis Fiber Optic Electronic Gyroscope Sensor For Geological Exploration / Dam Measurement
Product Details:
Place of Origin: Shaanxi, China (Mainland)
Brand Name: KACISE
Model Number: KD64A3
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece/Pieces
Price: Negotiable
Packaging Details: carton or customers requests available
Delivery Time: 5 working days after payment
Payment Terms: L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 1000 Piece/Pieces per Week negotiable
Contact Now
Detailed Product Description
Range: ±100(°)/S Bias Stability (1σ): ≤0.3(°)/h
Working Temperature: -40℃~+70℃ Power Supply: ±5V
Dimension: Φ64mm×450mm Weight: ≤1500g
High Light:

mems gyroscope sensor

,

gyroscope sensor module

Three-axis Fiber Optic Gyroscope For Geological Exploration and Dam Measurement


Description



three-axis fiber optic gyroscope, fiber optic gyroscope and accelerometer as the main component, is the core component of the inclinometer to achieve the continuous inclinometer. It has high reliability, strong anti-poor environment, and high accuracy. This series of products successfully used in geological exploration, mining and oil inclinometer, dam measurement.



Dimension



3 Axis Fiber Optic Electronic Gyroscope Sensor For Geological Exploration / Dam Measurement 0



Application fields



3 Axis Fiber Optic Electronic Gyroscope Sensor For Geological Exploration / Dam Measurement 1


S  Specification



Parameter table
Range ±100(°)/S
Bias stability (1σ) ≤0.3(°)/h
Scale factor repeatability ≤150ppm
Random walk coefficient 0.03(°)/√h
Working Temp. -40°C~+70°C
Power supply ±5V
Dimension Φ64mm×450mm
Weight ≤1500g
Output Pulse

Note: the technical specifications in the table can be customized according to the requirements.
