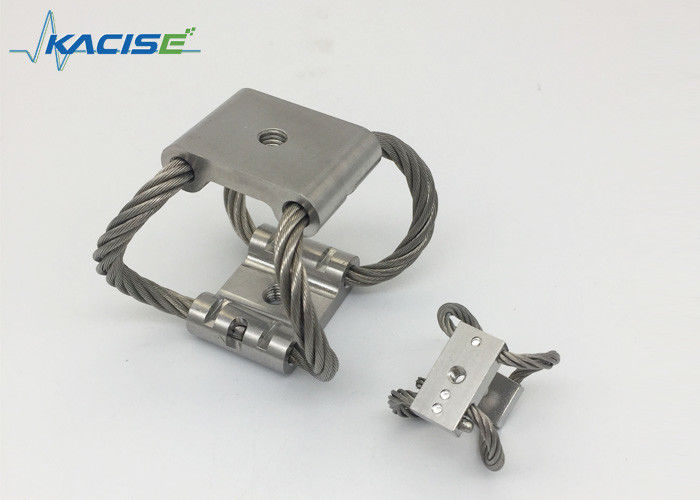

Anti Impact Stainless Steel Wire Rope Vibration Isolator For Industrial Machinery

Anti Impact Stainless Steel Wire Rope Vibration Isolator For Industrial Machinery

  • Anti Impact Stainless Steel Wire Rope Vibration Isolator For Industrial Machinery
  • Anti Impact Stainless Steel Wire Rope Vibration Isolator For Industrial Machinery
Anti Impact Stainless Steel Wire Rope Vibration Isolator For Industrial Machinery
Product Details:
Place of Origin: China (Mainland)
Brand Name: Kacise
Certification: ISO9001:2008
Model Number: GR
Payment & Shipping Terms:
Minimum Order Quantity: 1ps
Price: Negotiable
Packaging Details: each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time: 5-8 work day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal
Supply Ability: 10000 Pieces per Week
Contact Now
Detailed Product Description
Type:: Noise And Attenuation Material:: Aluminum Or Stainless Steel
Certificate:: ISO9001:2008 Usage:: Industrial Machinery
Application:: Aerial Camera Gimbal Photography Drone Shooting Shock Vibration Insulation GR1 Series Camera Vibration Isolator Shock Resistance: 20g/11ms
Working Temperature: -55 ~ +120 Type: HVAC Systems
High Light:

vibration isolation dampers

,

cable shock absorber

Anti Impact Stainless Steel Wire Rope Vibration Isolator For Industrial Machinery





Wire rope isolators are stable mounting assemblies of high quality stranded wire rope held with rugged metal retainers. Each isolating element has specific response characteristic determined by the diameter of the wire rope, the number of strands, the cable length, the cable twist or lay, and the number of cables per section.

Inherent damping is provided by flexure hysteresis, i.e., the rubbing and sliding friction between the strands of the wire rope.

Wire rope isolators provide higher levels of isolation than any other medium or design, with excellent vibration damping. Cable mounts are truly unique, adapted to a spectrum of physical and engineering requirements so broad that it includes almost every isolation need. They have put to rest the notion that a single mount cannot handle both shock and vibration.

Taking GH Series ALL Metal Wire Rope Isolator as example: It has three-dimensional variable stiffness and variable damping characteristics. To meet the aircraft, communications, oil tanks and logging trucks, ocean transportation and other equipment, instrumentation isolation, noise reduction requirements. So that the electronic device can also work in harsh mechanical environments, isolators to replace the traditional ideal.

Vibration isolators Show

Anti Impact Stainless Steel Wire Rope Vibration Isolator For Industrial Machinery 0 Anti Impact Stainless Steel Wire Rope Vibration Isolator For Industrial Machinery 1 Anti Impact Stainless Steel Wire Rope Vibration Isolator For Industrial Machinery 2
Anti Impact Stainless Steel Wire Rope Vibration Isolator For Industrial Machinery 3 Anti Impact Stainless Steel Wire Rope Vibration Isolator For Industrial Machinery 4 Anti Impact Stainless Steel Wire Rope Vibration Isolator For Industrial Machinery 5
Features/Benefits

All metal multidirectional anti-vibration/shock mounts

High Performance Shock and Vibration Isolation

Exceptional reliability and long span life

High damping

Broad Temperature Range

No ageing

Corrosion resistant (Unaffected by oils, fuels, and chemicals, etc.)

Great adaptability/versatility

Custom configurations (material, size, plating, or number of loops, etc.) available upon request



Options
  • Iridited aluminum bars are standard; however, other materials and finishes can be used.
  • Variations in cable configuration are available if the standard is not suitable.

Applications:



Helical isolators protect a broad range of loads:

  • Very fragile (electronic equipment, computer hardware, optical devices).
  • Highly substantial (heavy engines, machinery––during transit or while in operation, even in a moving vehicle).

See table below for more details.

Applications Typical Equipment Protection From Operational Advantages
Shipboard Electronics, Computers, Machinery Explosive blast, Inherent vibration, Storms Long life, Maintenance free,Temperature extremes, Corrosion resistance, All axes protection
Rough Terrain Vehicles Instrumentation, Generators, Electronics Rough terrain, Poor road conditions, Collision Long life, Maintenance free, Temperature extremes, Ozone, Radioactivity, UV Radiation
Aircraft Electronics, Computers High-G maneuvering, Hard landings, Turbulent air Temperature and altitude extremes, Lightweight
Shipping Containers Optics, Instruments, Missiles, Electronics Transit, Handling drop, Loading/Unloading Long life, Maintenance free, Exposure to moisture, Repeated use
Industrial Equipment Centrifuge, Dryers, Pumps Unbalanced dynamic loads, Fluid hammer, Inherent vibration, Foundation weakness Long life, Maintenance free, Corrosive environments
Ordnance Equipment Missile launcher, Tank artillery, Computer controls, Electronics Rough terrain, Railroad humping, Transit Maintenance free, Temperature extremes, Nearby blast
Medical Equipment Mechanical equipment necessary for patient care Vibration from moving parts, Mobile carts-Transport shock Maintenance free, No outgassing, Can be sterilized
Chimneys Chimneys, Scrubbers, Measuring devices Wind causing resonant frequencies, Stack gas causing turbulence near scrubber, etc. Maintenance free, Temperature extremes, Corrosive environments





Packaging & Shipping

Shippment

1: Usually we ship your order by sea or by air...
2: We do our best to ship your order within 1 week after receiving your payment
3: We'll tell you the tracking number once your order has been sent.

Package
1:Inner packing: opp bag, then carton box for each product.

2:Outer packing: export standard carton or wooden box, foam outside protecting the goods against damage.
Payment
1: We accept T/T Bank transfer, Western Union, Paypal

Our Services

1: Customize according to your special demand.

2: Various style for each products and completely series products.

3: Large stock for fast shipping.
4: High quality with competitive price
5: Sample order & small quantity order is ok

6: Provide free products information.
7: Reliable quality assured and active after-sell service

8: Small quantity sample is available



Company Information



Established in 2005, Xi'an GX Electronic-Mechano Co., Ltd., a high-tech enterprise specialized in the design and production of vibration isolators.
We have many years of experience in supplying many kinds of vibration isolators, RF coaxial connectors, arresters, locked terminals, LC filters and copper products (with perfect cost performance by hot extrusion).
The company's products are widely used in the fields of electrical and electronics, such as electronic equipments, aviation communication, oil devices and instruments, seismic instruments, ships building, and so on.
Take wire rope isolators for example, we have designed and produced ten categories, the load bearing range is from 1kg to 1t, which meets many kinds of requirements and demands from our clients and gets stable customers’ royalty after their launch into domestic market.
Our price is very competitive because we are manufactory, we are the source. We are ISO9001:2008 and national military standard certificated factory, so we can ensure the quality.


FAQ



Why is shock and vibration protection so important?
Shock and vibration influence the performance and life expectancy of nearly every kind of mechanical and electrical device, large or small.

What added benefits do isolators provide?
Typically, protection from shock and absorption of vibration is accomplished through the combination of a resilient element (metal mesh, an elastomer, a steel spring, etc.) and a metallic supporting frame. However, the helical isolator, also known as a helical mount or a cable mount, provides a higher level of isolation from shock and vibration than any other type of isolation device.

What makes GXs’ isolators so effective?
1. Our helical vibration isolators (also referred to as spring vibration isolators) are made of aircraft quality stainless steel cable, wound into metal retaining bars prepared for surface mounting.
2. The wire rope (ranging in diameter from 1/16” to 1”+) and its helix configuration provide the specific resilience required to cushion fragile loads as small as a few pounds or substantial loads of many thousands of pounds, and absorb vibration through a wide frequency spectrum.
3.
The isolator operates well in any position: in compression, extension, shear, and roll.
4.
Our isolators provide protection in all axes simultaneously.
5.
All-metal construction makes our isolators virtually impervious to severe environments, and maintenance free.
