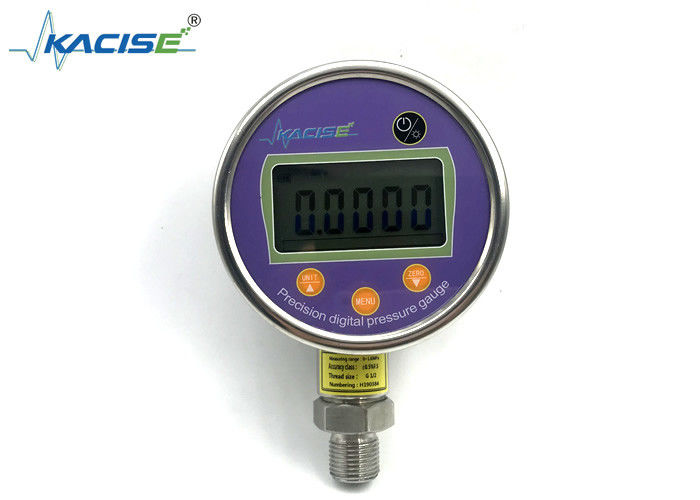

Corrosion Resistance Precision Digital Pressure Gauge Data Logger Memory Manometer

Corrosion Resistance Precision Digital Pressure Gauge Data Logger Memory Manometer

  • Corrosion Resistance Precision Digital Pressure Gauge Data Logger Memory Manometer
  • Corrosion Resistance Precision Digital Pressure Gauge Data Logger Memory Manometer
  • Corrosion Resistance Precision Digital Pressure Gauge Data Logger Memory Manometer
Corrosion Resistance Precision Digital Pressure Gauge Data Logger Memory Manometer
Product Details:
Place of Origin: China (Mainland)
Brand Name: Kacise
Certification: certificate of explosion-proof, CE
Model Number: KPG201
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time: 5-8 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal
Supply Ability: 1000 Pieces per Week
Contact Now
Detailed Product Description
Precision Grade: 0.5%FS,0.4%FS ,0.2%FS,0.1%FS,0.05%FS Pressure Range: -100kPa~0~600kPa~250MPa
Ambient Temperature: (-20~50)℃ Relative Humidity: <95%
Atmospheric Pressure: (86~106)kPa Storage Temperature: (-30~80)℃
Display: SFTN Liquid Crystal Display,White Backlight,5 Digit Display. Power Supply Mode: 4.2V Rechargeable Lithium Battery
Installation Method: Radial Installation、axial Belt Mounting Plate、Split Type Installation
High Light:

stainless steel pressure gauge

,

submersible pressure sensor

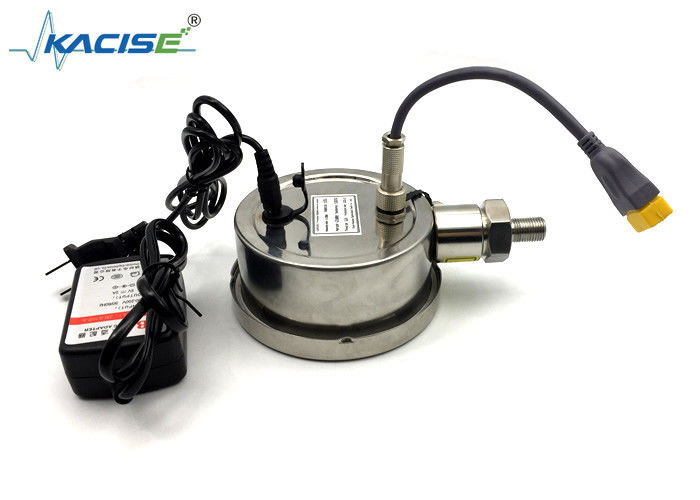

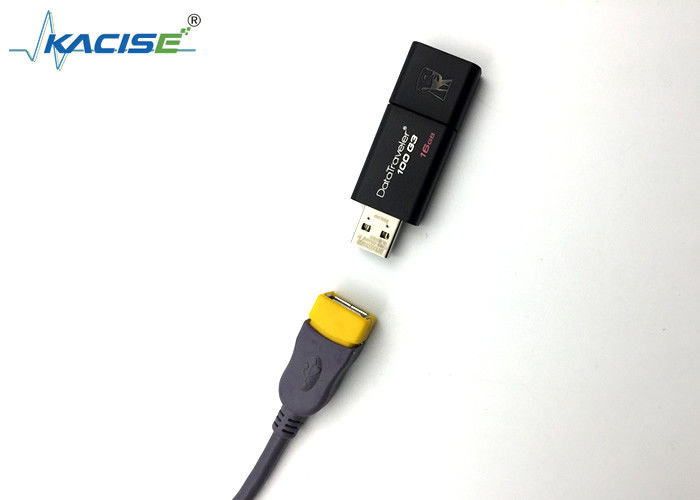

Data Logger Memory Manometer With Memory To Save And Collect Data By USB And PC



  Description

KPG201 precision digital pressure gauge is in accordance with the latest national standards developed and produced high-precision smart pressure measuring instruments. Pressure gauge mainly by the pressure sensor and signal processing circuit. Imported pressure sensor, superior performance, with high precision, corrosion resistance, shock resistance, vibration resistance, low temperature drift, high stability and other advantages; signal processing circuit using the latest ultra-low power processors, signal processing chips and power supply Management chip composition. High-capacity high-performance lithium battery-powered, no external power supply. The appearance of the instrument delicate, compact, beautiful, easy to use.



Specification



Item Spec.
Pressure range -100kpa~250pa~5kpa~250Mpa
Accuracy 0.5%, 0.4%, 0.2%, 0.1%, 0.05%, 0.02%
Display 5-digit dynamic display + percentage indicator
Pressure unit Pa, kPa, MPa, psi, bar, mbar, mmH2O, mmHg, inH2O, inHg, kgf/cm2
Overload pressure 150% FS
Destruction pressure 200% FS
Power supply 4.2V rechargeable lithium battery
Temperature -20 ℃ ~ 60 ℃
Humidity ≤ 85% RH
Calibration environment 20 ℃ ± 2 ℃
Explosion-proof level ExiaIICT4 optional
IP Grade IP66
Data record limit 11000 (50000 Selective)
Process connection M20 × 1.5 (male), special thread customizable
Dimensions height 170mm, width 110mm, thickness 50mm



Features



• Wide temperature compensation, ultra-low power consumption.

• Unit changing, peak valley and other functions fully preserved.

• Multi additional setting and functions available, user can set by environment and habits.

• IP grade ≧ IP66, higher than the industry level.



Corrosion Resistance Precision Digital Pressure Gauge Data Logger Memory Manometer 0
