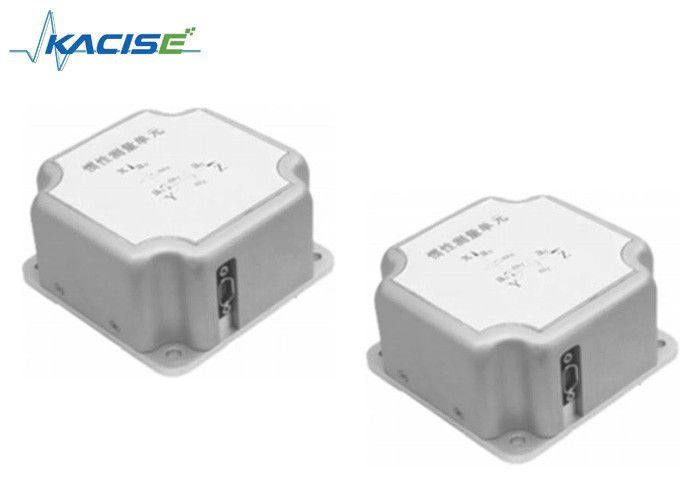

Digital RS232 Output Inertial Navigation System , 100Hz Inertial Navigation Unit

Digital RS232 Output Inertial Navigation System , 100Hz Inertial Navigation Unit

  • Digital RS232 Output Inertial Navigation System , 100Hz Inertial Navigation Unit
  • Digital RS232 Output Inertial Navigation System , 100Hz Inertial Navigation Unit
Digital RS232 Output Inertial Navigation System , 100Hz Inertial Navigation Unit
Product Details:
Place of Origin: Shaanxi, China (Mainland)
Brand Name: KACISE
Model Number: K-IMU-600
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece/Pieces
Price: Negotiable
Packaging Details: carton or customers requests available
Delivery Time: 5 working days after payment
Payment Terms: L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 1000 Piece/Pieces per Week negotiable
Contact Now
Detailed Product Description
Input Voltage: 15~36 VDC Input Current: ≤ 100 MA
Output Mode: RS232 Baud Rate: 115200bps
Output Data Rate: 100Hz Output Data Format: 16-bit Twos Complement
High Light:

inclinometers and tilt sensors

,

tilt measurement sensor

High Accuracy Digital RS232 Output Inertial Measurement Unit For Navigation Guidance System

Features



☆Digital RS232 output

☆Whole temperature range compensation

☆Nonlinear correction, Cross coupling correction

☆High accuracy, High Bias stability


Application



☆ Turntable speed control loop

☆ Navigation guidance system


S  Specification



Type K-IMU-600
Electric character
Input voltage 15~36 VDC
Input current ≤ 100 mA
Output Mode RS232
Baud Rate 115200bps
Output Data Rate 100Hz
Output Data format 16-bit twos complement
Performance index
Sensor Gyroscope accelerometer
Range ±250 °/s(X) ±100 °/s(Y,Z) ±5g
Bandwidth ≥50 Hz
Resolution (°/s) ≤ 0.01°/s 0.005g
Nonlinear (%FS) ≤ 0.1% Fs ≤ 0.5% Fs
Bias ±0.2°/s 0.07g
Bias stability ≤0.015°/s 0.001g
Start-up time (ms) ≤ 1 s
Environmental characteristics
Temperature (°C) -40~70
Storage Temperature (°C) -40~125
Resistant to shock 500 g
Physical Characteristics
Weight (g) 400g
Dimensions 76×76×38mm



Dimensions

Digital RS232 Output Inertial Navigation System , 100Hz Inertial Navigation Unit 0Digital RS232 Output Inertial Navigation System , 100Hz Inertial Navigation Unit 1Digital RS232 Output Inertial Navigation System , 100Hz Inertial Navigation Unit 2



Company strength

1.Through the ISO9001: 2008 quality system certification, access to a number of patent certificates and software copyrights
2.And Xiamen University, Chinese Academy of Sciences Institute of Acoustics, 715, Ha Engineering underwater acoustic college and many other colleges and universities,Scientific research unit cooperation
3.Products in the Northwest Industrial Group, Hainan Airlines Co., Ltd., are widely used
4.China's largest sensor, flowmeter production base



workshop​



Digital RS232 Output Inertial Navigation System , 100Hz Inertial Navigation Unit 3




Digital RS232 Output Inertial Navigation System , 100Hz Inertial Navigation Unit 4

Digital RS232 Output Inertial Navigation System , 100Hz Inertial Navigation Unit 5

Digital RS232 Output Inertial Navigation System , 100Hz Inertial Navigation Unit 6


Our Advantage

1.7*24 hours online--Efficient service, Professional answers
2.100% real photos--Detailed images, detailed description
3.After the receipt of the goods if the quality problems can be returned(Not artificial damage, Never used)
4. OEM is available; small quantities, mixed bulk orders are also welcome;
5.The sale of products within one year warranty and life time maintenance.
6. Delivery way: UPS, DHL, TNT, FEDEX, EMS, CHINA POST.
7. Payment: L/C, T/T, Paypal , Western Union, MoneyGram;
Xi'an Kacise Optronics Co., Ltd. was founded in 2000, is located in Xi'an, Shaanxi Province, China, is a professional engaged in instrumentation and sensors, R & D, production, sales as one of professional high-tech enterprises, we have our own production workshop and central laboratory. Factory building area is about 3000 square meters, with production of more than 30 employees, 8 engineer, 6 inspectors, 10 sale man, 5 for customer service, is this industry, we are one of the strong technology manufacturers with varieties specification.
When the company set up, we began to focus on the coordination of military supplies production, achieved GB/T19001-2008/ISQ9001:2008, GJB 9001B-2009 certification. When our company is running mature and stable, in 2008, we began to develop our business. Based on the production of military products quality control, we developed a lot of sensor products, such as a pressure sensor / transducer / sensor, level transmitter / ultrasonic level meter / ultrasonic flow meter, inertial navigation products, IMU, gyroscope, accelerometer etc.
