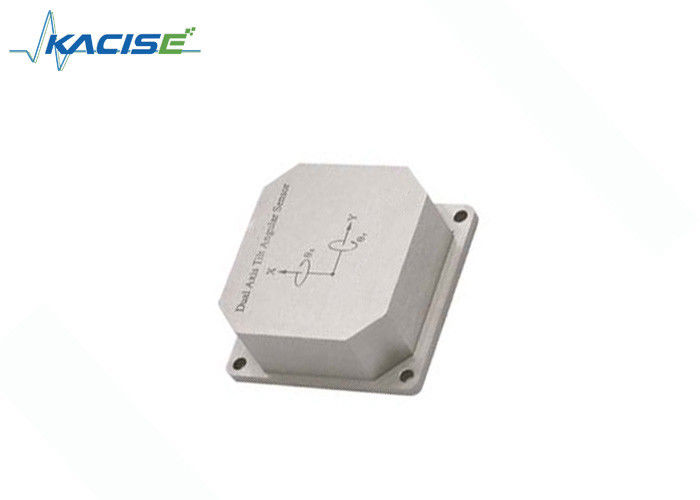

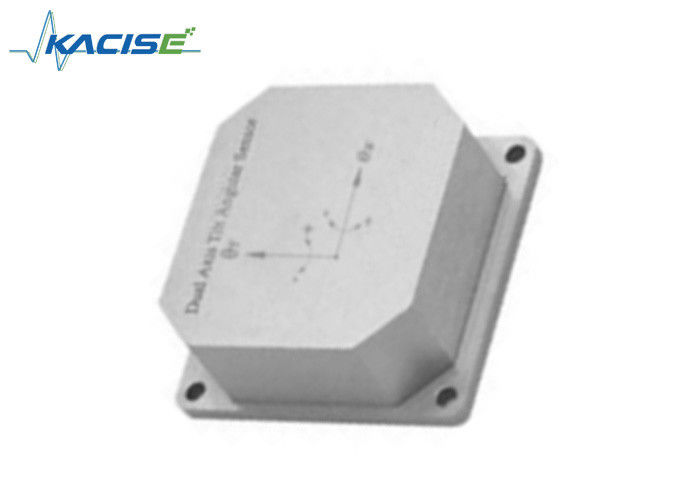

Digital RS485 Output Electronic Tilt Sensor , Remote Transmission Tilt Angle Sensor

Digital RS485 Output Electronic Tilt Sensor , Remote Transmission Tilt Angle Sensor

  • Digital RS485 Output Electronic Tilt Sensor , Remote Transmission Tilt Angle Sensor
  • Digital RS485 Output Electronic Tilt Sensor , Remote Transmission Tilt Angle Sensor
  • Digital RS485 Output Electronic Tilt Sensor , Remote Transmission Tilt Angle Sensor
  • Digital RS485 Output Electronic Tilt Sensor , Remote Transmission Tilt Angle Sensor
Digital RS485 Output Electronic Tilt Sensor , Remote Transmission Tilt Angle Sensor
Product Details:
Place of Origin: Shaanxi, China (Mainland)
Brand Name: KACISE
Model Number: K-2QJJ200/200A/200C
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece/Pieces
Price: Negotiable
Packaging Details: carton or customers requests available
Delivery Time: 5 working days after payment
Payment Terms: L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 1000 Piece/Pieces per Week negotiable
Contact Now
Detailed Product Description
Input Voltage: 5±0.25VDC Input Current: <40mA
Baud Rate: 19200 Bpsbps Data Updating: 25HZ
Bias: 0.1° Bandwidth: 5Hz
High Light:

inclinometers and tilt sensors

,

tilt measurement sensor

Digital RS485 Output, Remote Transmission Inclinometer Sensor


Features


☆Digital RS485 output, remote transmission

☆K-2QJJ200A whole temperature range compensation

☆Small size, light weight



Application



☆engineering machinery horizontal measurement

☆Laboratory instrument leveling



  Specification



Type K-2QJJ200 K-2QJJ200A K-2QJJ200C
Electric character
Input voltage 5±0.25VDC
Input current <40mA
Output mode RS485 1~4V
Baud Rate 19200 bpsbps
Data updating 25 Hz
The scale factor   3±0.2 V/g
Performance index
Range ±75° 20°
Nonlinear (%FS) 0.3%FS 0.1%FS
Resolution (°/s) 0.05° 0.01°
Bias 0.1° 2.5±0.1°
Bandwidth 5Hz
Start-up time (ms) <1s
Environmental characteristics
Compensated Temperatures   -40℃~70℃
Temperature (°C) -40℃~+70℃
Storage Temperature -40℃~+125℃
Physical Characteristics
Weight (g) 50g
Dimensions 38×38×15.5mm














































Note: Range can choose ±20°,±40°,±60°,±75°



Dimension



Digital RS485 Output Electronic Tilt Sensor , Remote Transmission Tilt Angle Sensor 0Digital RS485 Output Electronic Tilt Sensor , Remote Transmission Tilt Angle Sensor 1Digital RS485 Output Electronic Tilt Sensor , Remote Transmission Tilt Angle Sensor 2Digital RS485 Output Electronic Tilt Sensor , Remote Transmission Tilt Angle Sensor 3
