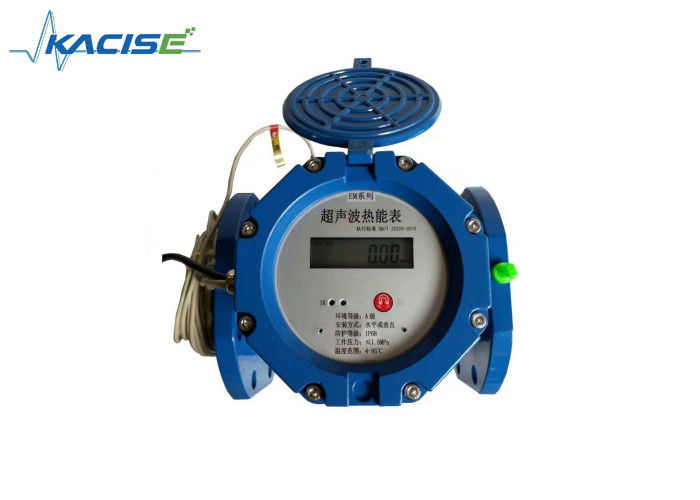

Durable Ultrasonic Flow Detector / Ultrasonic Flow Transducer Class B Accuracy

Durable Ultrasonic Flow Detector / Ultrasonic Flow Transducer Class B Accuracy

  • Durable Ultrasonic Flow Detector / Ultrasonic Flow Transducer Class B Accuracy
  • Durable Ultrasonic Flow Detector / Ultrasonic Flow Transducer Class B Accuracy
Durable Ultrasonic Flow Detector / Ultrasonic Flow Transducer Class B Accuracy
Product Details:
Place of Origin: China (Mainland)
Brand Name: Kacise
Model Number: KUHM2100
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1000 Pieces per Week
Contact Now
Detailed Product Description
Theory: Ultrasonic Heat Meter Power Suppply: 3.6V Lithium Batter
Accuracy: Class B Usage: Temperature Sensor
IP Class: IP68 Temperature Sensor: Pt100
High Light:

portable clamp on flow meter

,

ultrasonic flow transducer

Heat Meter, Ultrasonic Heat Meters, Sonic Flow Meter
Product Description



KACISE Cheap Remote Reading Mbus RS485 Infrared Ultrasonic Heat Flow Meter hot and cold meter adopt most advanced non-magnetic technology and it features elegant appearance, accurate measurement, convenient management, steady operation, strong anti-erosion, and long using life, which is secure and economic.
It is widely used in the heat system with concentrated heat supplying management, separate household data collecting management. Varies of communication modes are optional according to the users’ need.

Feature of Cheap Remote Reading Mbus RS485 Infrared Ultrasonic Heat Flow Meter hot and cold meter

1. Measure Heat.
2. Show supply/return water temperature and differential temperature.
3. Display pile flow measure and instantaneous flow measure.
4. Running time display.
5. Cold measure and display (for heat/cold Ultrasonic Heat Meter.



led display

High-quality external ultrasonic heat meter with high precision LCD display RS485 communication

Technical Specification of Cheap Remote Reading Mbus RS485 Infrared Ultrasonic Heat Flow Meter hot and cold meter


Diameter Min Flow Quantity of Flow Max Flow Length
qmin(m³/h) qp(m³/h) qmax(m³/h) mm
DN15 0.03 1.5 3 110
DN20 0.05 2.5 5 130
DN25 0.07 3.5 7 160
DN32 0.12 6 12 180
DN40 0.2 10 20 200
Measurement Accuracy CJ128-2007<Heat Meter>Class 2
Connection DN15~DN40 Threaded connection/DN50~DN300 Flange connection
Pressure Loss ≤0.02MPa
Maximum Working Pressure(MWP) 1.6MPa
Flow Measuring Range 1:100
Temperature Sensor 1.5m standard a pair of PT1000 Temperature Sensor (cable length could be changed)
Data Storage Continuous store of 18 months record
Power-off Protection After power-off, meter could save all the record of before flow rate and the corresponding time, after power back, it recovery measure function automatically, and ensure the time continuation
Remote Transmission MBUS/RS-485
Power Supply High Power Lithium battery
Protection Class IP67 (IP68 need to modified)
Environmental Class Class B
Temperature Range (5~95)℃
Temperature Difference (3~90)K
Installation Way Inflow or Return flow(Default is Inflow, for return flow need to indicate when ordering)
Installation Position Horizontal / Vertical
Permanence Service cycle≥6 years
Display 8-bit LCD display
Anti-magnetic Disturbance

When the intensity of magnetic field interference is not more than 100 ka/m, should not affect water meter measurement and remote transmission characteristics





Company Information

Xi'an Kacise is certified by ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof, etc. which assure our products are conform to the international standards.

We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. We have experienced technical and management personnel, through the efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider. And we are continuously trying to improve product quality.



Currently, Kacise sensor is already exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing. We regards “reasonable prices, efficient production time and good after-sales service” as our tenet, and hope to cooperate with more customers for mutual development.



We supply high quality Cheap Remote Reading Mbus RS485 Infrared Ultrasonic Heat Flow Meter hot and cold meter, hope we can coopperate in near future by providing you suitable products, good services and reasonable prices.

Our Services
  • Your inquiry will be replied in 24hours.
  • Well-trained and experienced staffs to answer all your enquires in fluent English.
  • OEM&ODM, we can help you to design and your request will be put into product.
  • Distributorship are offered for your unique design and some our current models.
  • Protection of your sales area, ideas of design and all your private information.
  • Discounts are offered based on order quantities.
FAQ
1. Q: What information need to be provided to choose the suitable model?
A: Application field, Nominal pressure ,Medium & medium temperture , Power supply , Output,
Flow range, Accuracy, Connection and other parameters.

2. Q: Are you a trade company or a manufacturer?

A: We are an ISO approved manufacturer specialized in level and flow measuring instruments.

OEM & ODM service are available. Welcome to visit us in China.

3. Q: What is your MOQ?

A: To start our cooperation, sample order is acceptable.

4. Q: What is your delivery date?

A: The delivery date is about 3-15 working days after receipt of payment.

5. Q: What is your payment terms?

A: We support T/T, PayPal and Trade Assurance.

For mass production order, it is 30% deposit in advance and 70% balance before shipment.

6. Q: What is Trade Assurance payment method:

A: It’s a free service which can protect your orders from payment to delivery.

And we now have USD104,000.00 of caution money to assure your orders.

7. Q: Do you have a warranty for Cheap Remote Reading Mbus RS485 Infrared Ultrasonic Heat Flow Meter hot and cold meter?

A: Yes, we have the warranty of 12 months.



Durable Ultrasonic Flow Detector / Ultrasonic Flow Transducer Class B Accuracy 1

Durable Ultrasonic Flow Detector / Ultrasonic Flow Transducer Class B Accuracy 2

Durable Ultrasonic Flow Detector / Ultrasonic Flow Transducer Class B Accuracy 3
