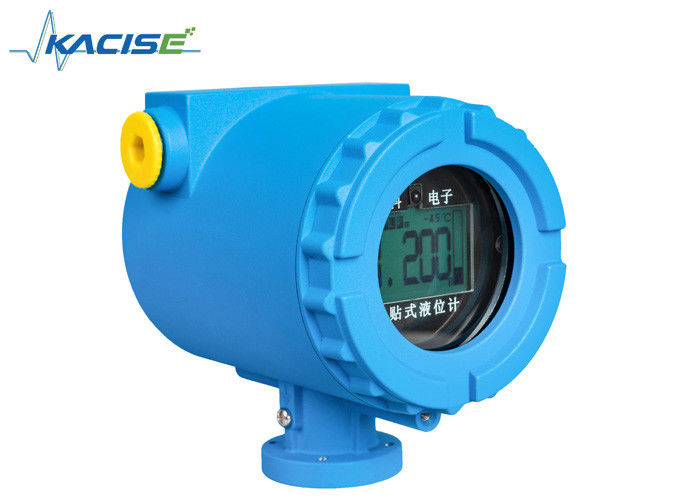

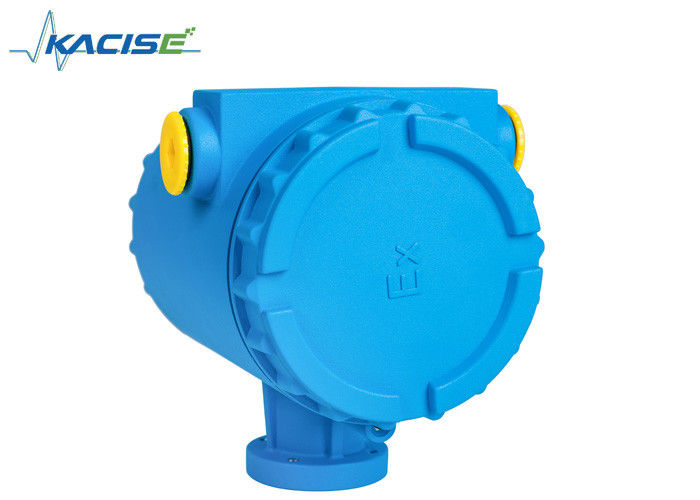

Externally Mounted Tanks Fluid Level Meter Monitoring For High Corrosive Liquids

Externally Mounted Tanks Fluid Level Meter Monitoring For High Corrosive Liquids

  • Externally Mounted Tanks Fluid Level Meter Monitoring For High Corrosive Liquids
  • Externally Mounted Tanks Fluid Level Meter Monitoring For High Corrosive Liquids
Externally Mounted Tanks Fluid Level Meter Monitoring For High Corrosive Liquids
Product Details:
Place of Origin: china
Brand Name: kacise
Certification: iso9001,
Model Number: KXEUL01
Payment & Shipping Terms:
Minimum Order Quantity: 0-100
Price: Negotiable
Packaging Details: carton or customers requests available
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 3000 Piece/Pieces per Month
Contact Now
Detailed Product Description
Power: Two Wire / DC 24V Output: RS485, Hart, Modbus
Comunication: RS485, Hart, Modbus Range: 3m, 5m, 10m 15m, 20m
Protecting: Ip67 Accurancy: 10mm
High Light:

ultrasonic level transmitter

,

ultrasonic liquid level sensor

KXEUL01 Externally Mounted Tanks Liquid Level Monitoring for High Corrosive Liquids

1 Principle of Operation
External liquid lever sensor with sonar ranging principle, using the temperature integrate sensor to process the sonar signal. the sensor is pasted in the outerwall of the tank. Using the
patented algorithm to calculate the height of the liquid in the tank and output to a remote control system(eg.DCS) through (4-20)mA,HART, RS-485, Modbus.
According the figure right, the time is taken for the signal to be transmitted and then received from the liquid surface. Signals from the transducer are fed into the processor and then processed by patented algorithm to calculate the height of the liquid according to the formula:



Quick Details

Place of Origin:Shaanxi, China (Mainland)

Brand Name:Kacise

Model Number:KXEUL01

Usage:Level Sensor

Theory:Ultrasonic Sensor

Output:(4-20)mA,HART, RS-485, Modbus

Repeatability error:±5mm

Power:24V DC±5%(two-wire system )

External material:cast aluminum

Ingress Protection:IP67

Explosion-proof Mark:ExdmIICT6

Sites Applicable:

all explosive gas atmosphere except coal mine

Ambient temperature for operation panel:-40°F~+140°F

Ambient temeprature for ultrasonic probe:-40°F~+212°F

Measurable tank wall thickness:

max 70mm
Supply Ability

Supply Ability:300 Piece/Pieces per Month

Packaging & Delivery

Packaging Details

1 set in 1 carton with size 770*290*200(mm) or 600*290*200 (mm)

Port

Lian yungang/Shanghai/Tianjin or other port as customer requests



Externally Mounted Tanks Liquid Level Monitoring for High Corrosive Liquids







1.Non destructive installation--No drilling on tank wall.

Just attach probe on tank with magnetic sucker, glue or supporter.

No welding and no disturbance in tank normal use,

expecially applicable for the tanks with toxic, strong corrosive, alkali

liquid inside.

2. Installation does not disturb normal use of tank.

3. No special requirement for medium and tank material.

4. Explosion proof.

5. Applicable in various complicated conditions.

6. Self adjustment technology to make sure stable performance

7. Auto calibration.

8. Strong anti-interference capability.

What can the advanced technology Non Destructive Installation give you?

It is SAFE CONVENIENT and COST SAVING.

You do not have to care if there is high pressure, toxic, or strong corrosive liquid in tank.





Parameters



Repeatability error 2mm
Measurable tank wall thickness Max 50mm
Tank Material

Steel, Stainless steel, glass, unfoamed plastics and other compact

materials.

Measurable medium Pure liquid, milky liquid, suspension liquid
Ambient temperature: -4~140℉( the max temperature for High temperature type is 302℉)
Ambient humidity 15%~100%RH
Power: DC 24V 0.05A
Signal output: Relay output
Relay capacity DC 30V 6A / AC 250V 6A
Diameter of threading hole Φ8mm ( adaptive cable diameter Φ6~8mm )
Shell Material Cast Aluminum
Shell Ingress Protection IP65
Explosion-proof ExdmIICT6
Sites applicable Explosive gas atmosphere except coal mine
Sensor( probe ) shell material Stainless steel Sensor( probe ) shell material: Stainless steel
Standard connector G1/2







Application

Our liquid level control/switch has very good application for oil or hazardous chemicals.



Medium already applied in:



Liquefied Gas Ethylene Hydrochloric Acid Nitric Acid Sulfuric Acid
Propylene Aqua Carbolisata Edible Oil Crude Oil Lacquer Thinner
Brine Butadiene Chlorethylene Light Hydrocarbon Caustic Soda Liquid
Methylamine Toluene Light Oil Gasoline C3
Kerosene Xylol Oxalic Acid Oxirane Acetone
Carbinol Ethanol Dimethyl Ether Dimethyl ether Diesel



Applicable for varous types of tanks, such as sperical tank, stand tank and horizontal tank.







Comparison

So WHY is our liquid level control/switch is your best choice instead of traditional level

control/switch?

Let's see the comparison of our level switch and the traditional one:

  Our level switch Traditional level switch
Installation

No drilling.

Convenient and safe.

Drilling is required.

Inconvenient.

Repair, maintenance, or

replacement for a new level meter

No any disturbance in tank normal use.

Users should release all the liquid in tank and clean it.Therefore, the tank

can not be used for days which will

result in work delay and great loss.































Conclusion: Our liquid level

contro/ switch has the absolutely distinguished and competitive

advantages in level control especially for the control of hazardous

liquid ( toxic, strong corrosive, acid.....) in high pressure and hermetically sealed

tank.

Packaging & Shipping
  • Individual packing
  • Product is packed between two sponges.
  • Size: 600mm*110mm*290mm
  • Gross Weight: Approx 10kg (weight varies according to length of probe cable)
