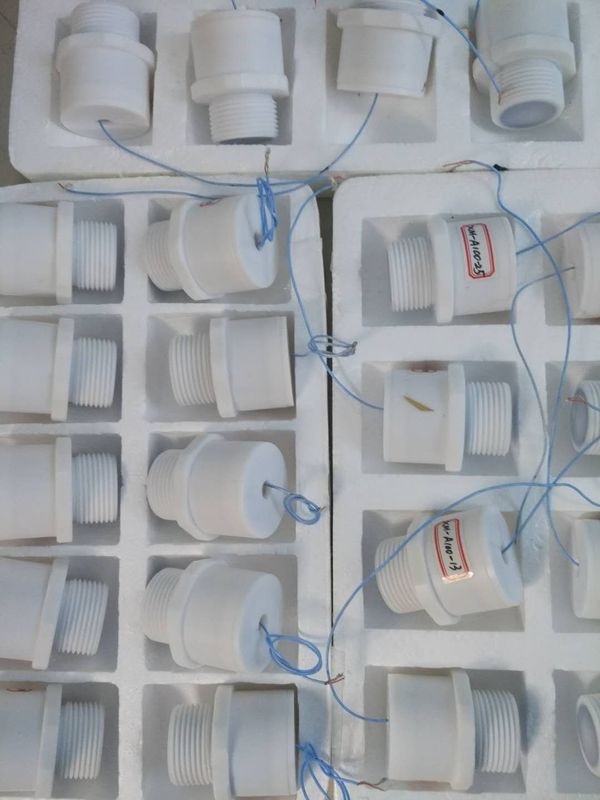

Food Grade PTFE Ultrasonic Fluid Level Meter 1"NPT Chemical Resistance

Food Grade PTFE Ultrasonic Fluid Level Meter 1"NPT Chemical Resistance

  • Food Grade PTFE Ultrasonic Fluid Level Meter 1"NPT Chemical Resistance
  • Food Grade PTFE Ultrasonic Fluid Level Meter 1"NPT Chemical Resistance
Food Grade PTFE Ultrasonic Fluid Level Meter 1"NPT Chemical Resistance
Product Details:
Place of Origin: China
Brand Name: Kacise
Certification: CE
Model Number: KUS550
Payment & Shipping Terms:
Minimum Order Quantity: 0-100
Price: Negotiable
Packaging Details: carton with bubble
Delivery Time: 3-5 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000 pieces per month
Contact Now
Detailed Product Description
Material: PTFE Thread: 1" NPT
IP Grade: IP67
High Light:

ultrasonic fluid level sensor

,

ultrasonic level transmitter

1"NPT Food Grade Chemical Resistance Whole Body PTFE Anti Corrosion Ultrasonic Level Sensor







Introduction



This sensor provides very short to long-range detection and ranging, in a compact, robust PVC/PTFE housing, designed to meet IP67.



Features



. IP67 Designed for outdoor or indoor environments

. High sensitivity

. Free run operation can continually measure and output ranger information

. Sensor beam angle is 10 degrees (full angle)

. Chemical Resistance Whole Body PTFE

. Anti Corrosion

. Suitable for Sanitary and Hygienic application



Applications



. Tank level measurement

. Bin level measurement

. Proximity zone detection

. People detection

. Robot ranging sensor

. Autonomous navigation

. Multi-sensors navigation

. Distance measuring

. Food level detection

. Industrial automation



Parameters



General Parameters Mechanical Properties
Detection Range 200mm~3000mm Connection 5 pin cable
Transducer Frequency 70KHZ Weight 100g
Repeatability Precision 1% IP grade IP67
Response Time <50ms
Beam Angle 7°±2
Temp. Compensation inside/outside/fix temp.
Electrical Parameters
Operating Voltage 14.5VDC~27VDC
Limit Working Voltage 13VDC~30VDC
Power Consumption 30mA
Circuit Protection short-circuit protection, overload protection
Output Digital Output RS485
Analogue Output 0~5V
Switch Output 0V / 5V
Ambient Environment
Operating Ambient Temp. 0~70 (-40~85, -55~125, etc, customizable)
Storage Temperature -55~125
