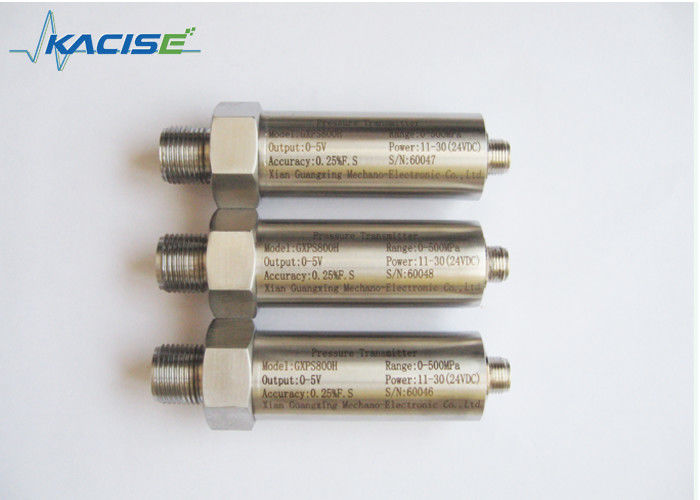

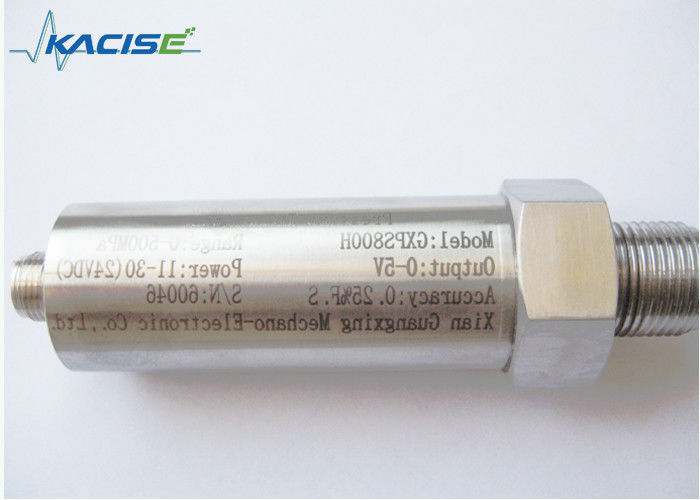

GXPS800H High precision ultra temperature pressure transmitter

GXPS800H High precision ultra temperature pressure transmitter

  • GXPS800H High precision ultra temperature  pressure transmitter
  • GXPS800H High precision ultra temperature  pressure transmitter
  • GXPS800H High precision ultra temperature  pressure transmitter
  • GXPS800H High precision ultra temperature  pressure transmitter
GXPS800H High precision ultra temperature  pressure transmitter
Product Details:
Place of Origin: CHINA
Brand Name: Kacise
Certification: CE
Model Number: GXPS800H
Payment & Shipping Terms:
Minimum Order Quantity: 1Piece/pieces
Price: nogotiable
Packaging Details: each unit has individual box and all boxes are packed in standard packages or customers requests available
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 2000 piece/pieces per week
Contact Now
Detailed Product Description
Pressure Range: 0 ~ 150MPa…300MPa…400MPa…600MPa…800MPa…1000MPa…1200MPa…1500MPa Accuracy: ±0.25%FS、±0.5%FS;±1.0%FS Selectable
Overload Pressure: 120%FS Operating Temperature: -40~+85°C/125°C/250°C Selectable
Output Signal: 4~20mA 0~5VDC 0~10VDC 0~20mA Power Supply: 12~36VDC 12~36VDC 3~15Vdc
High Light:

piezoresistive pressure transmitter

,

explosion proof pressure transmitter

GXPS800H High precision ultra  temperature pressure transmitter





Feature

  • Integrated design, all stainless steel welding.
  • High performance digital processing circuit
  • Long-term stability, long working life,
  • Secure and safe in ultra-high pressure





Application

  • Static pressure machine
  • Hydraulic machine, hydraulic system
  • Pressurization system, high pressure pump, petrochemical
  • Ultra-high pressure industrial equipment
  • Such as metallurgical machinery, high pressure water jet cutting,

        high pressure cleaning, high-pressure food machinery, high pressure water jet etc.


Electronic interface and signals definition

GXPS800H High precision ultra temperature  pressure transmitter 0



Parameter



Spec. Numerical value
Pressure range 0 ~ 150MPa…300MPa…400MPa…600MPa…800MPa…1000MPa…1200MPa…1500MPa
Overload pressure 120%FS
Secondary containment  200%FS or 1700MPa, whichever is less
Accuracy ±0.25%FS,±0.5%FS;±1.0%FS selectable
Stability Typical range:≤±0.5%FS/year
Operating temperature -40~+85°C/125°C/250°C selectable
Compensation temperature -40~+80°C/120°C
  transmitter sensor
Electrical performance 2 line 3 line 4 line
Output signal 4~20mA

0~5VDC

0~10VDC

0~20mA
Power supply 12~36VDC 12~36VDC 3~15Vdc
vibration/Impact 5-1000Hz amplitude 2mm axes X/Y/Z 30s output dispersion less than 0.1%F.S.
Electrical connection

DIN43650 Hirschmann connector(IP65)

Air plug

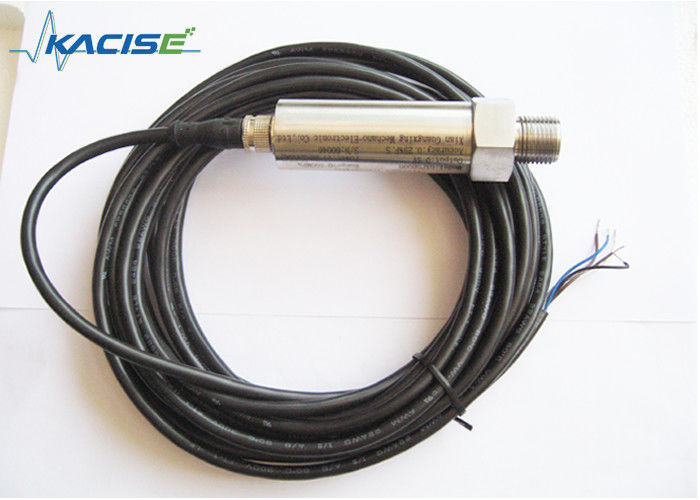

Fixed cable(IP67)

Pressure port M20×1.5,M16×1.5,9/16-18UNF or customized
