Product Details:
Place of Origin: China (Mainland)
Brand Name: Kacise
Model Number: K-JSJ-500
Payment & Shipping Terms:
Minimum Order Quantity: 1ps
Price: Negotiable
Packaging Details: each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time: 5-8 work day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal
Supply Ability: 1000 Pieces per Week
Contact Now
Detailed Product Description
Type: K-JSJ-500 Input Voltage: 10~30 VDC
Input Current: ≤20mA Output Mode: 4~20 MA
Range: ±100 G Bandwidth: ≤ 400 Hz
Sensitivity: 0.08±0.02 MA / G Axial Direction: Z
Temperature: -40℃~+70℃ Storage Temperature: -40℃~+150℃
High Light:

linear acceleration sensor

,

triaxial acceleration sensor

10~30 VDC 4~20mA High Reliability and g Value Uniaxial Accelerometer Sensor Module



1. Product Description



An instrument for measuring acceleration, typically that of an automobile, ship, aircraft, or spacecraft, or that involved in the vibration of a machine, building, or other structure.It has functions of  analog voltage output, small size, light weight, wide measuring range, impact resistance, vibration performance.



Accelerometer, also known as Acceleration Sensor, is used to measure the force of the accelerated motion. Usually it is represented with the relative ratio of the acceleration of gravity(G). The accelerometers combined with the industry-leading iMEMS technology have the characteristic of high stability, small size, low weight, instantaneous startup, etc. They can be used vibration measurement and static acclivitous angle measurement.



High Reliability Accelerometer Sensor Module 4 - 20mA Impact Resistance 0









2.Parameter



Type K-JSJ-500
Electric character
Input voltage 10~30 VDC
Input current ≤20mA
Output Mode 4~20 mA
Performance index
Axial direction Z
Range ±100 g
Bandwidth ≤ 400 Hz



Sensitivity

0.08±0.02 mA / g
Resolution (°/s) 0.01 g
Nonlinear (%FS) ≤ 1% Fs
Bias 12±0.1 mA
Start-up time (ms) ≤1 s
Environmental characteristics
Temperature (°C) -40℃~+70℃
Storage Temperature -40℃~+125℃
Resistant to shock 4000g
Physical Characteristics
Weight (g) 45g

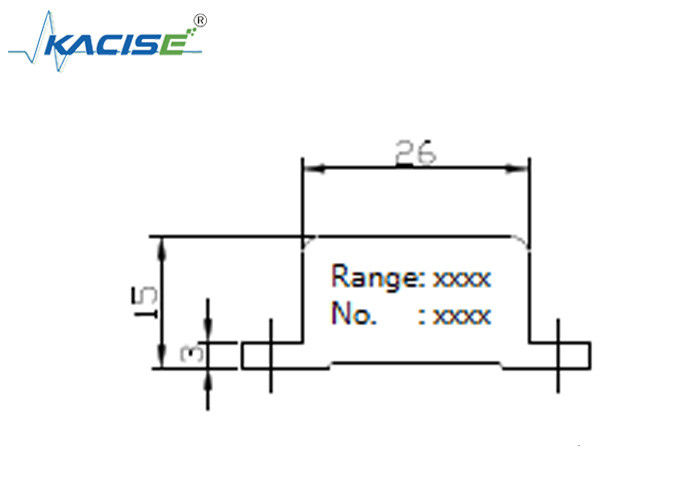

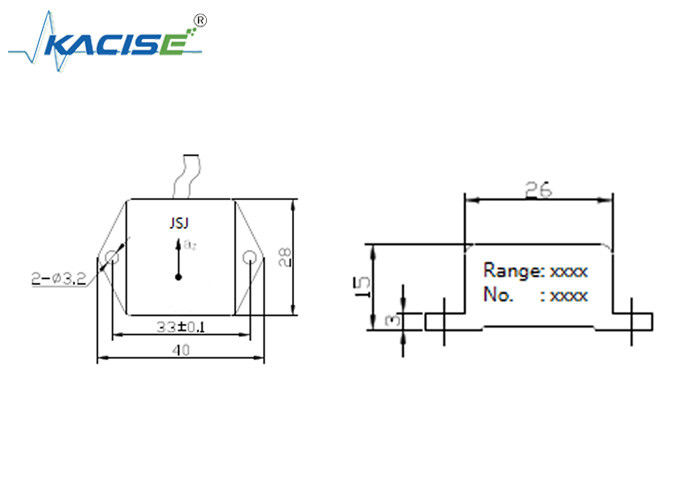

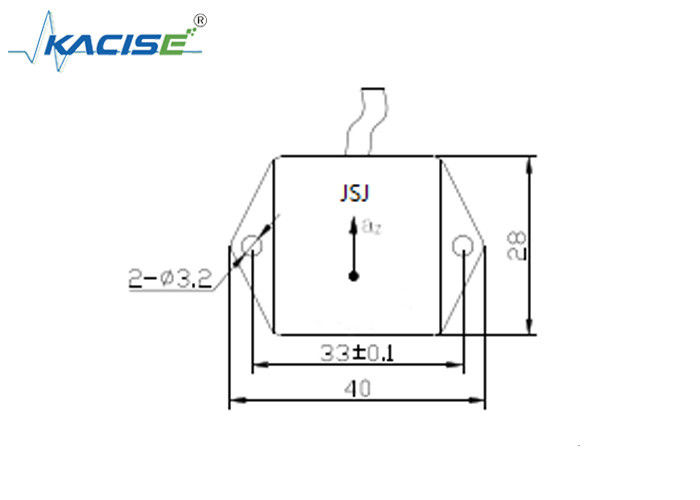

Dimensions 35×28×15 mm

High Reliability Accelerometer Sensor Module 4 - 20mA Impact Resistance 1High Reliability Accelerometer Sensor Module 4 - 20mA Impact Resistance 2



3. Feature



  • High g value and frequency response

  • Small size, light weight,

  • 4~20mA output

  • impact resistance, vibration performance





4. Application Field



  • Measure the overload value g

  • Linear acceleration measurement
