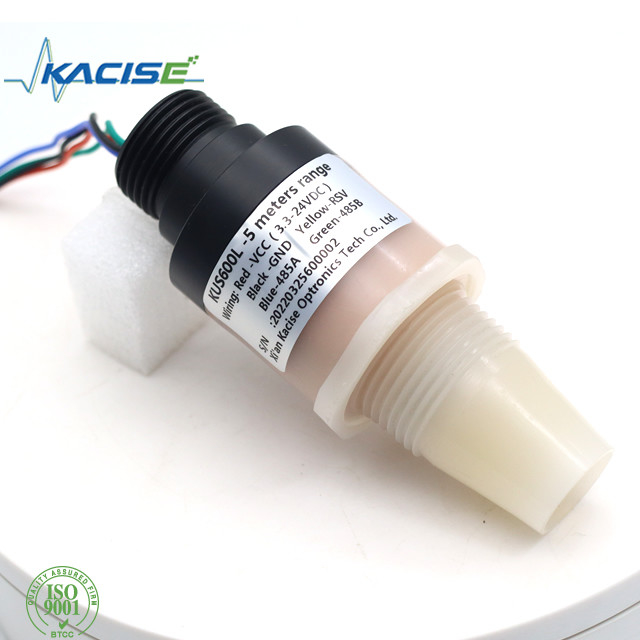

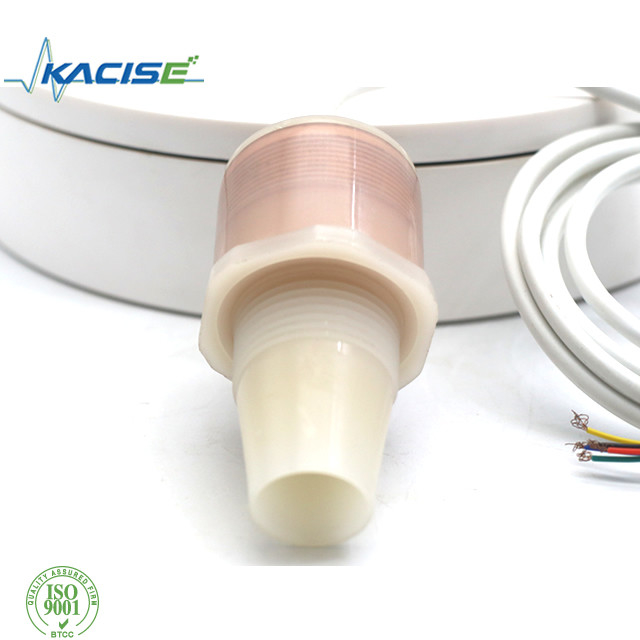

IP68 220kHz 3.3V Wireless Ultrasonic Transducer Probe

IP68 220kHz 3.3V Wireless Ultrasonic Transducer Probe

  • IP68 220kHz 3.3V Wireless Ultrasonic Transducer Probe
IP68 220kHz 3.3V Wireless Ultrasonic Transducer Probe
Product Details:
Place of Origin: China (Mainland)
Brand Name: Kacise
Model Number: KUS series
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Packaging Details: each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1000 Pieces per Week
Contact Now
Detailed Product Description
Product: Ultrasonic Distance Sensor Detection Range: 300mm~3000mm
Transducer Frequency: Approx. 220kHz Output: RS485 + 4-20mA/0-10V
Input Power: 3.3V~24V IP Grade: IP68
High Light:

Wireless Ultrasonic Transducer Probe

,

IP68 Ultrasonic Transducer Probe

,

3.3V Ultrasonic Distance Probe

KUS600B 3.3V input power RS485 output low consumption for wireless transmission ultrasonic distance transmitter



1. Electronic interface and signals definition

Cable color Pin description Note
Red 1 Power supply
Black 2 GND
  3 Analogue output The 600B will work in mode 1 or 0 cannot work in power save mode, if the 4-20mA , 0-3.3V 0-5V analogue output used..
  4 RS485A+
  5 RS485B-

2. Parameter

General specifications

600B



Sensing range 300... 3000 mm@3.3V power supply. The measure distance can reach 6 meters if the power supply is 24V.
Adjustment range 300….3000mm
Unusable area 0 ... 300 mm
Standard target plate 100 mm x 100 mm
Transducer frequency approx.220 kHz
Response delay approx. 10 ms



Electrical specifications



Operating voltage UB 3.3 ... 24 V DC , ripple 10 %SS
No-load supply current I0 ≤ 20 mA active period ≤0.3mA during sleep time


3. Dimensions

IP68 220kHz 3.3V Wireless Ultrasonic Transducer Probe 0




4. Installation conditions
If the sensor is installed at the environment temperature fall below 0℃,It should do well on the protective measures. In case of direct mounting of the sensor in a through hole using the steel nuts, it has to be fixed at the middle of the housing thread.



5. Ordering information

GXUS Body size OUTPUT Max range Description
  600B
Customized Customized
  4-20mA 4-20mA mode output with RS485 MODBUS protocol
0-3.3V The power supply range is 3.3 at least
0-5.0V The power supply range is 5.0 at least
RS485 Power save mode with RS485 MODBUS protocol
    XXX mm Xxx mm is the maxim range can be detected, the default length is 1 meter


IP68 220kHz 3.3V Wireless Ultrasonic Transducer Probe 1
