Precise Measurement Coriolis Mass Flow Meter For Chemical High Accuracy

Precise Measurement Coriolis Mass Flow Meter For Chemical High Accuracy

  • Precise Measurement Coriolis Mass Flow Meter For Chemical High Accuracy
  • Precise Measurement Coriolis Mass Flow Meter For Chemical High Accuracy
Precise Measurement Coriolis Mass Flow Meter For Chemical High Accuracy
Product Details:
Place of Origin: China (Mainland)
Brand Name: Kacise
Certification: certificate of explosion-proof, CE
Model Number: KFM
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time: 5-8 work days
Payment Terms: L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability: 1000 Pieces per Week
Contact Now
Detailed Product Description
Type: KFL Product: Mass Flow Meter
Power Supply: Standard 220VAC Or 24V Product Name: Coriolis Mass Flow Meter
Type: Coriolis Flow Meter Usage: Milk Flow Meter
High Light:

coriolis flow meter

,

coriolis type mass flow meter

Coriolis Mass Flow Meter For Chemical Big Discount Coriolis Mass Flow Meter Price

Product Description

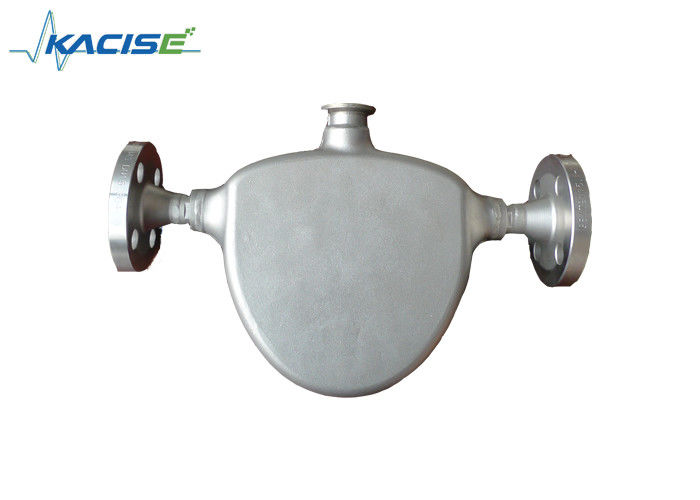

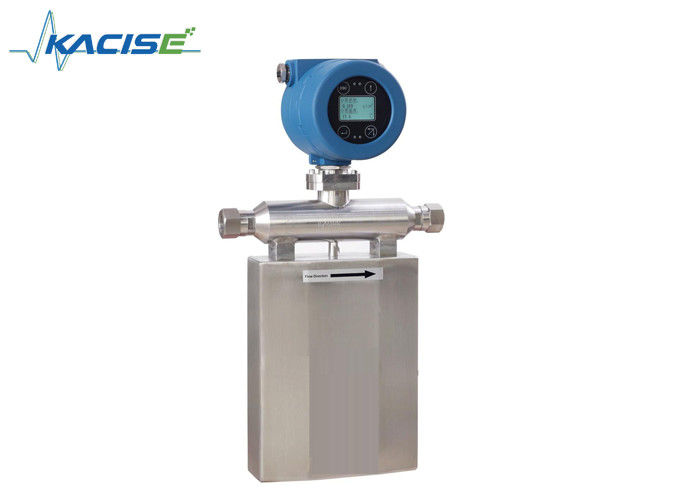

coriolis mass flow meter is a direct and precise measurement of fluid mass flow meter to the main structure of the novel, U shaped two side by side tube, make two tube bent parts to vibrate slightly, then straight on both sides of the vibration will follow, that they will also close or open at the same time, the two vibration tube is synchronous, symmetrical.

If the pipe is synchronized with the vibration, the fluid is introduced into the tube to move forward along the pipe, and the pipe will force the fluid to vibrate up and down

Advantage

coriolis mass flow meter for direct measurement of mass flow measurement accuracy is very high.

a wide range of fluid can be measured, including a variety of high viscosity liquid, containing solids slurry, containing trace amounts of liquid gas, there is a high density of medium and high pressure gas

The vibration amplitude of the measuring tube is small, and it can be regarded as a non moving part, and there are no obstacles and movable parts in the pipeline

It is not sensitive to the distribution of the velocity of the flow, so it is required for the upstream and downstream straight pipe section

The measured value is not sensitive to the viscosity of the fluid, and the change of fluid density has little effect on the value of the measurement

Multi parameter measurements can be made, such as the measurement density, and thus the concentration of the solute in the solution is derived

shortcoming

The zero drift of the zero point of the Coriolis mass flowmeter is the formation of the zero drift, which affects the further improvement of the accuracy, so that many models have to use the total error is divided into two parts, the basic error and zero instability

The Coriolis mass flowmeter cannot be used for the measurement of low density and low pressure gases. The gas content in the liquid exceeds a certain limit (depending on the model) which will significantly affect the measured value

coriolis mass flow meter is sensitive to external vibration interference. In order to avoid the influence of pipeline vibration, most of the flow sensors of the mass flowmeter of the Coriolis type are installed and fixed

Can not be used for large diameter, is still limited to 150 (200) mm below

The measurement of the inner wall of the tube will affect the accuracy of the measurement, especially for the coriolis mass flow meter of the thin-walled tube

High pressure loss, and volume meter, some models of Coriolis mass flowmeter and specific volume meter 100%.

Most of the Coriolis coriolis mass flow meter are larger in weight and volume

The price is very expensive. The price of foreign countries is 5000 to $10000. It is about 2 to 5 times of the same caliber electromagnetic flowmeter, and the domestic price is about 2 ~ 8 times of the electromagnetic flowmeter



flow meter coriolis

flow meter coriolis



Dimensions of large - scale instrument







Model

Weld Neck Flanges-ANSI B16.5





A





B





C





E





F





W





G





K





d





D

DN LB
KMF-1-6c 100 150 670 510 740 858 1092 260 19.1 190.5 157.2 228.6
KMF-1-6CD 125 150 670 510 740 858 1092 260 22.4 215.9 185.7 254
KMF-1-6D 150 150 860 670 950 1130 1370 280 22.4 241.3 215.9 279.4



flow meter coriolis



flow meter coriolis

flow meter coriolis

flow meter coriolis



flow meter coriolis

flow meter coriolis



Applied Range

flow meter coriolis

flow meter coriolis



Company Show

flow meter coriolis

flow meter coriolis

flow meter coriolis
