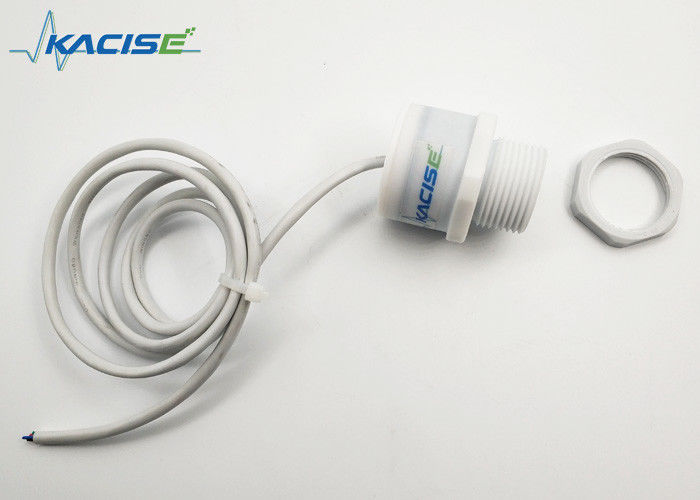

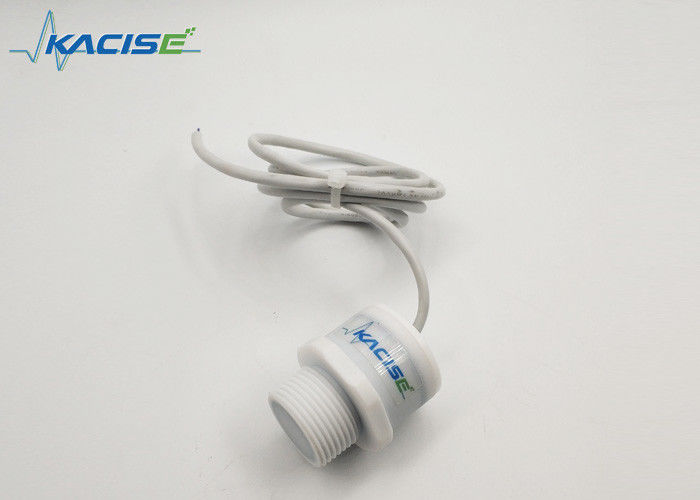

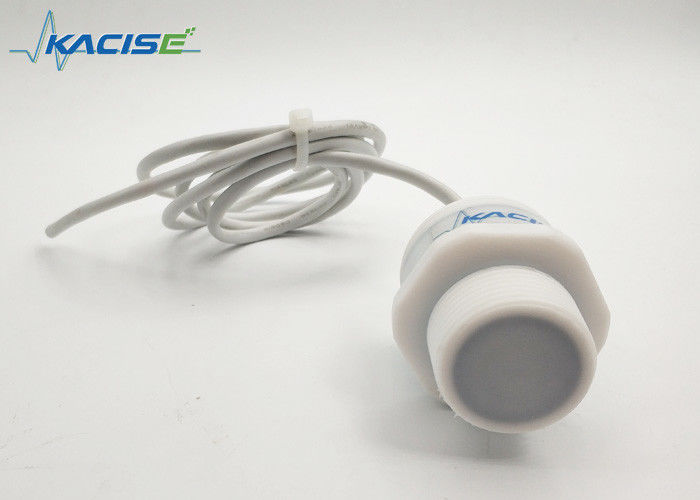

Precision Fluid Level Meter Ultrasonic Level Transmitter 200mm - 3000mm Detection Range

Precision Fluid Level Meter Ultrasonic Level Transmitter 200mm - 3000mm Detection Range

  • Precision Fluid Level Meter Ultrasonic Level Transmitter 200mm - 3000mm Detection Range
  • Precision Fluid Level Meter Ultrasonic Level Transmitter 200mm - 3000mm Detection Range
  • Precision Fluid Level Meter Ultrasonic Level Transmitter 200mm - 3000mm Detection Range
  • Precision Fluid Level Meter Ultrasonic Level Transmitter 200mm - 3000mm Detection Range
Precision Fluid Level Meter Ultrasonic Level Transmitter 200mm - 3000mm Detection Range
Product Details:
Place of Origin: china
Brand Name: kacise
Certification: iso9001
Model Number: KUS550
Payment & Shipping Terms:
Minimum Order Quantity: 0-100
Price: Negotiable
Packaging Details: carton or customers requests available
Delivery Time: 10 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 3000 Piece/Pieces per Month
Contact Now
Detailed Product Description
Detection Range: 200mm-3000mm Response Time: <50ms
Beam Angle: 7° ± 2 IP Grade: IP65
Operating Voltage: 24VDC Output: Digital Output RS485 Anaolue Output 0-5V Switch Output 0V /5V
High Light:

ultrasonic level transmitter

,

ultrasonic liquid level sensor

Easy install Low power NBiot wireless PVDF Material ultrasonic level transmitter





1.Product Description



This sensor provides very short to long-range detection and ranging, in a compact, robust PVC housing,
designed to meet IP65.



2. Product features:

  • Designed for outdoor or indoor environments
  • High sensitivity
  • Free run operation can continually measure and output ranger information
  • Sensor beam angle is 7 degrees

3. Parameter



General Parameters Mechanical Parameter
Detection Range 200mm-3000mm Connection 5 Pin Cable
Transducer Frequency 125KHz Weight 100g
Repeatability Precision ≤1% IP Grade IP65
Response Time <50ms
Beam Angle 7° ± 2
Temp. Compensation Inside/outside/fix temp.
Electrical Parameters
Operating Voltage 24VDC
Limit Working Voltage 13VDC-30VDC
Power Consumption ≤30mA
Circuit Protection short-circuit protection, overload protection
Output Digital Output RS485
Anaolue Output 0-5V
Switch Output 0V /5V
Ambient Environment
Operating Ambient Temp. 0-70°C (-40-85°C, -55-125°C, etc, customizable )
Storage Temperature -40-125°C



4.Dimensions



Anti Corrosion Chemical Liquid Measurement / NPT PTFE Ultrasonic Level Sensor



5.Wiring



Anti Corrosion Chemical Liquid Measurement / NPT PTFE Ultrasonic Level Sensor



6.Application

  • Tank level measurement
  • Bin level measurement
  • Proximity zone detection
  • People detection
  • Robot ranging sensor
  • Autonomous navigation
  • Multi-sensors navigation
  • Distance measuring
  • Long range object detection
  • Industrial automation
