|Place of Origin:||China (Mainland)|
|Certification:||certificate of explosion-proof, CE|
|Minimum Order Quantity:||1pcs|
|Packaging Details:||each unit has individual box and all boxes are packed in standard packages or customers requests available|
|Delivery Time:||5-8 work days|
|Payment Terms:||L/C, D/A, T/T, D/P, Western Union, MoneyGram|
|Supply Ability:||1000 Pieces per Week|
|Type:||KFL||Product:||Mass Flow Meter|
|Power Supply:||Standard 220VAC Or 24V||Product Name:||Coriolis Mass Flow Meter|
coriolis flow meter,
coriolis type mass flow meter

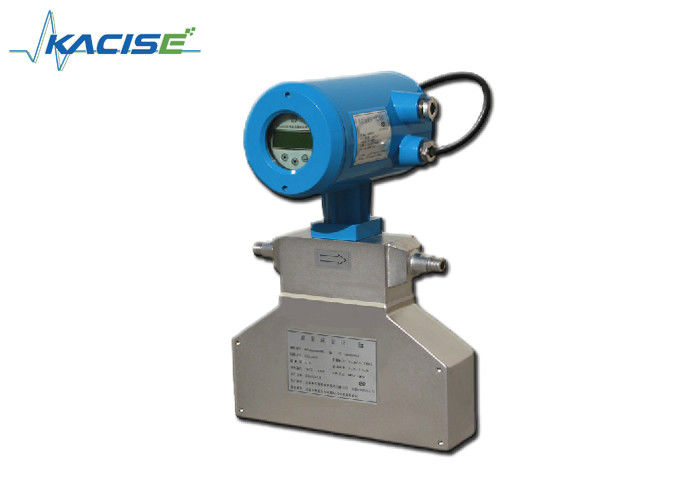

Process control Coriolis flow meter I mass flowmeter I Coriolis meter
coriolis mass flow meter is a direct and precise measurement of fluid mass flow meter to the main structure of the novel, U shaped two side by side tube, make two tube bent parts to vibrate slightly, then straight on both sides of the vibration will follow, that they will also close or open at the same time, the two vibration tube is synchronous, symmetrical.
If the pipe is synchronized with the vibration, the fluid is introduced into the tube to move forward along the pipe, and the pipe will force the fluid to vibrate up and down
coriolis mass flow meter for direct measurement of mass flow measurement accuracy is very high.
a wide range of fluid can be measured, including a variety of high viscosity liquid, containing solids slurry, containing trace amounts of liquid gas, there is a high density of medium and high pressure gas
The vibration amplitude of the measuring tube is small, and it can be regarded as a non moving part, and there are no obstacles and movable parts in the pipeline
It is not sensitive to the distribution of the velocity of the flow, so it is required for the upstream and downstream straight pipe section
The measured value is not sensitive to the viscosity of the fluid, and the change of fluid density has little effect on the value of the measurement
Multi parameter measurements can be made, such as the measurement density, and thus the concentration of the solute in the solution is derived
The zero drift of the zero point of the Coriolis mass flowmeter is the formation of the zero drift, which affects the further improvement of the accuracy, so that many models have to use the total error is divided into two parts, the basic error and zero instability
The Coriolis mass flowmeter cannot be used for the measurement of low density and low pressure gases. The gas content in the liquid exceeds a certain limit (depending on the model) which will significantly affect the measured value
coriolis mass flow meter is sensitive to external vibration interference. In order to avoid the influence of pipeline vibration, most of the flow sensors of the mass flowmeter of the Coriolis type are installed and fixed
Can not be used for large diameter, is still limited to 150 (200) mm below
The measurement of the inner wall of the tube will affect the accuracy of the measurement, especially for the coriolis mass flow meter of the thin-walled tube
High pressure loss, and volume meter, some models of Coriolis mass flowmeter and specific volume meter 100%.
Most of the Coriolis coriolis mass flow meter are larger in weight and volume
The price is very expensive. The price of foreign countries is 5000 to $10000. It is about 2 to 5 times of the same caliber electromagnetic flowmeter, and the domestic price is about 2 ~ 8 times of the electromagnetic flowmeter
Dimensions of large - scale instrument
|Weld Neck Flanges-ANSI B16.5||
1.Are your product brand-new and original?
Q:Yes,coriolis mass flow meter,100% brand-new and original products.
2.Can you provide OEM service?
Q:Of course, we have 4 years of industry experience, and have got good reputation all over the world. With professional R&D team, we can provide satisfactory OEM service according to customer demand.
3.How long is the quality guarantee for your products?
Q:All our products with 1 year warranty.
4.Do you have after-sales service? Is there any warranty?
Q:Yes, we provide after-sales service for all our products. As long as there is problem with the product itself, you can return to us for testing; if it is true, you can return for a replacement and we will response for freight and repair cost. All our products with 1 year warranty.
5.What about your after-sales service?
Q:We have patient service team and experienced technical engineers to support.
6.What are your terms of payment?
Q:Generally through TT, western union and PayPal.
7.What about shipment?
Q:We have DHL and TNT forwarder with competitive price, of course, customers can also use their own freight forwarders.
8.General when do the customers arrange payment?
Q:For orders without stock, 30% deposit and the balance payment before delivery; for orders with stock, payment should be arranged once.
9.When will you delivery the goods?
Q:With stock, we will arrange delivery in about 3 to 5 days; without stock, it will take relatively long time, but it won’t be too long, it mainly depends on order quantity.
10.What about your sincerity to cooperate with clients?
Q:Good faith transaction, mutual benefit and reciprocity.
