RS232 High Precision Electronic Gyroscope Sensor Single Axial For Inertial Navigation

RS232 High Precision Electronic Gyroscope Sensor Single Axial For Inertial Navigation

  • RS232 High Precision Electronic Gyroscope Sensor Single Axial For Inertial Navigation
  • RS232 High Precision Electronic Gyroscope Sensor Single Axial For Inertial Navigation
RS232 High Precision Electronic Gyroscope Sensor Single Axial For Inertial Navigation
Product Details:
Place of Origin: Shaanxi, China (Mainland)
Brand Name: KACISE
Model Number: FOG230GX
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece/Pieces
Price: Negotiable
Packaging Details: carton or customers requests available
Delivery Time: 5 working days after payment
Payment Terms: L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 1000 Piece/Pieces per Week negotiable
Contact Now
Detailed Product Description
Range: ±80°/s The Bias Stability: <0.3°/h
Working Temperature: -40℃~+70℃ Power Supply: 7.4V Or ±5V
Dimension: φ150×31mm Weight: <750g
High Light:

mems gyroscope sensor

,

gyroscope sensor module

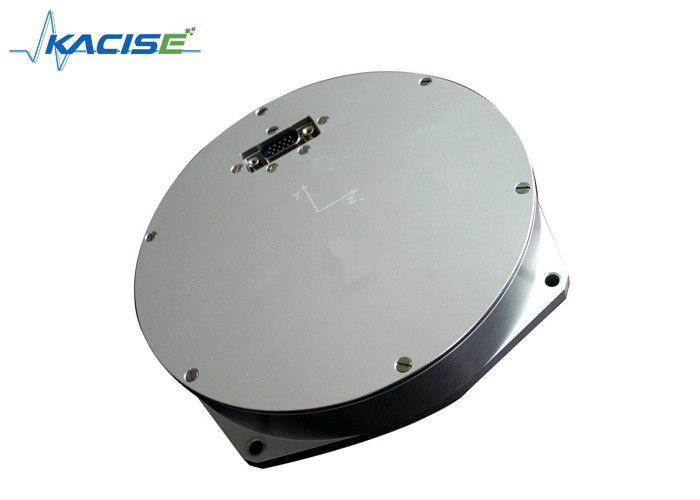

RS232 High Precision φ150 Single-axial Fiber Optic Gyroscope FOG230GX


Composition principle



FOG230GX Single -axial FOG is based on Sagnac effect, formed by optical fiber ring of interferometer type angular velocity measuring device. It integrate is a set of optical, mechanical, electronic integration of all solid state Inertial sensor, which can be extended to the inertial measurement unit.


Feature



With high accuracy, short start-up time, large dynamic range, high reliability, long life span features.


Application fields



This kind of gyroscope was successfully used in Railway measurement, inertial navigation, mobile communications and other fields.



Technical Specifications



Range ±80°/s
The bias stability (1σ) <0.3°/h
The scaling factor repeatability <150ppm
Working temperature -40℃~+70℃
Bandwidth >100Hz
Power supply 7.4V or ±5V
Dimension φ150×31mm
Weight <750g
Output structure RS232
