Titanium Alloy Fluid Level Meter Transmitter Two / Three Wire For Submersible Marine

Titanium Alloy Fluid Level Meter Transmitter Two / Three Wire For Submersible Marine

  • Titanium Alloy Fluid Level Meter Transmitter Two / Three Wire For Submersible Marine
  • Titanium Alloy Fluid Level Meter Transmitter Two / Three Wire For Submersible Marine
Titanium Alloy Fluid Level Meter Transmitter Two / Three Wire For Submersible Marine
Product Details:
Place of Origin: China (Mainland)
Brand Name: Kacise
Certification: ATEX
Model Number: GXPS460
Payment & Shipping Terms:
Minimum Order Quantity: 0-100
Price: Negotiable
Packaging Details: each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time: 5-8 work day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal
Supply Ability: 1000 Pieces per Week
Contact Now
Detailed Product Description
Pressure Range: 0~1……100mH2O Overload Pressure: 2 Times Span Of Nominal Value
Secondary Containment: 4 Times Span Of Nominal Value Accuracy: ±0.5%F.S
Operating Temperature: –20℃~70℃ Compensation Temperature: –20℃~70℃
Output Signal: 4~20mA Power Supply: 10~36Vdc
Stability: 0.25%F.S/year Medium: All Kinds Of Sea Water
High Light:

ultrasonic fluid level sensor

,

ultrasonic liquid level sensor

Two / Three wire Submersible Marine Titanium Alloy Liquid Level Transmitter



1. Product Description





GXPS460 series level transmitter is a highly reliable, high stability, high accuracy, the whole temperature digitized compensation level transmitter is designed for all kinds of sea water measurement design.

Oil-filled core and shell of the products used in all the titanium alloy structure, long-term safe use in -20 ℃ ~ 70 ℃ seawater, the latest digitized compensation to ensure the accuracy of the temperature region does not decrease or loss of, computer interface to its zero and full scale calibration can also be externally programmed adjustment of zero and span.

Abrasion, oil, acid and alkali resistant, high-strength special breathable cable can be used depending on site configuration.



2. Parameter



Pressure range: 0~1….100mH2O/–1bar~0~100bar/ 0~980Kpa
Over pressure safe: 2times span of nominal value Secondary Containment: 4times span of nominal value
Operating temperature: –20℃~70℃ Compensated temperature: –20℃~70℃
Accuracy: ±0.5%F.S Stability: 0.25%F.S/year
Output signal: 4~20mA Power supply: 10~36Vdc
Load voltage: (U-10)/0.02(Ω) Minimum isolation between case and terminations: >100M Ω@50V
Medium: all kinds of sea water Protection: IP68
Pressure type: G, A Certificate: ATEX
EMI/EMC: EN50081-1/-2; EN50082-2



Mode of connection
Two wire Red 24V, blue 4~20mA, yellow shielded
Three wire Red 24V, blue out, black 24V, yellow shielded



Output signal
Two wire 4~20mA
Three wire 0/1~5V, 0~10V, 0/4~20mA



3.  Feature



  • Accuracy: ±0.25, ±0.5%F.S
  • The whole temperature range to ensure accuracy
  • Titanium alloy oil filled core body
  • Heat resistant, resistant to strong acid
  • Antimicrobial mucous corrosion
  • Various of measuring range and signal output
  • Non polarity two wire system current output
  • Digital calibration

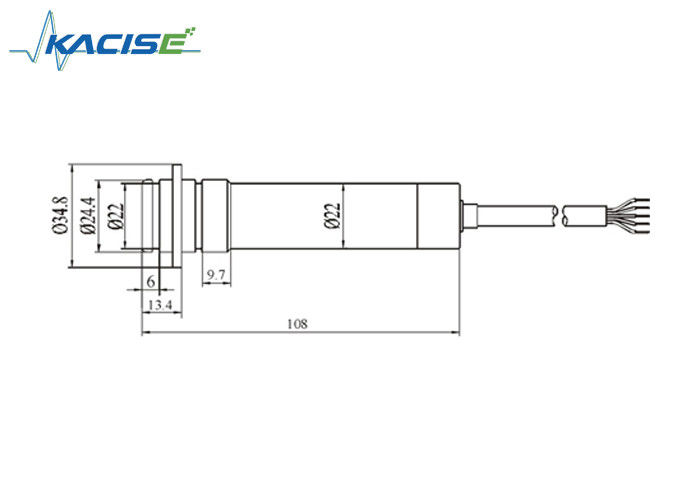

Titanium Alloy Fluid Level Meter Transmitter Two / Three Wire For Submersible Marine 0



4. Application Field



  • Sea water measurement
  • Draft marks detection
  • With corrosive media
  • Thermal boiler
  • Chemical experiment
  • Higher temperature field
  • Harbor wharf depth
  • Sea bridge altitude measurement



Titanium Alloy Fluid Level Meter Transmitter Two / Three Wire For Submersible Marine 1
