Ultrasonic Non Contact Clamp On Flow Meter Wall Type For Liquid Flow Measure

Ultrasonic Non Contact Clamp On Flow Meter Wall Type For Liquid Flow Measure

  • Ultrasonic Non Contact Clamp On Flow Meter Wall Type For Liquid Flow Measure
  • Ultrasonic Non Contact Clamp On Flow Meter Wall Type For Liquid Flow Measure
Ultrasonic Non Contact Clamp On Flow Meter Wall Type For Liquid Flow Measure
Product Details:
Place of Origin: China (Mainland)
Brand Name: Kacise
Certification: certificate of explosion-proof, CE
Model Number: KUFS2000 Series
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time: 5-8 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal
Supply Ability: 1000 Pieces per Week
Contact Now
Detailed Product Description
Accuracy: ±1% Interface: RS485, Support MODBUS
Pipe Size: DN15~DN6000 Type Of Liquid: Water, Sea Water, Waste Water, Oil, Chemicals (alcohol, Acids, Etc.), Plant Effluent And Other Liquids
Temperature: - 30~160℃ Power Supply: DC8~36V Or AC85~264V
High Light:

portable clamp on flow meter

,

ultrasonic flow transducer

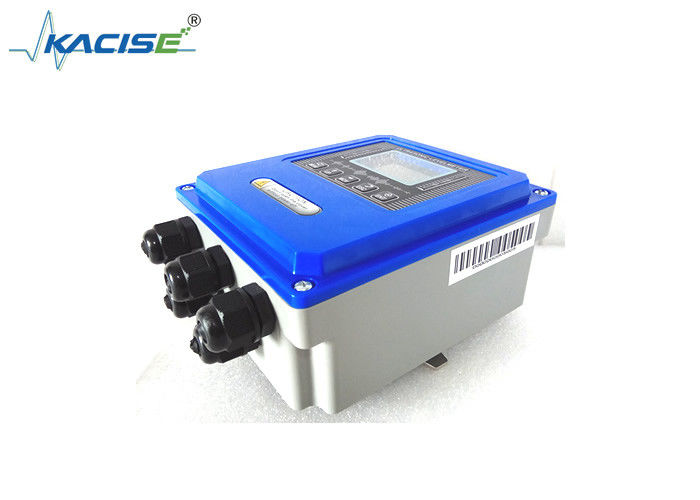

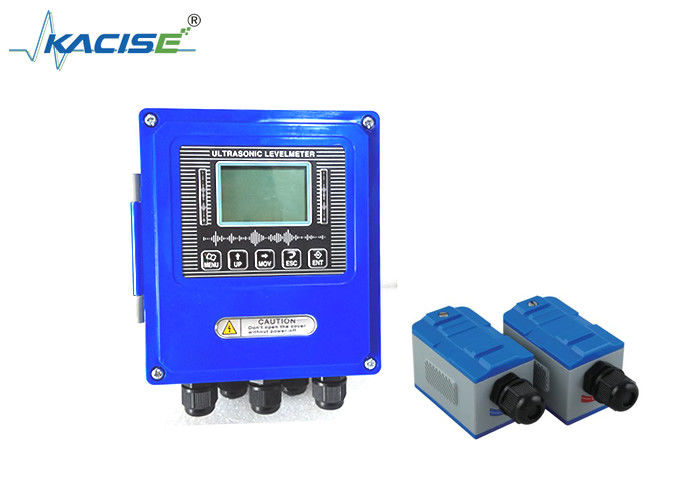

Wall Type Ultrasonic Flowmeter With Non Contact Clamp On Sensor For Liquid Flow Measure





Introduction

The KUFS2000 series ultrasonic flow meter can be installed on the wall or in instrument box, suitable for pipe sizes from DN25mm to DN6000mm.



Features

High accuracy

1%

Wide range of flow rate and pipe diameter

Suitable for the pipe with DN15 to DN6000

High reliability

Working life is up to 10 years

Robust design

Differential signal driver and receiver, immune to low frequency transformer and TV signal and transmission

Huge storage function

Support 512 days and 128 months and 10 years accumulated flow result, auto save 64 times power on and off time and flow rate. Auto save 32 days work status of the meter

Remote transmission and net work transmission

RS485 interface support Mod-bus protocol and easy to support GPRS or Zigbee networking

Easy to used for calorimeter

Can be used as calorimeter after the temperature sensor is installation

Basic Parameters

Accuracy ±1%
Velocity Range 0~±10m/s, Bi-directional measurement
Pipe Size DN15~DN6000
Temperature - 30~160℃
Type of Liquid Single liquid can transmit sound wave. such as water, sea water, sewage, oil, chemicals , alcohol, etc
Pipe Material Carbon steel, stainless steel 304, stainless steel 316. Flange standard GB/T9119-2000, GB/T81-94
Signal Output

1 way 4-20mA output(impedance 0~1K, accuracy 0.1%) 1 way OCT pulse output( Pulse width 6 ~ 1000ms)

1 way relay output

Signal Input 3 way 4-20mA input, achieve to heat measurement by connecting PT100 platinum resistor.
Interface RS485, support MODBUS
Data Storage SD card regularly store the pre-set results (optional)
Power Supply DC8~36V or AC85~264V



Sensor selection

Sensor selection depend on the application field parameters such as the diameter of the pipe the fix method
the kind of the flow, please refer to the fix method choice chapter for details.



Ultrasonic Non Contact Clamp On Flow Meter Wall Type For Liquid Flow Measure 0





Ordering information



Ultrasonic Non Contact Clamp On Flow Meter Wall Type For Liquid Flow Measure 1



Ultrasonic Non Contact Clamp On Flow Meter Wall Type For Liquid Flow Measure 2
