Water / Fuel Ultrasonic Flow Meter High Accuracy Contact / Non Contact

Water / Fuel Ultrasonic Flow Meter High Accuracy Contact / Non Contact

  • Water / Fuel Ultrasonic Flow Meter High Accuracy Contact / Non Contact
  • Water / Fuel Ultrasonic Flow Meter High Accuracy Contact / Non Contact
Water / Fuel Ultrasonic Flow Meter High Accuracy Contact / Non Contact
Product Details:
Place of Origin: China
Brand Name: KACISE
Certification: CE
Model Number: KUF2000 Series
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: one carton for one set
Delivery Time: 3-5 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000 sets per month
Contact Now
Detailed Product Description
Power Supply: DC8~36V Or AC85~265V Or Battery Signal Output: 4-20mA, OCT Pulse, Relay
Pipe Diameter: DN15~6000mm Communication: RS485 Modbus
Medium: Water, Sea Water, Waste Water, Oil, Chemicals (alcohol, Acids, Etc.), Beverage (beer, Wine, Etc.)... Pipe Material: Steel, Stainless Steel, Cast Iron, Copper, Cement Pipe, PVC, Aluminum, Glass Steel Product, Liner Is Allowed
High Light:

ultrasonic flow transducer

,

ultrasonic liquid flow meter

Contact And Non Contact Water / Fuel / Water Flow Transmitter For Ultrasonic Flowmeter





Parameters

















Host part

Principle Ultrasonic time gap
Accuracy ±1%
Display 2×20 character LCD with backlight



Signal output

1 way 4~ 20mA output, electric resistance 0~ 1K,accuracy0. 1%
1 way OCT pulse output( Pulse width 6 ~ 1 0 0 0 ms,default is 2 0 0 ms)
1 way Relay output



Signal input

3 way 4~ 20mA input, accuracy 0. 1%,acquisition signal such as temperature, press and liquid level
Connect the temperature transducer Pt100, can finish the heat/energy measurement
Data interface Insulate RS485 serial interface, upgrade the flow meter software by computer, support the MODBUS, METER-BUS etc.
Cable

Twisted-pair cable, generally, the length under 50 meters;

Select the RS485 communication. The transmission distance can over 1000m.





Pipe Condition

Pipe material Steel, Stainless steel, Cast iron, Copper, Cement pipe, PVC, Aluminum, Glass steel product, liner is allowed.
Pipe Diameter DN15~6000mm
Straight length pipe Transducer installation should be satisfied: upstream10D, downstream 5D, 30D from the pump.





Medium

Type of Liquid Water, sea water, waste water, oil, chemicals (alcohol, acids, etc.), plant effluent and other liquids
Temperature -30~160°C
Turbidity 10000pm not so much bubbles
Flow speed 0~±10m/s
Environment Temperature Host: -20~60°C; Sensor: -30~160°C
Humidity Host: 85%RH; Flow sensor: IP68, less than 2m under water
Power supply DC8~36V or AC85~265V or Battery
Consumption

1.5W





Water / Fuel Ultrasonic Flow Meter High Accuracy Contact / Non Contact 0



Introduction

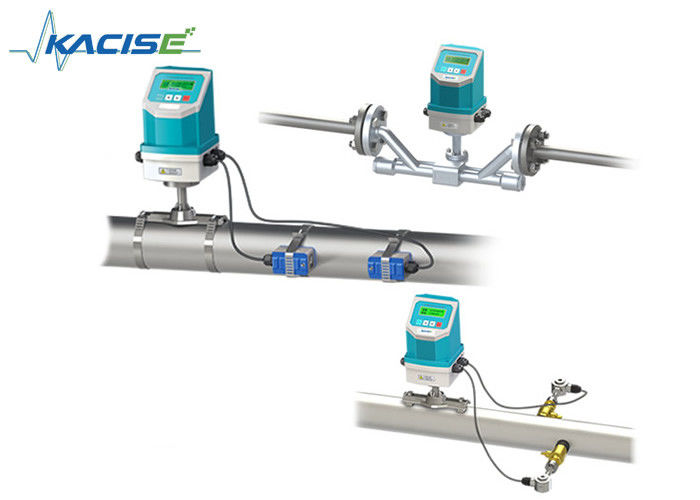

KUF2000 series ultrasonic water flow meter usually is used in long-term measurement at field. It has three types of sensor to measure the pipe flow: clamp on type, insertion type and inline pipe type. And it can measure heat if add temperature sensor. SD card is optional to save large quantity of data.



Clamp on type: The sensors clamp on to the outside of pipes and do not come in contact with the internal liquid. And all the models can become energy meters when connecting to temperature sensors. KUF2000 Series Clamp On Ultrasonic Flowmeter is easy for installation, no need to cut off the pipe and water, no press loss. It support measuring online long-term. Wide range of liquid flow can be measured with the sensor clamped on the pipe.

Inline pipe type: DN15-32mm pipes uses π shape inline pipe sensor, DN40 and above uses standard inline pipe sensor. The inline sensors has the advantages of low starting flow rate, high measurement accuracy and no pressure loss.

Insertion type: Only two installation holes are needed on the pipe, user can install the insertion type sensors. By using the hole making tool, the no stop flow installation can be realized. Sensors contact to the fluid directly, the measurement is stable and reliable.



Sensor Selection



Water / Fuel Ultrasonic Flow Meter High Accuracy Contact / Non Contact 1



Optional Temp. sensor



Water / Fuel Ultrasonic Flow Meter High Accuracy Contact / Non Contact 2



Optional Host



Water / Fuel Ultrasonic Flow Meter High Accuracy Contact / Non Contact 3







Ordering Infomation



Water / Fuel Ultrasonic Flow Meter High Accuracy Contact / Non Contact 4
