| Place of Origin: | China (Mainland) |
| Brand Name: | KACISE |
| Model Number: | KUM |
| Minimum Order Quantity: | 0-100 |
|---|---|
| Price: | USD 50-180 |
| Packaging Details: | Carton or customers requests available |
| Delivery Time: | 5 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000 Piece/Pieces per Week ultrasonic sensor distance 10 meter |
| Accuracy: | ±0.5%~1% | Range: | Max. 70m |
|---|---|---|---|
| Output: | 24VDC, 220VAC, Battery | Medium: | Liquid (fuel, Oil, Water, Juice, Milk, Beer, Wine, Etc.) |
| Display: | Chinese And English LCD | Communication Port: | RS485,RS232 ( Optional ) |
| High Light: | ultrasonic level transmitter,ultrasonic liquid level sensor |
||

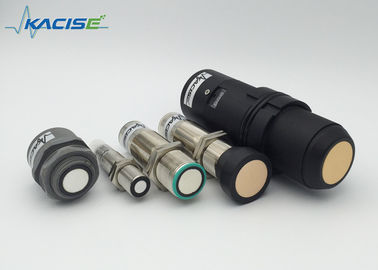

Ultrasonic Digital And Analog Ultrasonic Liquid Water Fuel Level Sensor
Introduction of KUM Series Intelligent Ultrasonic Level Meter
KUM ultrasonic level (material place,liquid level) meter,is a non-contact, high reliability, cost-effective, easy to install and maintain level measurement instruments. It does not have to contact medium and it can meet most of the requirement of level measurement.
Parameters
|
Function |
Integral type |
Split type |
|
Measurement range |
5m,10m,15m,20m,30m,40m,50m,60m |
5m,10m,15m,20m,30m,40m,50m,60m |
|
Measurement accuracy |
0.5%~1% |
|
|
resolution |
3mm or 0.1%(The larger one is effective) |
|
|
display |
Chinese and English LCD |
Chinese and English LCD |
|
Analog output |
4wires4~20mA/510Ω load 2wires4~20mA/250Ω load |
4~20mA/510Ω load |
|
Relay output |
2 way AC 250V/8A or DC 30V/5A, programmable(optional) |
2 or 4 way AC 250V/ 8A or DC 30V/ 5A, programmable( optional ) |
|
Power supply |
24VDC(default) |
220V AC+15%@50Hz(default) |
|
Environment temperature |
Display instrument-20~+60℃, transducer-20~+80℃ |
Display instrument -20~+60℃, transducer-20~+80℃ |
|
Communication port |
RS485,RS232 ( optional ) |
|
|
Protocol |
Modbus-RTU |
|
|
Protection grade |
Display instrument IP65,transducer IP68 |
|
|
transducer cable |
no |
10m(default) can be ordered as need but cannot longer than 100m |
|
Transducer installation |
According to the range and transducer select |
According to the range and transducer select |
|
Probe type |
There are 6 type probes now and also there are 3 types under development. Type1:PVDF Type2:aluminium alloy Type3:ABS Type4: stainless steel 316 Type5: Teflon Type6:titanium alloy We suggest the customer describe the application field in detail, such as the media type, the pressure surrounded, the temperature and humidity. Our engineer will choose you the proper probe. |
|
| KUM-A Integral Type | KUM-B Split Type | KUM-E Explosion-proof Integral Type |
|
|
|
Xi'an Kacise is certified by ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof, etc. which assure our products are conform to the international standards.
We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. We have experienced technical and management personnel, through the efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider. And we are continuously trying to improve product quality.
Currently, Kacise sensor is already exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing. We regards “reasonable prices, efficient production time and good after-sales service” as our tenet, and hope to cooperate with more customers for mutual development.
1. Q: What information need to be provided to choose the suitable model?
A: Please provide us: application field, range , output signal, medium, power supply, so we can choose model and quote for you quickly.
2. Q: Are you a trade company or a manufacturer?
A: We are an ISO approved manufacturer specialized in level and flow measuring instruments.
OEM & ODM service are available. Welcome to visit us.
3. Q: What is your MOQ?
A: To start our cooperation, sample order is acceptable.
4. Q: What is your delivery date?
A: The delivery date is about 3-15 working days after receipt of payment.
5. Q: What is your payment terms?
A: We support T/T, PayPal and Trade Assurance.
For mass production order, it is 30% deposit in advance and 70% balance before shipment.
6. Q: What is Trade Assurance payment method:
A: It’s a free service which can protect your orders from payment to delivery.
And we now have USD104,000.00 of caution money to assure your orders.
7. Q: Do you have a warranty?
A: Yes, we have the warranty of 12 months.
