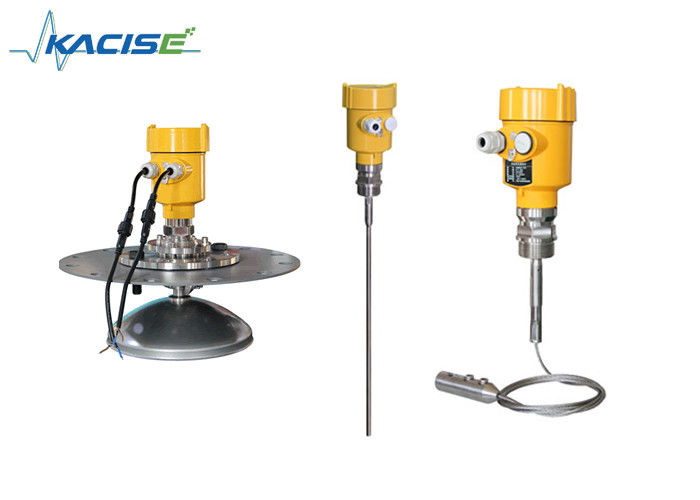

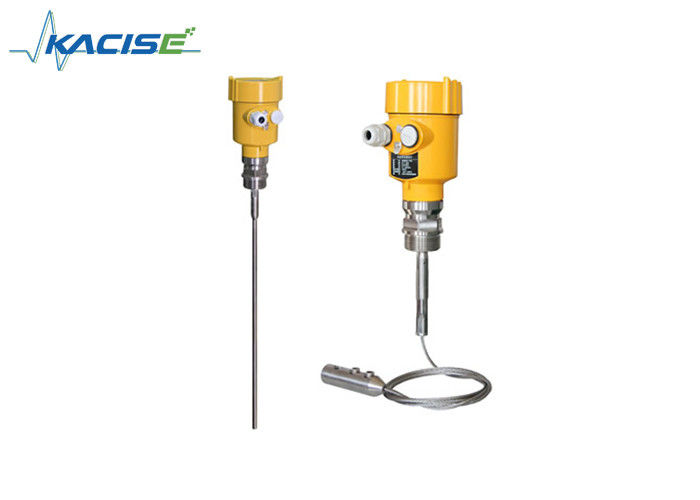

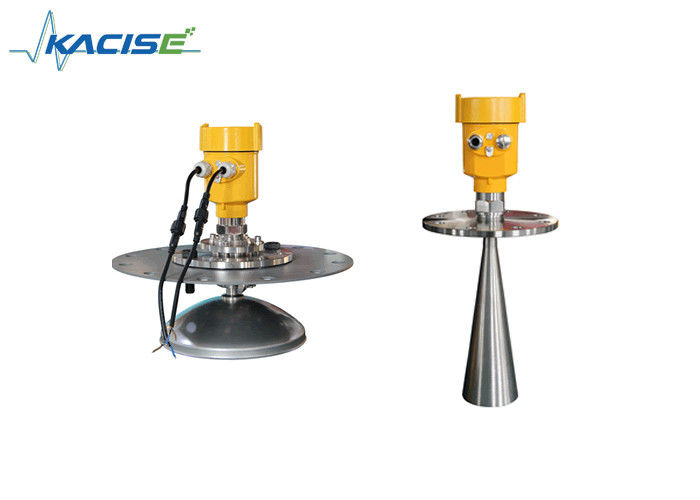

4-20mA / HART KLD70 series microwave radar sensor module of Level Meter

4-20mA / HART KLD70 series microwave radar sensor module of Level Meter

  • 4-20mA / HART KLD70 series microwave radar sensor module of Level Meter
  • 4-20mA / HART KLD70 series microwave radar sensor module of Level Meter
  • 4-20mA / HART KLD70 series microwave radar sensor module of Level Meter
  • 4-20mA / HART KLD70 series microwave radar sensor module of Level Meter
4-20mA / HART KLD70 series microwave radar sensor module of Level Meter
Product Details:
Place of Origin: China (Mainland)
Brand Name: KACISE
Model Number: KLD70 series
Payment & Shipping Terms:
Minimum Order Quantity: 0-100
Price: US $440-1,360 / Pieces
Packaging Details: Carton or customers requests available for the KLD70 series microwave radar sensor module of Level Meter
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 3000 Piece/Pieces per Month
Contact Now
Detailed Product Description
Measuring Range: 6~30m Accuracy: 5mm,10mm
Power Supply: Two-wire (DC24V), Four-wire(DC24V/AC220V) Output Signal: 4-20mA / HART
Temperature: (-200~400)℃ Item: KLD70 Series Microwave Radar Sensor Module Of Level Meter
Liquid Medium: Water, Sea Water, Sewage, Chemical Liquids, Bases, Oil, Sanitary/food-grade Liquids: Milk, Beer, Juice, Alcohol, Red Wine, White Wine, Iodine.
Oil Liquid: Gasoline, Diesel, Fuel, Palm Oil, Soybean Oil, Peanut Oil . Solid Medium: Powder, Granule , Corn, Beans, Bran, Wheat Husk, Coal Ash, Coal.
High Light:

ultrasonic fluid level sensor

,

ultrasonic level transmitter

KLD70 series microwave radar sensor module of Level Meter


Product Description

Introduction

KLD70 series microwave radar sensor module of Level Meter is suitable for liquid, paste, granule and block material level and non-contact measurement, suitable for changes in temperature, pressure big; there is an inert gas and volatile.The measurement method of microwave pulse, can work normally in the industrial frequency band range. The beam energy is low, can be installed on all kinds of metal, non-metallic container or pipe, no harm to human body and environment

Operation Principle

High-frequency microwave pulses issued by the guided wave radar propagate along detection components (steel cable or steel rod), met the media to be measured, since the dielectric constant of the mutation, cause reflections, a portion of the pulse energy is reflected back. Transmit pulse and the reflected pulse is proportional to the distance and the time interval measured media.

Features of guided wave radar
1).As a result of advanced microprocessor and unique echo processing technology, microwave radar sensor module of Level Meter can be used in a variety of complex conditions.
2).Because of the type of process connections and detection components, making KLD70 series microwave radar sensor module of Level Meter is suitable for a variety of complex conditions and applications. Such as: high temperature, high pressure and low dielectric constant media.
3).Pulsed work,  microwave radar sensor module of Level Meter instruments transmit power is very low, can be installed in a variety of metals, non-metallic container, no harm to humans and the environment.

Parameters

KLD701




Suitable for Medium: Liquid, solid powder

Application: Liquid and solid powder measure, complicated process conditions

Explosion-proof Grade:  Exia IIC T6 Ga/Exd ia IIC T6 Gb

Measuring Range: 30m

Frequency: 500MHz-1.8GHz

Antenna: Single cable or single rod antenna

Accuracy: ±10mm

Process Temperature:(-40~250)℃

Process pressure:(-0.1~4)MPa

Signal output:(4~20)mA/HART

The Scene Display: Four LCD/Can be programmed

Power Source: Two-wire (DC24V) Four-wire(DC24V/AC220V)

Shell: Aluminum /Plastic

Connection: Flange (optional) / Thread





KLD702




Suitable for Medium: Liquid with high corrosive

Application: Acids, bases or other corrosive media

Explosion-proof Grade:  Exia IIC T6 Ga/Exd ia IIC T6 Gb

Measuring Range:20m

Frequency: 500MHz-1.8GHz

Antenna: Full PTFE sealing cable type or rod antenna

Accuracy:±10mm

Process Temperature:(-40~200)℃

Process pressure:(-0.1~4)MPa

Signal output: (4~20)mA/HART

The Scene Display: Four LCD/Can be programmed

Power Source: Two-wire (DC24V) Four-wire(DC24V/AC220V)

Shell: Aluminum /Plastic

Connection: Flange (optional) / Thread



KLD703




Suitable for Medium: Solid powder

Application: Cement silo powder measure; Ash powder measure

Explosion-proof Grade:  Exia IIC T6 Ga/Exd ia IIC T6 Gb

Measuring Range:30m

Frequency: 500MHz-1.8GHz

Antenna: Double cable type antenna

Accuracy:±10mm

Process Temperature:(-40~150)℃

Process pressure:(-0.1~4)MPa

Signal output: (4~20)mA/HART

The Scene Display: Four LCD/Can be programmed

Power Source: Two-wire (DC24V) Four-wire(DC24V/AC220V)

Shell: Aluminum /Plastic

Connection: Flange (optional) / Thread



KLD704




Suitable for Medium: Liquids, particularly low dielectric constant liquid

Application:  Measuring deionized water,deoxygenated water and other liquids

Explosion-proof Grade:  Exia IIC T6 Ga/Exd ia IIC T6 Gb

Measuring Range:6m

Frequency: 500MHz-1.8GHz

Antenna: Coaxial tube type antenna

Accuracy:±5mm

Process Temperature:(-40~250)℃

Process pressure:(-0.1~4)MPa

Signal output: (4~20)mA/HART

The Scene Display: Four LCD/Can be programmed

Power Source: Two-wire (DC24V) Four-wire(DC24V/AC220V)

Shell: Aluminum /Plastic

Connection: Thread / Flange (optional)



KLD705




4-20mA / HART KLD70 series microwave radar sensor module of Level Meter 5





Production Flow


radar sensor.jpg



Packaging & Shipping


radar level sensor (3).jpg



Cases


radar level sensor cases.jpg



Certificates
