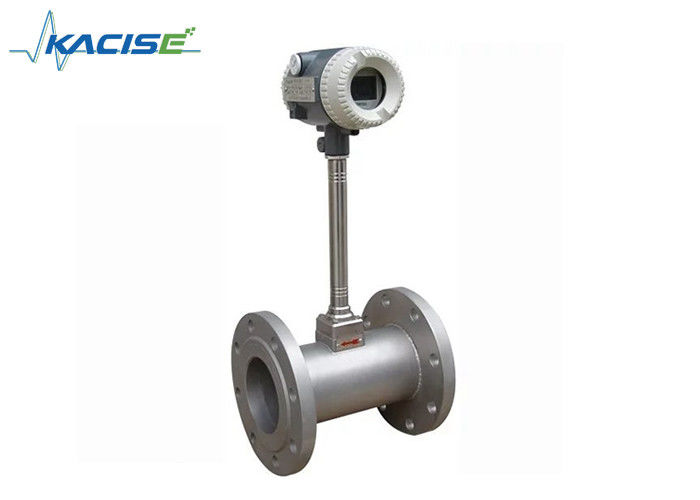

High Precision Digital Propane Flow Meter , KACISE Co2 Gas Flow Meter

High Precision Digital Propane Flow Meter , KACISE Co2 Gas Flow Meter

  • High Precision Digital Propane Flow Meter , KACISE Co2 Gas Flow Meter
  • High Precision Digital Propane Flow Meter , KACISE Co2 Gas Flow Meter
  • High Precision Digital Propane Flow Meter , KACISE Co2 Gas Flow Meter
  • High Precision Digital Propane Flow Meter , KACISE Co2 Gas Flow Meter
  • High Precision Digital Propane Flow Meter , KACISE Co2 Gas Flow Meter
  • High Precision Digital Propane Flow Meter , KACISE Co2 Gas Flow Meter
  • High Precision Digital Propane Flow Meter , KACISE Co2 Gas Flow Meter
High Precision Digital Propane Flow Meter , KACISE Co2 Gas Flow Meter
Product Details:
Place of Origin: China (Mainland)
Brand Name: KACISE
Model Number: KVF Series
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece/Pieces
Price: US $199-390 / Pieces
Packaging Details: Carton or customers requests available propane gas flow meter
Delivery Time: Shipped in 6 days after payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 3000 Piece/Pieces per Month propane gas flow meter
Contact Now
Detailed Product Description
Accuracy: Up To 1.0% Power Supply: 24VDC, 3*1.2V Battery Or AC90 ~260V Power Adapter
Output Signal: Pulse / 4~20mA / RS485 / RS232 /OCT Pipe Diameter: 15mm~6000mm
Measuring Medium: Carbon Dioxide, Oxygen, Compressed Air, Argon, Toluene Temperature: Customized Available
Protection Grade: IP68 Applications: Water Supply,heating Supply
Product Name: Propane Gas Flow Meter Keywords: Propane Gas Flow Meter
High Light:

compressed air flow meter

,

insertion type flow meter

High Precision Digital Propane co2 Gas Flow Meter

.jpg

Product Description

Description

Vortex flowmeter is based on the principle of Karman vortex research and production, mainly for industrial pipe flow measurement fluid medium, such as a gas, liquid, steam and other media. It features a small pressure loss, large measuring range, high accuracy in the measurement of actual volume flow is hardly affected by fluid density, pressure, temperature, viscosity and other parameters. No moving mechanical parts, so high reliability and low maintenance. Instrument parameters can be long-term stability. Vortex flowmeter piezoelectric stress sensors, high reliability, can work within the operating temperature range of -20 ℃ ~ + 250 ℃ for. Standard analog signals, digital pulse signal output, easily with computers and other digital systems supporting the use of a more advanced and ideal measuring instruments.



Feature

1. Detecting element does not touch with flow medium, with high reliability and strong flexibility for medium
2. No moving parts, wear resistance, structure is simple and fastness
3. Assemble with anti-interference circuit and anti-vibration sensors, which could ensure anti-vibration performance of the product.
4. The allowed working temperature is wide from -40℃ to +350℃
5. Wide range, High accuracy
6. Pulse signal output or two-wire system 4-20mA current signal output



Parameters

Spec.

Value



Type

KVF Series



Medium

Liquid, Gas, Steam, Water, high temperature water, oil, beverage




Flow meter Accuracy

1.0% (Liquid), 1.5% (Gas)



Medium temperature

 -40~280;  -40~350



Nominal pressure

1.6Mpa  (offer  2.5Mpa  and  4.0Mpa customization)




Flow rate

0.6~6m/s



Power

24vdc;220VAC (Remote display);3.6V lithium battery (on site display)




Installation

 Flange, clamp flange, insertion, thread, clamp



Output

Voltage pulse, 4-20mA output, HART, Modbus, RS485, RS232 options




Material

Stainless Steel - 316/316L and CF3M Nickel Alloy - C-22 and CW2M



Consult factory for other wetted material options



Flange Options

ANSI Class 150 to 900



DIN PN 10 to PN 160



JIS 10K to 40K



Flanges are available in a variety of facings



Operating Temperatures

-25to -60


Product flow

Vortex flow meterjpg.jpg

Packaging & Shipping

turbine flow meter.jpg

Case

mag cases.jpg

Certificates

High Precision Digital Propane Flow Meter , KACISE Co2 Gas Flow Meter 4

Company Information

company

Xi'an Kacise is certified by ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof, etc. which assure our products are conform to the international standards.

We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. We have experienced technical and management personnel, through the efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider. And we are continuously trying to improve product quality.



Currently, Kacise sensor is already exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing. We regards “reasonable prices, efficient production time and good after-sales service” as our tenet, and hope to cooperate with more customers for mutual development.



We supply high quality Clamp Vortex Flow Meter, hope we can coopperate in near future by providing you suitable products, good services and reasonable prices.

Our Services
  • Your inquiry will be replied in 24hours.
  • Well-trained and experienced staffs to answer all your enquires in fluent English.
  • OEM&ODM, we can help you to design and your request will be put into product.
  • Distributorship are offered for your unique design and some our current models.
  • Protection of your sales area, ideas of design and all your private information.
  • Discounts are offered based on order quantities.
FAQ
1. Q: What information need to be provided to choose the suitable model?
     A:  Application field,  Nominal pressure ,Medium & medium temperture , Power supply , Output,
Flow range, Accuracy, Connection and other parameters.

2. Q: Are you a trade company or a manufacturer?

    A: We are an ISO approved manufacturer specialized in level and flow measuring instruments.

        OEM & ODM service are available. Welcome to visit us in China.

3. Q: What is your MOQ?

    A: To start our cooperation, sample order is acceptable.

4. Q: What is your delivery date?

    A: The delivery date is about 3-15 working days after receipt of payment.

5. Q: What is your payment terms?

    A: We support T/T, PayPal and Trade Assurance.

         For mass production order, it is 30% deposit in advance and 70% balance before shipment.

6. Q: What is Trade Assurance payment method:

    A: It’s a free service which can protect your orders from payment to delivery.

        And we now have USD104,000.00 of caution money to assure your orders.

7. Q: Do you have a warranty for Clamp Vortex Flow Meter?

    A: Yes, we have the warranty of 12 months.
