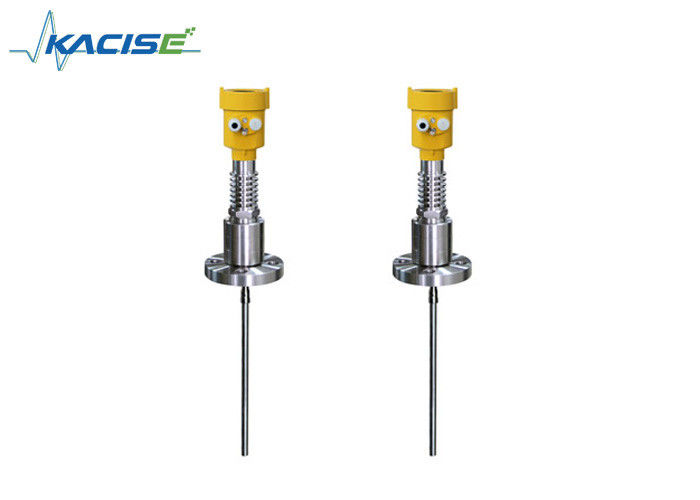

KLD Series 4-20mA HART Guided Wave Radar Level Meter level Transmitter

KLD Series 4-20mA HART Guided Wave Radar Level Meter level Transmitter

  • KLD Series 4-20mA HART  Guided Wave Radar Level Meter level Transmitter
  • KLD Series 4-20mA HART  Guided Wave Radar Level Meter level Transmitter
  • KLD Series 4-20mA HART  Guided Wave Radar Level Meter level Transmitter
  • KLD Series 4-20mA HART  Guided Wave Radar Level Meter level Transmitter
KLD Series 4-20mA HART  Guided Wave Radar Level Meter level Transmitter
Product Details:
Place of Origin: Shaanxi, China (Mainland)
Brand Name: KACISE
Model Number: KLD series
Payment & Shipping Terms:
Minimum Order Quantity: 0-100
Price: US $440-1,360 / Pieces
Packaging Details: 1pc/box, many boxes/ carton, some carton/wooden case, or customers requests available
Delivery Time: 7 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 Piece/Pieces per Month
Contact Now
Detailed Product Description
Signal Output: 4-20mA / HART Process Connection: Thread Or Flange
Power Supply: Two-wire (DC24V), Four-wire(DC24v/AC220V Measuring Range: 6~30m
Medium: Powder, Granule , Corn, Beans,bran,wheat Husk,coal Ash,coal Temperature: (-200~400)℃
High Light:

ultrasonic level transmitter

,

ultrasonic liquid level sensor

4-20mA HART Guided Wave Radar Level Meter level transmitter

Principle

High-frequency microwave pulses issued by the guided wave radar propagate along detection components (steel cable or steel rod), met the media to be measured, since the dielectric constant of the mutation, cause reflections, a portion of the pulse energy is reflected back. Transmit pulse and the reflected pulse is proportional to the distance and the time interval measured media.

Features

As a result of advanced microprocessor and unique echo processing technology, guided wave radar level meter can be used in a variety of complex conditions.

Because of the type of process connections and detection components, making KLD-70X Series Guided Wave Radar Level Meter is suitable for a variety of complex conditions and applications. Such as: high temperature, high pressure and low dielectric constant media.

Pulsed work, guided wave radar level instruments transmit power is very low, can be installed in a variety of metals, non-metallic container, no harm to humans and the environment.





Parameters



KLD701




Suitable for Medium: Liquid, solid powder

Application: Liquid and solid powder measure, complicated process conditions

Explosion-proof Grade:  Exia IIC T6 Ga/Exd ia IIC T6 Gb

Measuring Range: 30m

Frequency: 500MHz-1.8GHz

Antenna: Single cable or single rod antenna

Accuracy: ±10mm

Process Temperature:(-40~250)℃

Process pressure:(-0.1~4)MPa

Signal output:(4~20)mA/HART

The Scene Display: Four LCD/Can be programmed

Power Source: Two-wire (DC24V) Four-wire(DC24V/AC220V)

Shell: Aluminum /Plastic

Connection: Flange (optional) / Thread





KLD702




Suitable for Medium: Liquid with high corrosive

Application: Acids, bases or other corrosive media

Explosion-proof Grade:  Exia IIC T6 Ga/Exd ia IIC T6 Gb

Measuring Range:20m

Frequency: 500MHz-1.8GHz

Antenna: Full PTFE sealing cable type or rod antenna

Accuracy:±10mm

Process Temperature:(-40~200)℃

Process pressure:(-0.1~4)MPa

Signal output: (4~20)mA/HART

The Scene Display: Four LCD/Can be programmed

Power Source: Two-wire (DC24V) Four-wire(DC24V/AC220V)

Shell: Aluminum /Plastic

Connection: Flange (optional) / Thread



KLD703




Suitable for Medium: Solid powder

Application: Cement silo powder measure; Ash powder measure

Explosion-proof Grade:  Exia IIC T6 Ga/Exd ia IIC T6 Gb

Measuring Range:30m

Frequency: 500MHz-1.8GHz

Antenna: Double cable type antenna

Accuracy:±10mm

Process Temperature:(-40~150)℃

Process pressure:(-0.1~4)MPa

Signal output: (4~20)mA/HART

The Scene Display: Four LCD/Can be programmed

Power Source: Two-wire (DC24V) Four-wire(DC24V/AC220V)

Shell: Aluminum /Plastic

Connection: Flange (optional) / Thread



KLD704




Suitable for Medium: Liquids, particularly low dielectric constant liquid

Application:  Measuring deionized water,deoxygenated water and other liquids

Explosion-proof Grade:  Exia IIC T6 Ga/Exd ia IIC T6 Gb

Measuring Range:6m

Frequency: 500MHz-1.8GHz

Antenna: Coaxial tube type antenna

Accuracy:±5mm

Process Temperature:(-40~250)℃

Process pressure:(-0.1~4)MPa

Signal output: (4~20)mA/HART

The Scene Display: Four LCD/Can be programmed

Power Source: Two-wire (DC24V) Four-wire(DC24V/AC220V)

Shell: Aluminum /Plastic

Connection: Thread / Flange (optional)



KLD705


Suitable for Medium: Liquids, especially high temperature

and pressure environment of liquid Application: Sealed cans, high pressure

liquid measurement

Explosion-proof Grade: Exia IIC T6 Ga/Exd ia IIC T6 Gb Measuring Range: 15m

Frequency: 500MHz-1.8GHz

Antenna: Single cable or single rod antenna Accuracy: ±10mm

Process Temperature:(-200~400)℃

Process pressure:(-0.1~40)MPa Signal output:(4~20)mA/HART

The Scene Display: Four LCD/Can be programmed Power Source: Two-wire (DC24V)

Four-wire(DC24V/AC220V)

Shell: Aluminum /Plastic

Connection: Thread / Flange (optional)
