| Place of Origin: | China |
| Brand Name: | Kacise |
| Certification: | ISO / CE |
| Model Number: | KEF Series |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | USD300~USD1500 |
| Packaging Details: | Carton / Wooden case |
| Delivery Time: | 7 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Diameter: | DN15~DN300 | Power Supply: | 85vac~250vac, 20vdc~36vdc |
|---|---|---|---|
| Output: | 4-20 MA, Pulse, 0~10V | Pressure: | 1.6 Mpa ,2.5Mpa ,4.0Mpa (Higher Can Be Customized) |
| Communication: | RS-485 / MODBUS / Hart | Installation Type: | Flange, Clamp, Thread |
| High Light: | wastewater flow meter,smart water flow meter |
||

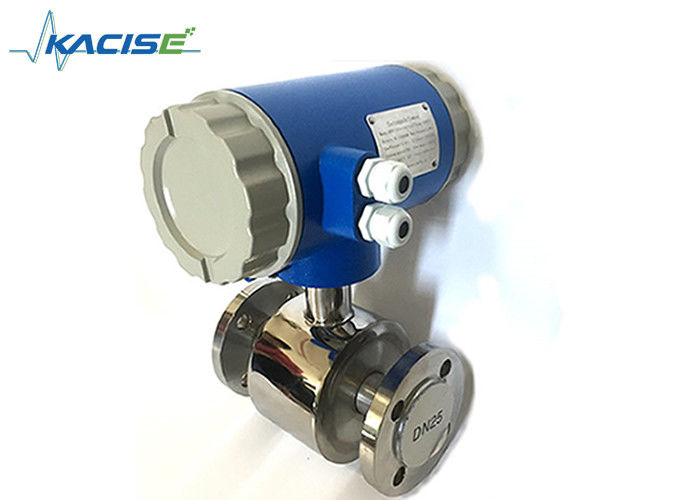

Sanitary Grade Tri-clamp Electromagnetic Flow Meter For Food Industry
Introduction
Sanitary type magnetic flow meter is specially designed for measurement of food liquid, like milk, cream, juice of various fruits, pharma liquid etc. It is available with compact or remote version of transmitter can be installation either horizontally or vertically with a variety of optional end-fittings to meet your requirement.
Features
1. Simple structures, firm, no movable parts and long operation life.
2. No intercepting fluid parts, no pressure loss and fluid clogging.
3. No mechanical inertia, quick response and good stability, application in automatic examination, adjustment & controlling.
4. Measuring accuracy not influenced by physical parameters such as style, temperature, viscosity, density and pressure.
5. Employ Teflon or rubber liner and different combination of electrode material such as Hastelloy C, Hastelloy B, 316L, and Titanium and adapt the need of different mediums.
6. Supply many styles of flow meters such as inline type and insertion type, etc.
Adopt EEPROM memory to measure operation data, safe and reliable protection of memory.
7. Integral type electromagnetic flow meters and remote type electromagnetic flow meters.
8. LCD back light display with high clearness. (Option: LED display is optional).
Specifications
| Items | Description | |
| Suitable Diameter | DN15~DN300 | |
| Suitable Fluid | Liquid with conductive ratio more than 5 μs/cm | |
| Measuring Range | 0.5~10m/s (extendable to 15m/s) | |
| Upper Limit of Span | 0.5~10m/s. 1~5m/s recommended | |
| Accuracy | 0.3% (Option), 0.5%, 1.0% of F.S.. | |
| Repeatability | Below 0.25% | |
| Display of Converter |
Display : Flow rate ( 4-digits), Totalizer (9-digits), Velocity, Alarm status by LCD ( LED-option) |
|
| Scale unit: selectable of L/h, L/m, L/s, m3/h, m3/m, m3/s | ||
| Flow direction : selectable by program | ||
| 3 Digits display below of decimal points. | ||
| K-factor: 5 digits. | ||
| Data logger for 2-3years. | ||
| Programming language: English, Korean(on request) | ||
| Mounting: Integral type; Remote Type | ||
| Power | AC: 220V, 50-60Hz; DC: +24V(Option) | |
| Output Signals | 4~20m ADC, Pulse, Voltage output:0-10 V DC | |
| Conduit connection | M20 * 1.5 Thread | |
| Communication Interface | RS-232; RS-485; HART | |
| Operation Pressure | 1.0MPa, 1.6MPa, 4.0MPa, 16MPa (Special) | |
| Fluid Temperature | -20°C~80°C, 80°C ~130°C, 130°C ~180°C Depending on Lining Material | |
| Ambient Temperature | Sensor -40°C ~80°C. transducer -15°C ~50°C | |
| Ambient Humidity | ≤ 85%RH (at 20C) | |
| Cable Outlet Size | M20×1.5 | |
| Power Supply | 220VAC±10%, 50-60Hz±1Hz, 24VDC±10%, Battery power (3-5years) | |
| Power Consumption | ≤ 8W | |
| Protection Ratings | Integral type: IP65. Remote type: sensor IP68, transducer IP65. | |
| Materials | Electrode |
316L (stainless steel), Hastelloy C, Hastelloy B, Titanium, Tantalum, etc. |
| Liner | PTFE, F46, PFA | |
| Measuring tube | SS 304, SS316 | |
| Flange | SS 304, SS316 | |
| Ground ring | 316L (stainless steel), HC, Ti, Ta, Cu. | |
| Connection of Flange |
National Standard GB9119-88 (DIN2051, BS4504), JIS, ANSI. Screw. Tri-clamp for sanitary application Insertion type. |
|
| EX-proof protection | Exde ib ii BT2 | |
| Quality control | ISO9001-2008, CE | |
Model selection
Manufacture and stocks
Packaging
Applicaion
