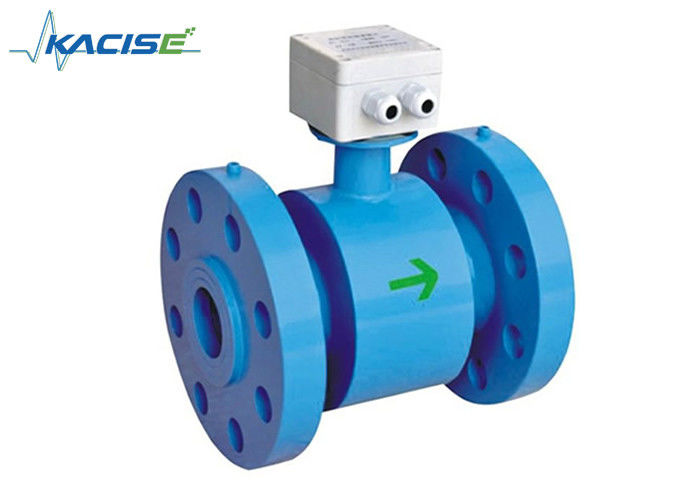

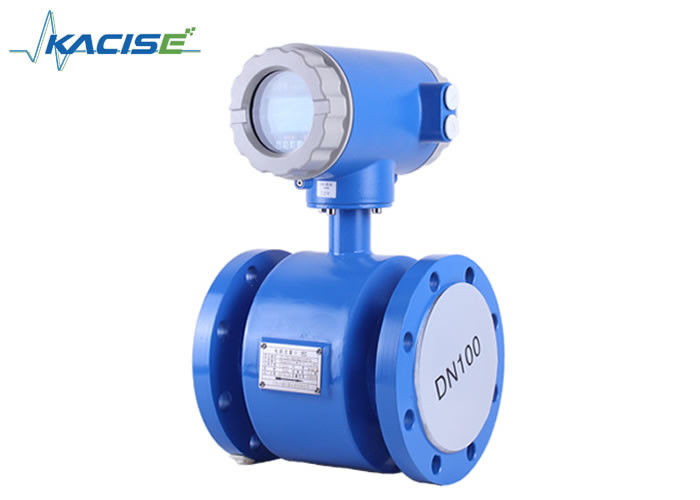

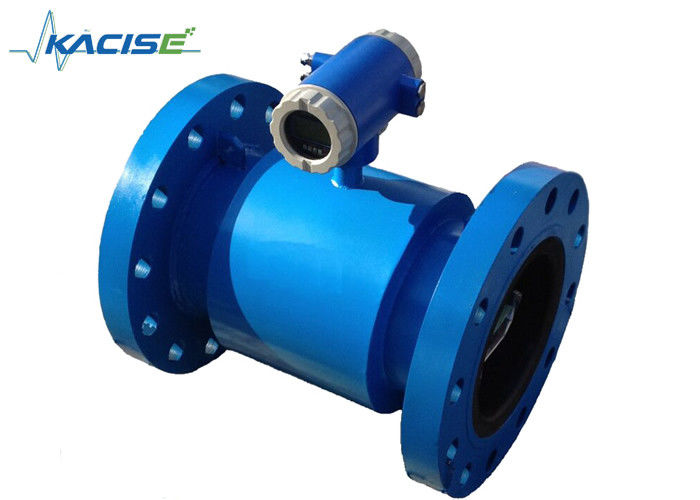

Negative Pressure Resistance Electromagnetic Flow Meter For Sewage Treatment

Negative Pressure Resistance Electromagnetic Flow Meter For Sewage Treatment

  • Negative Pressure Resistance Electromagnetic Flow Meter For Sewage Treatment
  • Negative Pressure Resistance Electromagnetic Flow Meter For Sewage Treatment
  • Negative Pressure Resistance Electromagnetic Flow Meter For Sewage Treatment
  • Negative Pressure Resistance Electromagnetic Flow Meter For Sewage Treatment
Negative Pressure Resistance Electromagnetic Flow Meter For Sewage Treatment
Product Details:
Place of Origin: China
Brand Name: KACISE
Certification: ISO / CE
Model Number: KEF Series
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Carton / Wooden box
Delivery Time: 7 Working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Contact Now
Detailed Product Description
Pressure: 1.6 Mpa ,2.5Mpa ,4.0Mpa (Special) Diameter: DN10 ~ DN2600
Temperature: -20°C - +160 °C Power Supply: 24VDC, 220VAC
Communication: RS-485 / MODBUS , HART Accuracy: ±0.2% (Customize), ±0..5% (Standard)
Electrode: 316 Stainless Steel ,HC,HB,Titanium, Tantalum, Etc. Output Signal: 4~20mA / Pulse / 0~10V
Installation: Flange, Clamp On, Thread Liner: PFA, F46, Neoprene, PTFE, FE
High Light:

electromagnetic water flow meter

,

smart water flow meter

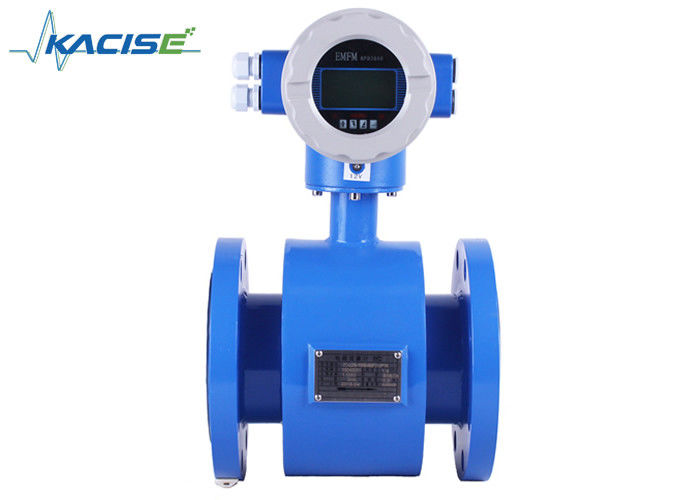

Negative Pressure Resistance Electromagnetic Flow Meters With LED Display Used For Sewage Treatment Water



Introduction



Electromagnetic Flow Meter is a kind of induction instrument designed by Faraday’s law of electromagnetic induction to measure flow of conductive media in the tube. It adopts the technology of insertion of single chip to realize digital excitation and employs CAN local fieldbus.
Electromagnetic flow meter can realize local indication and output electrical current signal of 4-20mA which can be used to record, adjust and control. Electromagnetic flow meters are widely used in industrial sectors such as chemical industry, environmental protection, metallurgy, pharmaceutical, paper making, water supply and removal etc.



Features



1. Simple structures, firm, no movable parts and long operation life.(Guarantee in 1 years)

2. No intercepting fluid parts, no pressure loss and fluid clogging.

3. No mechanical inertia, quick response and good stability, application in automatic examination, adjustment & controlling.

4. Measuring accuracy not influenced by physical parameters such as style, temperature, viscosity, density and pressure.

6. Supply many styles of flow meters such as inline type and insertion type, etc.Adopt EEPROM memory to measure operation data, safe and reliable protection of memory.

7. High pressure sensor with PFA liner is resistant to high pressure and negative pressure, and available to chemistry and corrosive solution.

8. It is applicable not only to general process, but also in tough applications such as mining, papermaking, pastry, etc.



Parameters



Pipe diameter DN6~DN2600
Accuracy 0.3% (Option), 0.5%, 1.0% of F.S..
Repeatability Below 0.25%
Power AC: 220V, 50-60Hz; DC: +24V(Option)
Output Signals 4~20mA, Pulse, 0~5V,0~10V
Conduit connection M20 * 1.5 Thread
Communication Interface RS-232; RS-485; HART
Operation Pressure 1.0MPa, 1.6MPa, 4.0MPa, 16MPa (Special)
Fluid Temperature -20°C~80°C, 80°C ~130°C, 130°C ~180°C Depending on Lining Material
Ambient Temperature Sensor -40°C ~80°C. transducer -15°C ~50°C
Ambient Humidity ≤ 85%RH (at 20C)
Cable Outlet Size M20×1.5
Power Supply 220VAC±10%, 50-60Hz±1Hz, 24VDC±10%, Battery power (3-5years)
Power Consumption ≤15W
Protection Ratings Remote type: sensor IP68, transducer IP65.
Materials Electrode 316L (stainless steel), Hastelloy C, Hastelloy B,Titanium, Tantalum, etc.
  Liner PTFE, Soft rubb er, Hard rubber, F46, FS, PUR.
Measuring tube SS 304, carbon steel
Flange Carbon Steal, SS304
Ground ring 316L (stainless steel), HC, Ti, Ta, Cu.
Connection of Flange

National Standard GB9119-88 (DIN2051, BS4504), JIS,ANSI. Screw.

Tri-clamp for sanitary application

Insertion type.

EX-proof protection Exde ib ii BT4
Quality control

ISO9001-2008, CE































































Negative Pressure Resistance Electromagnetic Flow Meter For Sewage Treatment 0Model selection



Negative Pressure Resistance Electromagnetic Flow Meter For Sewage Treatment 1
