| Place of Origin: | Shaanxi, China (Mainland) |
| Brand Name: | KACISE |
| Model Number: | GXPS201C |
| Minimum Order Quantity: | 1 Piece/Pieces |
|---|---|
| Price: | Negotiable |
| Packaging Details: | carton or customers requests available |
| Delivery Time: | 5 working days after payment |
| Supply Ability: | 3000 Piece/Pieces per Month |
| Pressure Range: | -0.1Mpa~260Mpa | Accuracy: | 0.05, 0.1, 0.2 , 0.5 |
|---|---|---|---|
| Over Load Safe: | 1.5times Nominal Pressure(1.5X) | Power Supply: | 4.1V Rechargeable Battery |
| Stability: | Typical 0.1%F.S/year | Output Signal: | USB, RS485 |
| High Light: | high precision pressure gauge,stainless steel pressure gauge |
||

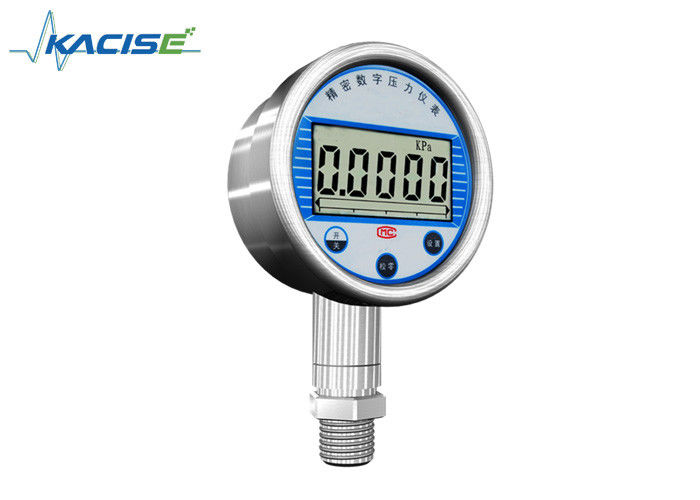

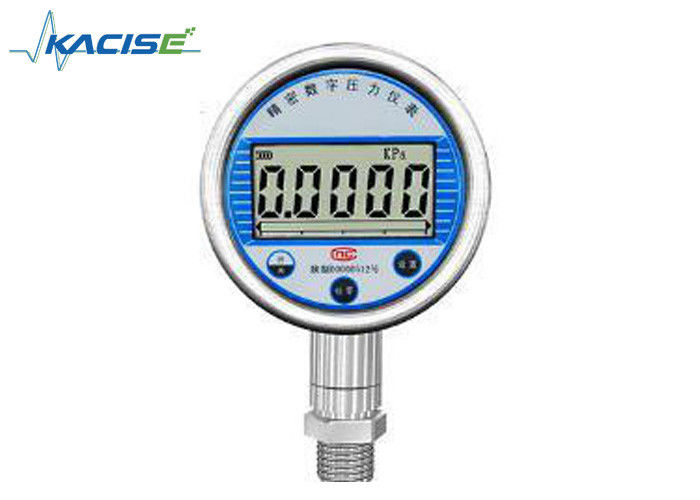

Storage Digital High Accuracy Stainless Steel Pressure Gauge With Data Logger
Description
GXPS201C Storage Digital Pressure Gauge is a digital gauge with local display and data storage and communication function together. 10000 data storage capacity, USB communication and other bundled software which has functions of data acquisition, analyze, report and graph. Humanized interface design and efficient data processing ability. Six figures display on big LCD screen, very striking, which is the essentials of experimental data acquisition.
Features
☆ 0.025 ~ 7200 seconds per time acquisition speed
☆ 4.1V rechargeable battery, not need to change battery
☆ 10000 data storage capacity, easy to carry and collect data
☆ Magnetic induction button design
☆ Pressure percentage bar charts shows
☆ Signal isolation technique, anti-electromagnetic interference and RF technique
☆ Zero stable technology, automatic temperature compensation technology
Application
☆ Oil and gas pressure data collection, storage and analysis
☆ Urban water network, heat supply network and gasnetwork pressure data collection,storage and analysis
☆ Lab pressure test and analyze
☆ Verify pressure (differential pressure) transmitter, precision pressure gauge, general pressure gauge
☆ Measuring corollary software of pressure monitor and other pressure instruments,
☆ Accuracy grade can arrive 0.05, which can meet high precision pressure acquisition
☆ Can work well in corrosive, impact and versatility environment
☆ Meet the lab and industrial field high precision pressure acquisition requirement
Picking rate
Acquisition speed |
50times per second |
40times per second |
30times per second |
Time range setting |
0.02-140s per time |
0.025-180s per time |
0.033-240s per time |
Acquisition speed |
20times per second |
10times per second |
one time per second |
Time range setting |
0.05-360s per time |
0.1-720s per time |
1-7200s per time |
Battery life
Acquisition speed |
50times per second |
40times per second |
30times per second |
Battery life |
150 hours |
200 hours |
350 hours |
Acquisition speed |
20times per second |
10times per second |
one time per second |
Battery life |
400 hours |
800 hours |
2000 hours |
Parameter
| Spec. | Value |
| Type | GXPS201C |
| Pressure range | -0.1Mpa~260Mpa |
| Over load safe | 1.5times nominal pressure(1.5X) |
| Secondary Containment | 3times nominal pressure(3X) |
| Accuracy | 0.05, 0.1, 0.2 , 0.5 |
| Stability | Typical 0.1%F.S/year |
| Compensated temperature range | -30 ~70 |
| Operating temperature | -40 ~120 |
| Output signal | USB, RS485 |
| Power supply | 4.1V rechargeable battery |
| Electrical connection | USB standard line |
Pressure port | M20×1.5, G1/2 G3/4 G1/8 G3/8, NPT 1/2 NPT 1/4 |
| Pressure type | Gage pressure, sealed gage |
| Picking Rate | 0.02-7200s per times |
| Protection Degree | IP65 |
Software configuration
Digital instrument test software displaying instrument data, automatic recording, automatic drawing pressure curve and deriving to Excel, reading, printing and storage.
