| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Certification: | Intrinsically safe mode, insulation explosion proof, CE |
| Model Number: | GXPS400M |
| Minimum Order Quantity: | 0-100 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Delivery Time: | 5-8 work day |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal |
| Supply Ability: | 1000 Pieces per Week |
| Pressure Range: | 0~1...200mH2O | Overload Pressure: | 1.5times Rated Pressure |
|---|---|---|---|
| Secondary Containment: | 3 Times Rated Pressure | Accuracy: | ±0.1%F.S, ±0.25%F.S, ±0.5%F.S |
| Operating Temperature: | -40°C~85°C | Compensation Temperature: | -10°C~70°C |
| Output Signal: | 4~20mA, 0~5Vdc, 1~5Vdc. 0~10Vdc | Power Supply: | 0~30VDC, 6~24Vdc, 11~30Vdc, |
| High Light: | ultrasonic level transmitter,ultrasonic liquid level sensor |
||
1. Product Description

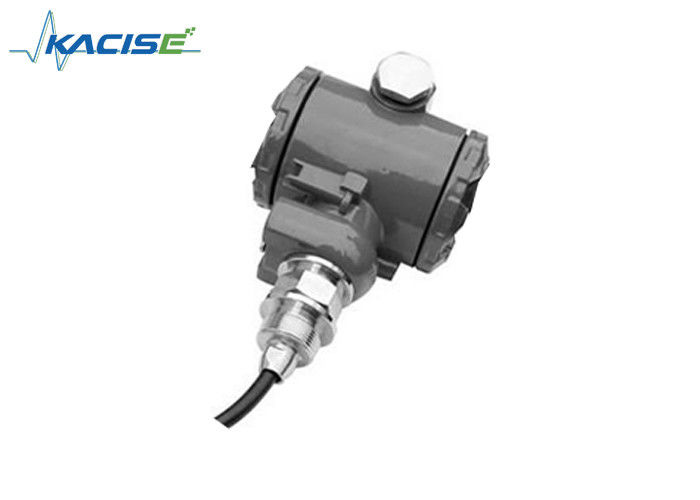

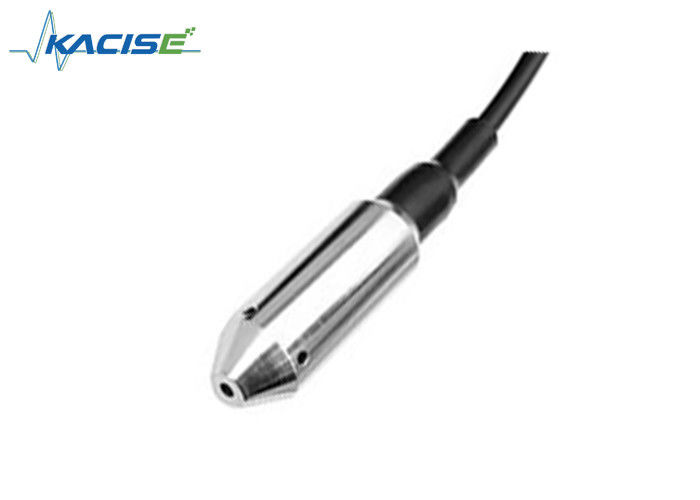

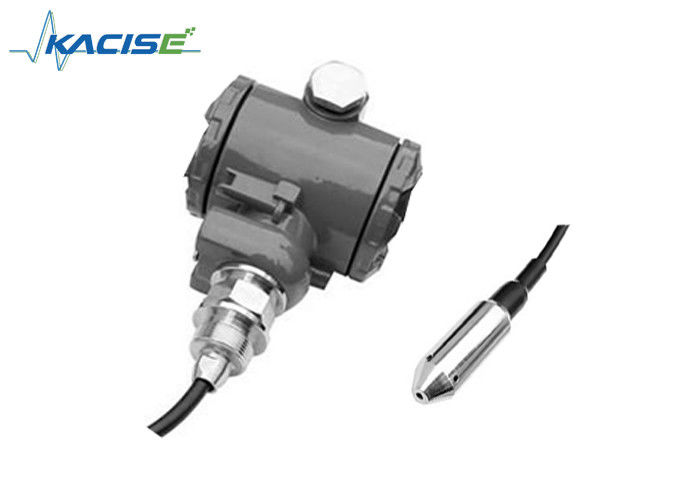

GXPS400M series level transmitter is a highly reliable, high stability, high accuracy, small size, split level transmitter. Widely used in the detection of a small diameter pipe and the liquid level in the reservoir fluid height. Such as water, oil, mildly corrosive liquids.
The product uses the 1Cr18Ni9Ti stainless steel structure with import oil-filled pressure core, dedicated zoom and V / I transmitter conversion circuit, which can facilitate their zero and full scale calibration and external zero and span programmable regulation.
Abrasion, oil, acid and alkali resistant, high-strength special breathable cable can be used depending on site configuration.
The intrinsically safe certificate; explosion proof; CE certificate.
Non polarity; circulation output lead of the two-wire and three-wire voltage output for both AC and DC.
2. Parameter
| Spec. | Value | |||
| Pressure range |
0~1......200mH20 9.8KPa…1900KPa 0.09bar…19.6bar 0.09atm…19.3atm 1.4psi… 284psi 2.8inchHg…579inchHg |
|||
| Load pressure | 1.5 times nominal value pressure | |||
| Rupture pressure | 3 times nominal value pressure | |||
| Accuracy | 0.1%F.S, 0.25%F.S, 0.5%F.S | |||
| Stability | Typical value 0.1%F.S/year, Max. 0.2% F.S | |||
| Operating temperature | -40°C~85°C | |||
| Compensation temperature | -10°C~70°C | |||
| Medium compatibility | All Caustic Medium Compatible with 1Cr18Ni9Ti | |||
| Electrical performance | 2 wire system | 3 wire system | ||
| Output signal | 4~20mA | 0/1~5Vdc | 0~10V | |
| Power supply | 10~30Vdc | 6~24Vdc/ac | 11~30Vdc/ac | |
| Load pressure | (U-10)/0.02(Ω) | >100kΩ | ||
| Insulation | >100M Ω@50V | |||
| Electric strength | 500V@60 second | |||
| Vibration/Impact | 10g/5~2000Hz, axes X/Y/Z20g sine 11ms | |||
| Electrical connection | Waterproof cable outlet+ two rectangular ring+ sealing ring+ seal gum+ glue; IP68 | |||
| Pressure port | Submersible type, transmitting box wellhead connection dimension M27×1.5 | |||
| Pressure type | G | Response time: 10ms | ||
| EMI/EMC | EMI: EN50081-1/-2; EMC: EN50082-2 | |||
3. Feature
4. Application Field
