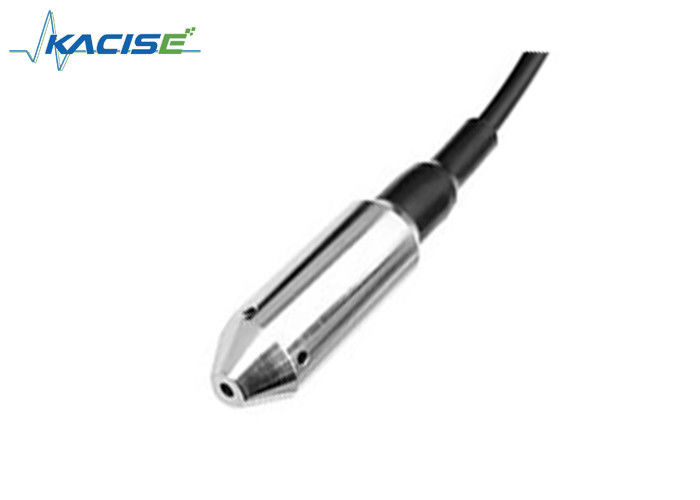

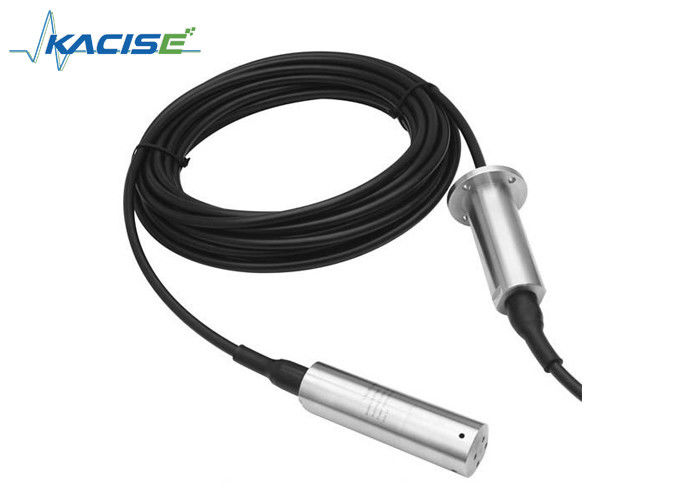

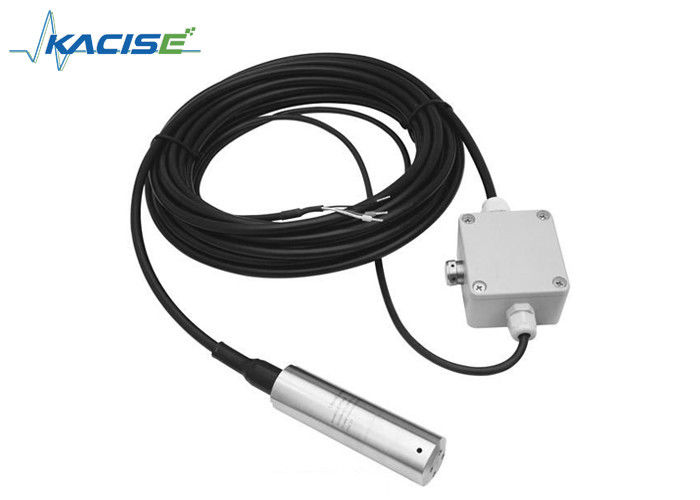

4 - 20mA Submersible Pressure Transducer , Geothermal Water Level sensor

4 - 20mA Submersible Pressure Transducer , Geothermal Water Level sensor

  • 4 - 20mA Submersible Pressure Transducer , Geothermal Water Level sensor
  • 4 - 20mA Submersible Pressure Transducer , Geothermal Water Level sensor
  • 4 - 20mA Submersible Pressure Transducer , Geothermal Water Level sensor
  • 4 - 20mA Submersible Pressure Transducer , Geothermal Water Level sensor
4 - 20mA Submersible Pressure Transducer , Geothermal Water Level sensor
Product Details:
Place of Origin: China (Mainland)
Brand Name: Kacise
Certification: Intrinsically safe mode, insulation explosion proof, CE
Model Number: GXPS420
Payment & Shipping Terms:
Minimum Order Quantity: 0-100
Price: Negotiable
Packaging Details: each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time: 5-8 work day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal
Supply Ability: 1000 Pieces per Week
Contact Now
Detailed Product Description
Pressure Range: 0~1...500mH2O Overload Pressure: 1.5times Rated Pressure
Secondary Containment: 3 Times Rated Pressure Accuracy: 0.25%F.S, 0.5%F.S(MARS Portfolio For High Accuracy)
Operating Temperature: -20°C~100°C (-20°C~120°C Available) Compensation Temperature: -10°C~70°C
Output Signal: 4~20mA, 0~5Vdc, 1~5Vdc. 0~10Vdc Power Supply: 10~30VDC, 8~24Vdc/ac, 11~30Vdc/ac,
High Light:

ultrasonic level transmitter

,

ultrasonic liquid level sensor

4 20mA Submersible Geothermal water Pressure Level Transmitter



1. Product Description

Based on the principle that the measured hydrostatic pressure is proportional to the height of the liquid, the plunge-type liquid level meter is made of advanced isolated diffused silicon sensitive element or ceramic capacitive pressure sensitive sensor. The static pressure is converted into electrical signal after temperature compensation and linear correction. Converted into a standard electrical signal (generally 4 ~ 20mA/1 ~ 5VDC) a measurement of the level of the pressure sensor, can also be called "static pressure level meter, level transmitter, level sensor, water level sensor".

GXPS420 liquid level sensor is an input type liquid level sensor. The liquid static pressure measured by the input type liquid level gauge is proportional to the height of the liquid. The principle is made of advanced pressure sensitive elements, and the static pressure is converted into electrical signals, and then converted into standard electrical signals through temperature compensation and linear correction. Its characteristics are wear resistance, oil resistance, acid and alkali resistance, high pressure resistance, it has a high strength cable, widely used in the ocean, lakes, rivers, groundwater, sewage treatment, water plants and other hydrological monitoring of various fields of liquid level measurement.



2. Parameter



Spec. Value
Pressure range

0~1….500mH2O; 9.8KPa…4900KPa

0.09bar…49bar; 0.09atm…48atm

1.4psi… 711psi; 2.8inchHg…1400inchHg

Overload pressure 1.5 times nominal pressure
Secondary Containment 3 times nominal pressure
Accuracy 0.25%F.S, 0.5%F.S(MARS portfolio for high accuracy)
Stability Typical value 0.15%F.S, Max. value: 0.25%F.S
Operating temperature -20°C~100°C (-20°C~120°C available)
Compensated Temperature Range -10°C~70°C
Medium Compatibility All Caustic Medium Compatible with 1Cr18Ni9Ti and 316L
Electrical properties 2 wires 3 wires
Output signal 4~20mA 0/1~5V 0~10V
Power supplier 10~30Vdc 8~24Vdc/ac 11~30Vdc/ac
Load resistance (U-10)/0.02(Ω) >100kΩ
Minimum isolation between case & terminations >100M Ω@50V
Surge immunity 500V@60 second
Display panel 5th grade sealing , IP68
Pressure port T=submersible F= split style
Response time 10ms
Shock and vibration 10g/5~2000Hz, axes X/Y/Z 20g sine 11ms
Certificate Intrinsically safe mode, insulation explosion proof, CE
EMI/ EMC EMI: EN50081-1/-2; EMC: EN50082-2
lightning protection conduction of air pressure 8000V, housing, conduction of cable pressure 4000V



3. Feature



4 - 20mA Submersible Pressure Transducer , Geothermal Water Level sensor 0

  • Accuracy: ±0.25%,±0.5%F.S
  • Diffused-silicon oil-filled core
  • Submersible and screw thread installation
  • The Max. of temperature is 120℃
  • Non polarized and 2 wire system output
  • Intrinsically safe mode, explosion-proof, CE
  • Against severe electromagnetic interference

4 - 20mA Submersible Pressure Transducer , Geothermal Water Level sensor 1



4. Application Field



  • Geothermal measurement
  • Geothermal water collection
  • Thermal power plant cooling water monitoring
  • Thermal boilers
  • Hydrologic monitoring facilities
  • Heating boiler
  • Generating set
  • Hydroelectric power
