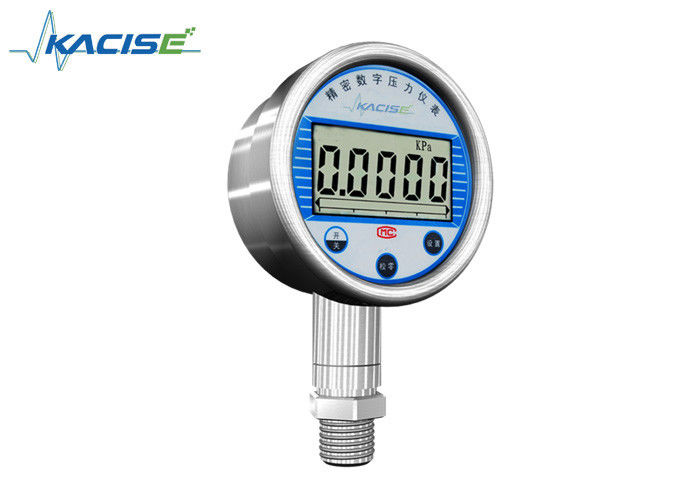

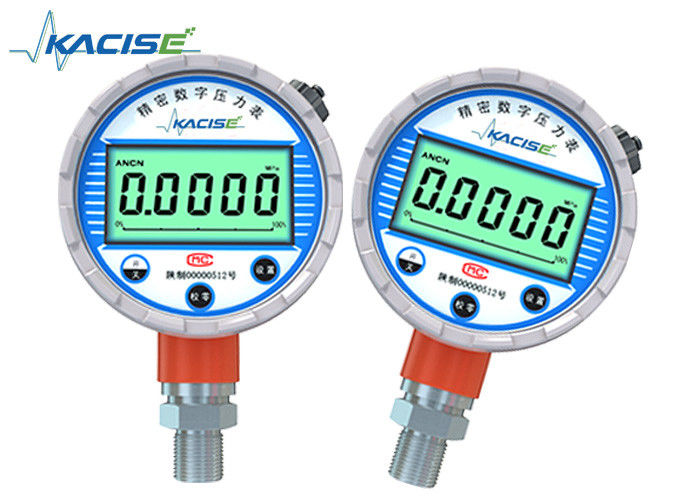

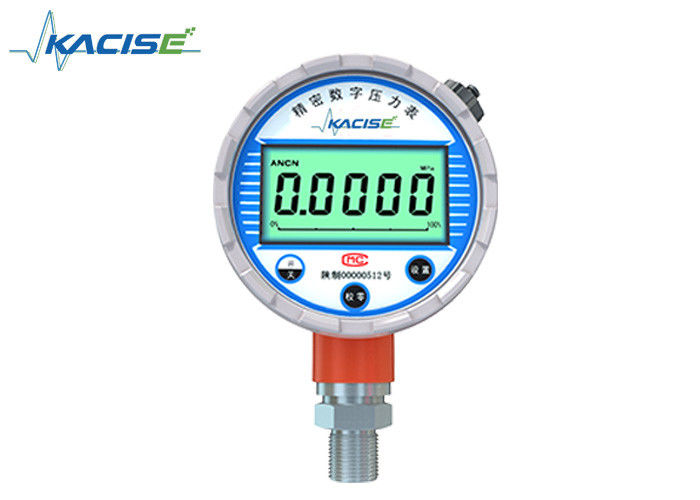

Rs485 Storage Type High Precision Digital Pressure Gauge With Led Screen

Rs485 Storage Type High Precision Digital Pressure Gauge With Led Screen

  • Rs485 Storage Type High Precision Digital Pressure Gauge With Led Screen
  • Rs485 Storage Type High Precision Digital Pressure Gauge With Led Screen
  • Rs485 Storage Type High Precision Digital Pressure Gauge With Led Screen
Rs485 Storage Type High Precision Digital Pressure Gauge With Led Screen
Product Details:
Place of Origin: Shaanxi, China (Mainland)
Brand Name: KACISE
Model Number: GXPS201
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece/Pieces
Price: Negotiable
Packaging Details: carton or customers requests available
Delivery Time: 5 working days after payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 3000 Piece/Pieces per Month
Contact Now
Detailed Product Description
Pressure Range: -0.1MPa~0~60Mpa Accuracy: ±0.5%F.S
Over Load Safe: 1.5times Nominal Pressure(1.5X) Secondary Containment: 3times Nominal Pressure(3X)
Stability: Typical 0.25%F.S/year Output Signal: RS485
High Light:

stainless steel pressure gauge

,

submersible pressure sensor

Storage Digital High Accuracy Stainless Steel Pressure Gauge With Data Logger


Features

☆ 0.25 ~ 10 seconds per time acquisition speed
☆ output: RS485/ 4-20mA
☆ never drop communication equipment, the trunk supports 255 set of RS485 counter equipment
☆ super power management technology, battery life is 5-8 years
☆ signal isolation technique, anti-electromagnetic interference and FRI technique
☆ magnetic induction button design, eliminate interference and not easy to damage
☆ Five figures display on big LCD screen
☆ pressure percentage bar charts shows
☆ automatic temperature compensation technology to reduce error under bad environment
☆ zero stable technology, increase the stability of the instrument
☆ 0.25 ~ 10 seconds per time acquisition speed
☆ Fire-fighting detection

Application

☆ digital communication pressure acquisition, can store and handle the data on computer.
☆ verify pressure (differential pressure) transmitter, precision pressure gauge, general pressure
gauge
☆ measuring corollary software of pressure monitor and other pressure instruments,
☆ accuracy grade can arrive 0.05, which can meet high precision pressure acquisition
☆ can work well in corrosive, impact and versatility environment
☆ meet the lab and industrial field high precision pressure acquisition requirement
☆ replace the traditional indicator pressure gauge, can use as standard digital pressure gauge


Description



GXPS201 emote Digital Pressure Gauge increases the remote output communication module, which has RS485 communication, USB communication and 4-20mA signal output. This gauge can communicate with computer directly under the cooperation of communication software, which has data acquisition, storage and statements processing functions. This gauge adopts the signal isolation technique to eliminate interference. The lithium battery inside can work 5~10 years continuously. The gauge can still work stable without external power because of the build-in battery, but the communication function close without external power. It has radial direction, axial direction and panel mounting ways to choose.



Parameter


Spec.Value
TypeGXPS201
Pressure range-0.1MPa~0~60Mpa
Over load safe1.5times nominal pressure(1.5X)
Secondary Containment3times nominal pressure(3X)
Accuracy±0.5%F.S
StabilityTypical 0.25%F.S/year
Compensated temperature range-10℃~60℃
Operating temperature-10℃~60℃
Output signalRS485

Power supply


Electrical connection

24VDC
 Fixed terminals

Minimum isolation


terminations

betweencaseand



>100M Ω@50V

Pressure portM20×1.5,G1/2,NPT1/4



Ordering information



GX-Type-Range-Output-Power-Pressure port-Electric connection-Cable length

  • Type: PS201
  • Range:-0.1MPa~0~60Mpa
  • Output : RS485
  • Power: 24VDC
  • Pressure port: M=M20×1.5,G2=G1/2,N2=NPT1/4
  • Electric connection: fixed connecting terminal
  • Cable length: meter 1-150m
