RS485 Split Type Ultrasonic Level Difference Meter 5-30M ultrasonic level gauge

RS485 Split Type Ultrasonic Level Difference Meter 5-30M ultrasonic level gauge

  • RS485 Split Type Ultrasonic Level Difference Meter 5-30M ultrasonic level gauge
  • RS485 Split Type Ultrasonic Level Difference Meter 5-30M ultrasonic level gauge
  • RS485 Split Type Ultrasonic Level Difference Meter 5-30M ultrasonic level gauge
  • RS485 Split Type Ultrasonic Level Difference Meter 5-30M ultrasonic level gauge
RS485 Split Type Ultrasonic Level Difference Meter 5-30M ultrasonic level gauge
Product Details:
Place of Origin: China (Mainland)
Brand Name: KACISE
Model Number: KUM
Payment & Shipping Terms:
Minimum Order Quantity: 0-100
Price: Negotiable
Packaging Details: Carton or customers requests available
Delivery Time: 5 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000 Piece/Pieces per Week ultrasonic sensor distance 10 meter
Contact Now
Detailed Product Description
Accuracy: 0.5%-1% Range: 5m, 10m, 15m, 20m, 30m
Analog Output: Four Wire 4~20mA/510Ωload Digital Output: RS485, RS232 (optional)
Relay Output: 4 Way AC 250V/ 5A Or DC 30V/ 5A (optional) Power Supply: Default: 24VDC, Optional: 220V AC+15% 50Hz
High Light:

ultrasonic fluid level sensor

,

ultrasonic liquid level sensor

RS485 Split Type Ultrasonic Level Difference Meter 5-30M ultrasonic level gauge


Product Description

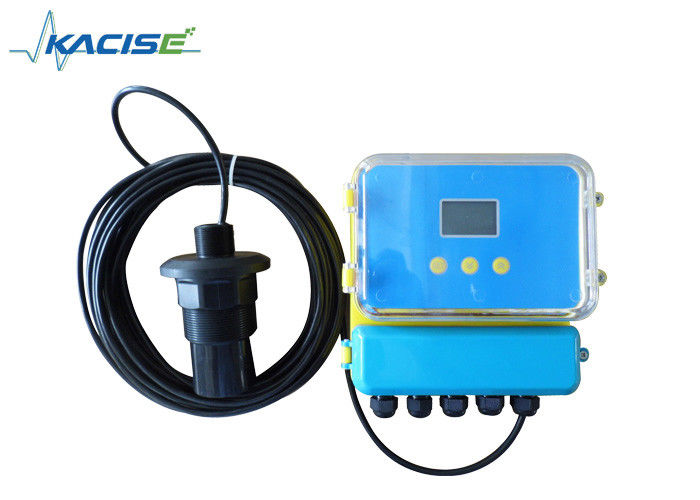

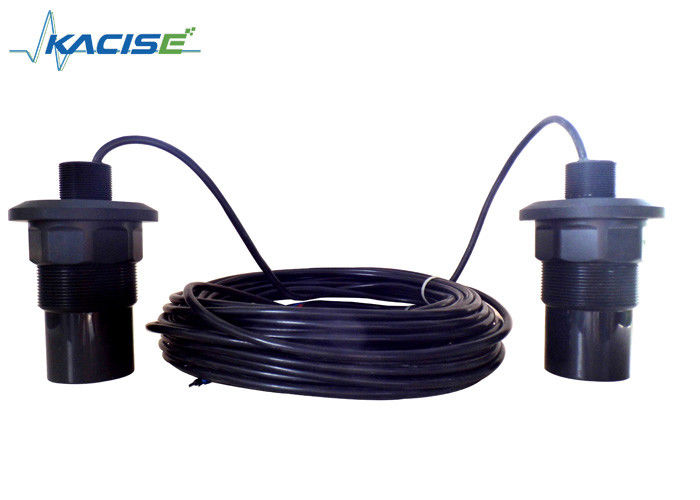

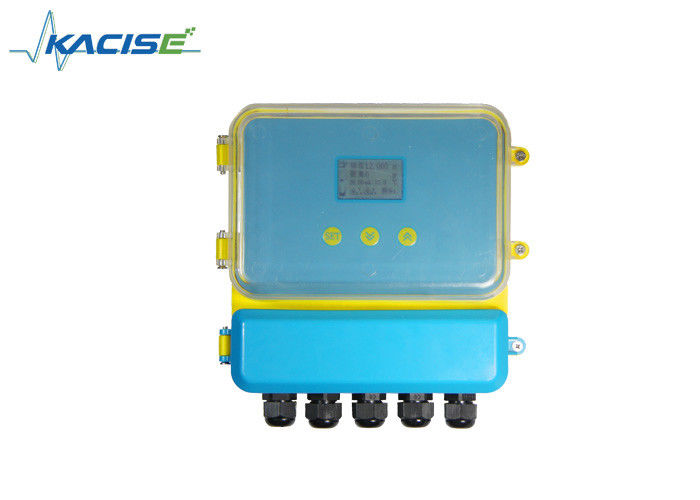

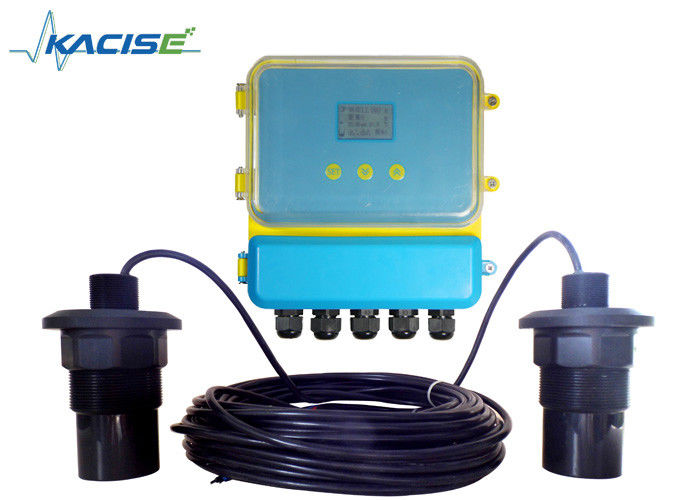

Split type ultrasonic level difference meter is consists of two probes. Usually installed in front and behind of thick and thin gratings to measure the difference before and behind the grating. When the difference is reach to the set value, the grating machine will start to run to clean the sludge, and will stop when the difference is lower than set value..



Parameters



Function Split Type
Range 5m, 10m, 15m, 20m, 30m
Accuracy 0.5%-1%
Resolution 3mm or 0.1%(which is bigger)
Display English LED Display
Analog Output Four wire 4~20mA/510Ωload
Digital Output RS485, RS232 (optional)
Relay Output 4 way AC 250V/ 5A or DC 30V/ 5A (optional)
Power Supply Default: 24VDC, Optional: 220V AC+15% 50Hz
Environment Temperature LED: -20~+60℃, Probe : -20~+80℃
Protection Grade LED: IP65, Probe: IP68
Cable Probe 10m
Installation Thread or Flange



Installation



RS485 Split Type Ultrasonic Level Difference Meter 5-30M ultrasonic level gauge 0



     Structure of product



Solid measurement



Installation flange



The installation method is the same as liquid measurement. It can install on the flange which joint the connected tube of container. The axis must aim to container outlet or perpendicular to the media surface, the probe should be able to come out of the connected-tube.



RS485 Split Type Ultrasonic Level Difference Meter 5-30M ultrasonic level gauge 1





Operating instructions of Ultrasonic Level Difference Meter menu



The ultrasonic level difference meter which has Chinese and English menu and simple

setup, can meet different requirements from customer. Normally, after followed installation instruction, then set several parameters, it will start to work.

Simple operation:

1. Key: Our products can be debugged through three keys on the panel. Then, the measured value is showed by LED.RS485 Split Type Ultrasonic Level Difference Meter 5-30M ultrasonic level gauge 2

2.After switched on of our product, press the SET key for two second and enter the first level menu.

3.The height value of probe(No.1) inputs to the “reference zero 1”, the “reference zero 1"position can be found structure table in the menu. (the height of probe is the distance from the launch surface of probe to the bottom).

4.The height value of probe(No.2) inputs to the “reference zero 2”. the “reference zero 2"position can be found structure photo of the menu.

5.Set “4mA ”corresponds difference value and "20mA corresponds difference value.

4mA corresponds difference value :output is 4mA, when the difference value equal to

setting value.

20mA corresponds difference value:output is 20mA, when the difference value equal to

setting value.

“As the corresponds difference value and "20mA corresponds difference value, please

check the structure photo of menu.



RS485 Split Type Ultrasonic Level Difference Meter 5-30M ultrasonic level gauge 3



One. Application

Ultrasonic level difference meter (material, liquid), is used to measure height differences of level or material level in the two different of containers.

Three. Wiring



RS485 Split Type Ultrasonic Level Difference Meter 5-30M ultrasonic level gauge 4

Electrical wiring of ultrasonic level difference meter



RS485 Split Type Ultrasonic Level Difference Meter 5-30M ultrasonic level gauge 5Terminal of ultrasonic level difference meter



Wiring instruction



Grounding: First ground terminal of instrument must be grounded actually. Do not share the

ground terminal with other devices. Pick up 4th Terminal. Transducer:Red: Trans_n transducer n

Blue: Temp n + temperature sensor +

Black: GND earth wire

single probe: n=1, double probes, n=1,2 Current:“current+”connect mA n+;

“current-”connect mA n-/GND

single probe: n=1, double probes, n=1,2 Relay:RLlnA and RLnB show open;

RLnA and RLnC show closed. Single probe: n=1,2 double probes, n=1,2,3,4

Power: power AC connect L, N power DC: 24V+ connect 24VDC+,

GND connect 24VDC-

Note:

① Delay 1 is used for probe1 alarm, delay 2 is used for probe2 alarm.

Delay 3 and delay 4 are used for difference alarm.

② ★ The output of mA1+ and mA- is difference current.

The default output of mA2+ and mA- is probe 2 current or choose the probe 1 current.( select from “9 work mode”-------“2 the output of mA 2”)

★ As the running mode of double material level, the output of mA 1+ and mA-is probe 1 current. The output of mA2+ and mA- is probe 2 current.

Warranty receipt card of ultrasonic level meter and ultrasonic level difference meter



Name
Address
contact person   phone
Product model   Product No.
Date of acceptance   Installation charge



Warranty card instructions of ultrasonic level meter



Product model   Product No.
Date of acceptance   Installation charge



1,Warranty Policy:

1. Please show warranty card, when user need maintenance. Within the warranty period, the failure caused by normal use can enjoy the free maintenance according to warranty card.

2. The warranty period: product warranty period is commenced from the date of acceptance within 12 months.

The following situation without free warranty:

1. Product or other components beyond the warranty period.

2. Due to the use environment can’t meet product requirements, as a result, the hardware doesn’t work.

3. Due to poor power environment or foreign objects into the devices, as a result, lead the failure or damage.

4. Due to failure to follow them according to operation manual and considerations, as a result, lead the failure.

5. Due to force majeure factors such as lightning, water, fire and other natural factors, as a result, lead the failure.

6. Due to unauthorized repair, unauthorized modifications, abuse, as a result, lead the failure.



Restriction notes:

1. Please keep these instructions warranty card safe, lost without payment.



The authority for the interpretation of this warranty card belongs to our company, we have the right to modify the content of this card without prior notice.
