Food Grade Ultrasonic Flow Meter Non Contact Clamp On For Stainless Steel Pipe

Food Grade Ultrasonic Flow Meter Non Contact Clamp On For Stainless Steel Pipe

  • Food Grade Ultrasonic Flow Meter Non Contact Clamp On For Stainless Steel Pipe
  • Food Grade Ultrasonic Flow Meter Non Contact Clamp On For Stainless Steel Pipe
  • Food Grade Ultrasonic Flow Meter Non Contact Clamp On For Stainless Steel Pipe
Food Grade Ultrasonic Flow Meter Non Contact Clamp On For Stainless Steel Pipe
Product Details:
Place of Origin: China
Brand Name: KACISE
Certification: CE
Model Number: KUF2000 Series
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: one carton for one set
Delivery Time: 3-5 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000 sets per month
Contact Now
Detailed Product Description
Pipe Diameter: DN32~6000mm Pipe Material: Steel, Stainless Steel, Cast Iron, Copper, Cement Pipe, PVC, Aluminum, Glass Steel Product, Liner Is Allowed
Output: 4-20mA, OCT Pulse, Relay Communation: RS485 Modbus
Medium: Water, Sea Water, Sewage, Oil, Chemicals , Alcohol, Milk, Beer, Wine, Etc Sensor: Clamp On Type
SD Card: Optional For More Data Storage Power Supply: DC8~36V Or AC85~265V
High Light:

portable clamp on flow meter

,

ultrasonic liquid flow meter

Food Grade Non Contact Clamp On / Snap On / Clip On Ultrasonic Flowmeter For Online Measure







Introduction



KUF2000 series ultrasonic flow meter usually is used in long-term measurement at field. It has three types of sensor to measure the pipe flow: clamp on type, insertion type and inline pipe type.

Clamp on type: The sensors clamp on to the outside of pipes and do not come in contact with the internal liquid. And all the models can become energy meters when connecting to temperature sensors. KUF2000 Series Clamp On Ultrasonic Flowmeter is easy for installation, no need to cut off the pipe and water, no press loss. It support measuring online long-term. Wide range of liquid flow can be measured with the sensor clamped on the pipe.



Inline pipe type: DN15-32 pipes uses π shape inline pipe sensor, DN40 and above uses standard inline pipe sensor. The inline sensors has the advantages of low starting flow rate, high measurement accuracy and no pressure loss.

Insertion type: Only two installation holes are needed on the pipe, user can install the insertion type sensors. By using the hole making tool, the no stop flow installation can be realized. Sensors contact to the fluid directly, the measurement is stable and reliable.





Features

  • 1% accuracy.
  • Wide range for various application fields. (DN32-DN6000)
  • Easy and quick installation. Save time with no pipe cutting or process shutdown.
  • Connect Pt100 temperature transducer, can finish the heat/energy measurement.
  • No obstruction measurement, no pressure loss.
  • No mechanical drive in ultasonic flowmeter, parts are rarely damaged. Maintenance free and long operating life.

Specification



Accuracy ≤1%
Velocity Range 0~±10m/s, Bi-directional measurement
Pipe Size DN32~DN6000
Temperature -30~160℃
Type of Liquid Single liquid can transmit sound wave. such as water, sea water, sewage, oil, chemicals , alcohol, etc
Pipe Material Steel, Stainless steel, Cast iron, Copper, PVC, Aluminum, Glass steel, etc. Liner is allowed
Signal Output

1 way 4-20mA output(impedance 0~1K, accuracy 0.1%)

1 way OCT pulse output( Pulse width 6 ~ 1000ms)

1 way relay output

Signal Input 3 way 4-20mA input, achieve to heat measurement by connecting PT100 platinum resistor.
Interface RS485, support MODBUS
Data Storage SD card regularly store the pre-set results (optional)
Power Supply DC8~36V or AC85~264V or battery




















Food Grade Ultrasonic Flow Meter Non Contact Clamp On For Stainless Steel Pipe 0

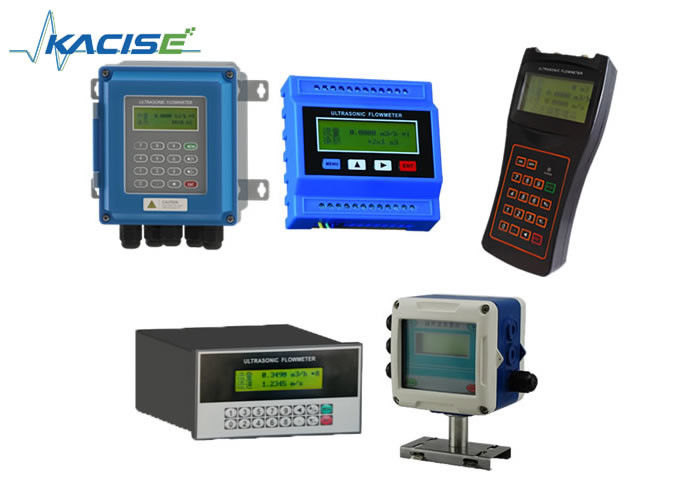

Optional Flow Meter Main Unit



Food Grade Ultrasonic Flow Meter Non Contact Clamp On For Stainless Steel Pipe 1

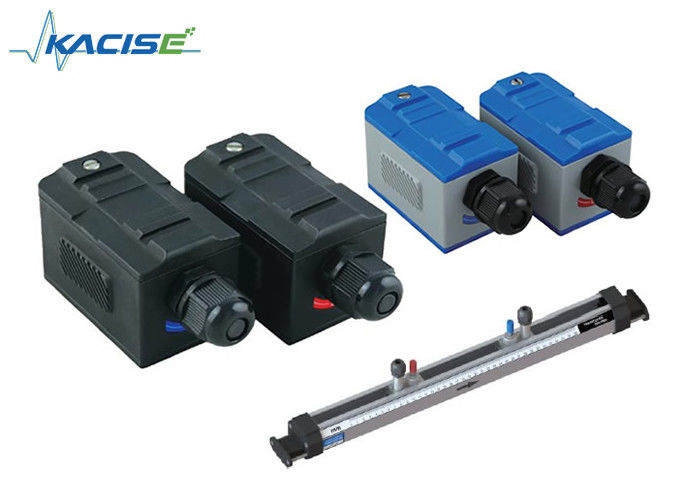

Optional Clamp On Sensors

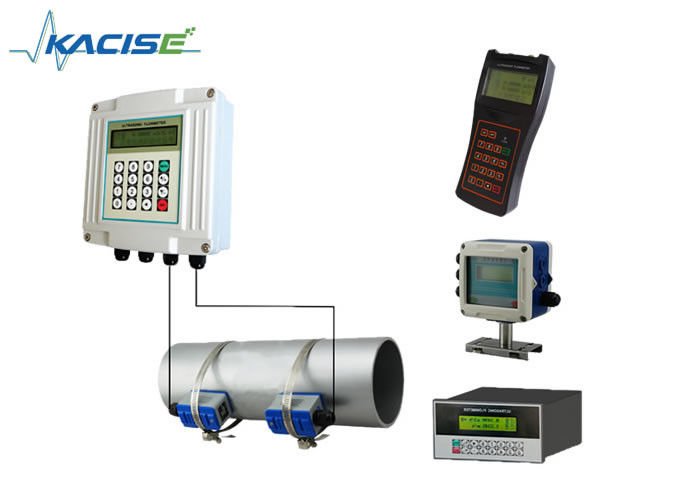

1. Standard Clamp On Sensor



  • Built-in magnet, easy to be absorbed on pipe
  • IP68
  • Measuring range: DN32~DN6000
  • Temperature range: - 30~90℃
Food Grade Ultrasonic Flow Meter Non Contact Clamp On For Stainless Steel Pipe 2



Type Model Measuring Range Temperature Dimension
Small Size TS-2 DN32~DN100 - 30~90℃ 45×25×28mm
Middle Size TM-1 DN50~DN700 - 30~90℃ 64×39×44mm
Large Size TL-1 DN300~DN6000 - 30~90℃ 97×54×53mm




2. High Temperature Clamp On Sensor

  • Built-in magnet, easy to be absorbed on pipe
  • IP68
  • Measuring range: DN32~DN6000
  • Temperature range: - 30~90℃
Food Grade Ultrasonic Flow Meter Non Contact Clamp On For Stainless Steel Pipe 3



Type Model Measuring Range Temperature Dimension
Small Size TS-2 DN32~DN100 - 30~160℃ 45×25×28mm
Middle Size TM-1 DN50~DN700 - 30~160℃ 64×39×44mm
Large Size TL-1 DN300~DN6000 - 30~160℃ 97×54×53mm



3. Mounting Bracket Clamp On Sensor

clamp on ultrasonic flowmeter


Optional Temp. sensor

Food Grade Ultrasonic Flow Meter Non Contact Clamp On For Stainless Steel Pipe 5


Ordering Information



Food Grade Ultrasonic Flow Meter Non Contact Clamp On For Stainless Steel Pipe 6
