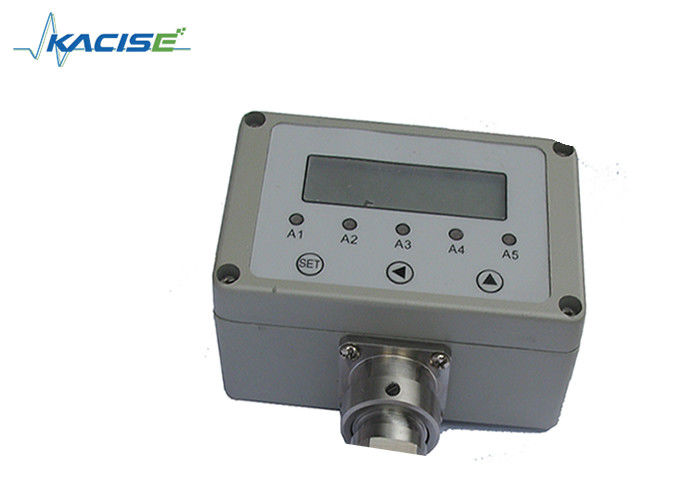

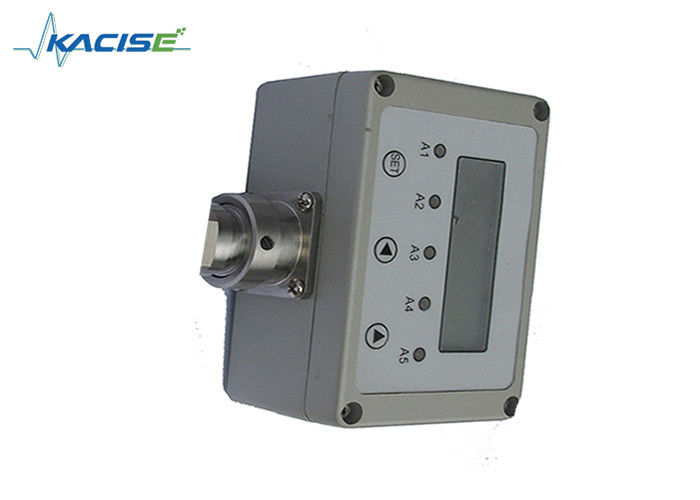

Two Output Various Connector andPpressure Port Square Intelligent Pressure Transmitter

Two Output Various Connector andPpressure Port Square Intelligent Pressure Transmitter

  • Two Output Various Connector andPpressure Port Square Intelligent Pressure Transmitter
  • Two Output Various Connector andPpressure Port Square Intelligent Pressure Transmitter
  • Two Output Various Connector andPpressure Port Square Intelligent Pressure Transmitter
  • Two Output Various Connector andPpressure Port Square Intelligent Pressure Transmitter
Two Output Various Connector andPpressure Port Square Intelligent Pressure Transmitter
Product Details:
Place of Origin: China
Brand Name: Kacise
Certification: CE
Model Number: GXPS600A
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: normal
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000 per week
Contact Now
Detailed Product Description
Pressure Range: ±5kPa……±10000kPa Pipeline Pressing: 3,5,10 Times Nominal Pressure
Stability: Typical Value 0.25%F.S, Max.: 0.5%F.S Compensated Temperature Range: -10℃~70℃
Electrical Properties: 2 Wire System Output Signal: 4~20mA
High Light:

piezoresistive pressure transmitter

,

explosion proof pressure transmitter

 GXPS600A  Two Output Various Connector and Pressure Port Square Intelligent Pressure Transmitter
Introduction

The GXPS600A series pressure transmitter is an intelligent, high-precision, high reliability, high stability of the product. Widely used in gas, liquid pressure detection, such as water, oil, mild corrosive liquids and gases.

The digitization of the product is on-site display.
Can be both a digital RS485 and relay output, both are very good consistency.

Two-wire loop output leads non-polarity; the three-wire voltage output for AC and DC.









Feature

  • Accuracy: ±0.5%F.S
  • Diffusion silicon core body
  • Various connector and pressure port
  • Function modularization, selectable
  • Digital and switching value two output form
  • Bidirectional communication, can network control



Electronic interface and signals definition


Two Output Various Connector andPpressure Port Square Intelligent Pressure Transmitter 0Two Output Various Connector andPpressure Port Square Intelligent Pressure Transmitter 1

Parameter


Spec. Value
Pressure range 0~2MPa......60MPa
Load pressure 1.5times nominal value pressure (1.5X)
Rupture pressure 3times nominal value pressure (3X)
Accuracy ±0.5%F.S
Stability Typical value 0.2%F.S,
Operating temperature -20°C~60°C
Electrical performance Switch value output Digital output
Output signal 5 way relay RS485
Power supply 10~30Vdc
Insulation >100M Ω@50V
Electrical connection Double row terminal
Pressure port M20×1.5, G1/2, G1/4, NPT1/2, NPT1/4
Pressure type G, S Response time: 10ms
Certificate Intrinsically safe mode E, CE
EMI/EMC EMI: EN50081-1/-2; EMC: EN50082-2



Application

  • Hydroelectric power
  • Floor house water supply
  • Hydraulic control
  • Petrochemical
  • Pressure instruments
  • Automatic detection system
  • Energy and water treatment
  • Wells real time management



Ordering information


GX-Type-Range-Output-Power-Pressure port-Electric connection-Cable length-Package

  • Type: PS600A =universal type
  • Range: 0~2…60MPa/0~20bar…600bar= the upper limitation of the range
  • Output::RS4+5K=RS485+5way relay
  • Power: 10~30Vdc
  • Pressure port : M=M20×1.5, G=G1/4, G2=G1/2, N1=NPT1/4, N2=NPT1/2
  • Electric connection: J= connecting terminal
  • Cable length: XXm=XX meter 1-150m
  • Package: Bb, Foam
