Kacise Coriolis Mass Liquid Flow Meter High Stability With LCD Display

Kacise Coriolis Mass Liquid Flow Meter High Stability With LCD Display

  • Kacise Coriolis Mass Liquid Flow Meter High Stability With LCD Display
  • Kacise Coriolis Mass Liquid Flow Meter High Stability With LCD Display
  • Kacise Coriolis Mass Liquid Flow Meter High Stability With LCD Display
  • Kacise Coriolis Mass Liquid Flow Meter High Stability With LCD Display
Kacise Coriolis Mass Liquid Flow Meter High Stability With LCD Display
Product Details:
Place of Origin: Shaanxi, China (Mainland)
Brand Name: KACISE
Model Number: KMF-Series
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece/Pieces
Price: USD200-6000
Packaging Details: carton or customers requests available
Delivery Time: Shipped in 7 days after payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 3000 Piece/Pieces per Month
Contact Now
Detailed Product Description
Product Name: Coriolis Mass Flowmeter Measuring Rang: 0~1000t/h
Diameter: 3~250mm Transmitter Output: 4-20mA; 0-10KHz; RS485 Modbus RTU; HART
Pressure Rating: 0~4.0MPa Temperature Rating: -50~350℃
Display: LCD Display Accuracy Class: 0.10~0.20%
High Light:

liquid mass flow meter

,

coriolis type mass flow meter

0.1 Precision Grade KMF-1-Series High Quality Liquid Coriolis Mass Flowmeter



flow meter Features

Product Description



Kacise Mass Flow Meters patented and developed by our company (Chinese Patent No. 03119685.3, 03149996.1) are the leading meters for precision flow measurement. And with good reason, the meters offer the most accurate measurement available for virtually any process fluid, while exhibiting exceptionally low pressure drop. The meters offer direct mass flow, volume flow, density, and temperature measurement of liquids and slurries — without the need for additional equipment, manual calculations, or estimations.

The meters are designed for unsurpassed performance in even the harshest operating environments. They have no moving parts, and any special mounting or flow conditioning requirements. Every meter is available with stainless steel wetted parts and a wide variety of process connections to meet your every need.

The meters carry hazardous area approval for P. R. China.



Principles of Measurement



The structure of Coriolis Mass Flow Meters was consisted of a pair of bended tubes. The principle is to detect Coriolis force forced a pair of tubes from inner mass flow by fluid.

A new force—Coriolis force would be appear while two conditions met: (1) vibrating with normal frequency in a pair of bended tubes, (2) fluid flowing in tubes. This force was produced upon synthesis from vibrating force and flowing force by fluid in tubes. And tubes would be wresting symmetric the center line because the force forced. Two displacement sensors on sides of tubes detect the force and output electric signals. The signals regulated, mass flow directly produced.



Configurations of Products

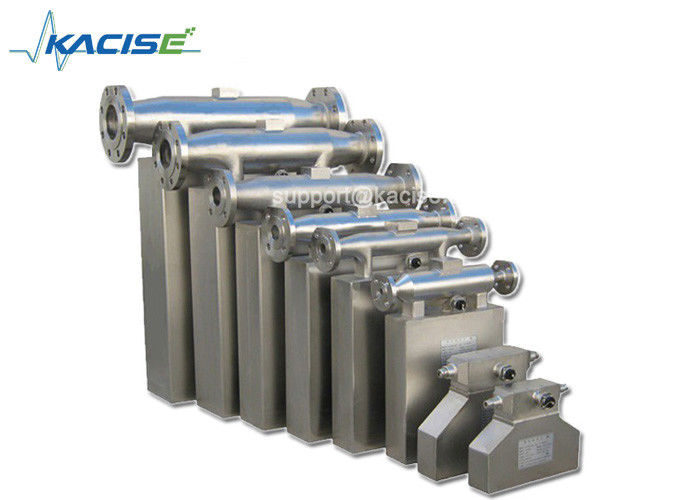

Classify of Products



Kacise Coriolis Mass Liquid Flow Meter High Stability With LCD Display 1



Configurations

Kacise Coriolis Mass Liquid Flow Meter High Stability With LCD Display 2

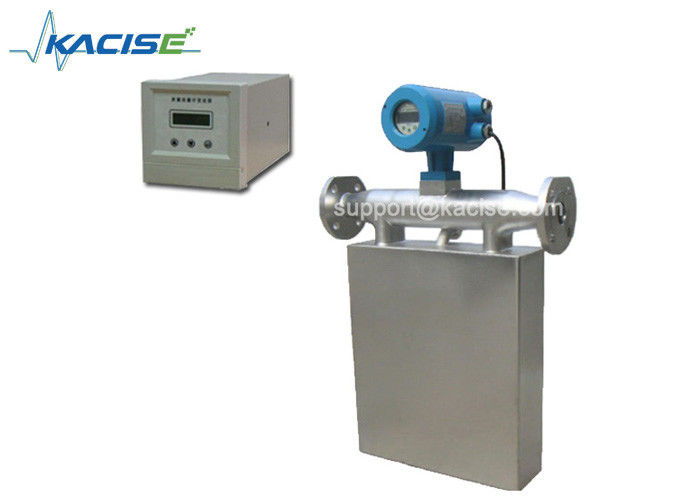

Figure 2 Essential Safety Transmitter Figure 3 Composite Transmitter and Sensor

Every meter consists of two parts: the sensor (primary meter) and the transmitter (secondary meter).

There are a vibrator, two displacement sensors and a temperature sensor in the sensor (primary meter).

The transmitter (secondary meter) is display part of the meter, also is electrical part. Its foundational functions are receiving and regulating the electrical signal from sensors. It can display, output, store and long distance transmit, and you can modify the parameters of flow meter. There is a diode safety barrier in transmitters; the function of the diode safety barrier is safeguard to isolating explosion.



Parameters



Module DN Measurement Scope Work Pressure (MPa) Connection Type(mm)
KMF-1-1AB 1.5 0~4(kg/h) 0~4 Weld Joints Φ6×1.5
KMF-1-1A 3 0~40(kg/h) 0~4 Weld Joints Φ6×1.5
KMF-1-1B 6 0~100(kg/h) 0~4 Weld Joints Φ10×2
KMF-1-2A 8 0~200(kg/h) 0~4 Weld Joints Φ10×1
KMF-1-3A 10 0~500(kg/h) 0~4 Flange DN10
KMF-1-3B 15 0~1000(kg/h) 0~4 Flange DN15
KMF-1-4 20 0~3000(kg/h) 0~4 Flange DN20
KMF-1-5A 25 0~10(T/h) 0~4 Flange DN25
KMF-1-5B 40 0~20(T/h) 0~4 Flange DN40
KMF-1-6A 50 0~30(T/h) 0~4 Flange DN50
KMF-1-6AB 65 0~50(T/h) 0~4 Flange DN65
KMF-1-6B 80 0~100(T/h) 0~2.5 Flange DN80
KMF-1-6C 100 0~150(T/h) 0~2.5 Flange DN100
KMF-1-6CD 125 0~200(T/h) 0~2.5 Flange DN125
KMF-1-6D 150 0~400(T/h) 0~2.5 Flange DN150
KMF-1-6E 200 0~500(T/h) 0~2.5 Flange DN200



Mass flow meter installation



Kacise Coriolis Mass Liquid Flow Meter High Stability With LCD Display 3



Instrument Selection



mass flowmeter lectotype 1mass flowmeter lectotype 2


Applied Range

Our products are widely used in petroleum, chemical, metallurgy, electricity, food, pharmaceutical, environmental protection and energy fields. More than 30 provinces and cities across the country, and exports in some countries.

Work Shop


Kacise Coriolis Mass Liquid Flow Meter High Stability With LCD Display 6



Delivery details



7 working days quick delivery. / Suggested Express company: DHL.



Kacise Coriolis Mass Liquid Flow Meter High Stability With LCD Display 7

our service



1. Q: May I put my own logo on the product?

A: Sure. Logo can be printed on the housing, and company name can be engraved on the nameplate.

2. Q: How about the quality control?

A: All products will be tested for 3 times before packed.

3. Q: May I release trial order, 1 pc for example?

A: Certainly, trial order is acceptable. In general, we have common models in stock. Sample will be sent within 1 week, after payment is received.

4. Q: Could you design according to my requirements?

A: Of course, our team will design for you, to make our Liquid mass flow meter work perfectly at your end.
