| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Model Number: | KUA series |
| Minimum Order Quantity: | 1ps |
|---|---|
| Price: | Negotiable |
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Delivery Time: | 5-8 work day |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal |
| Supply Ability: | 1000 Pieces per Week |
| Frequency: | 16KHz±5%，21KHz±5% | Range: | 1.8～50m，1.0～30m |
|---|---|---|---|
| Minimum Impedance: | 790Ω±20％，1500Ω±20％，530Ω±20％ | Capacitance: | 12700pF±20％ @1KHz，12000pF±20％ @1KHz，10700pF±20％ @1KHz |
| Weight: | 2400g±5％，2000g±5％，1740g±5％ | Working Voltage: | -40～+80℃， |
| Pressure: | ≤3kg Or 0.3MPa | Angle: | (Beam Width) Half-power Angle@-3dB:13°±2; Sharpness Angle: 30°±4; |
| Housing Material: | POM，PC | IP Grade: | IP68 |
| High Light: | waterproof ultrasonic sensor,industrial ultrasonic sensor |
||
IP68 30 50m Range 16KHz 21KHz Range waterproof ndt Ultrasonic Transducer Probe Sonicator
1. Product Description
The ultrasonic transducer is a device that converts the signal of a different kind of energy into a device that requires an ultrasonic or signal or energy. Or, conversely, the ultrasonic signal or energy converted into another form of signal or energy device, widely used in industry, agriculture, transportation, life, medical and military affairs.
The ultrasonic transducer of our company is mainly divided into gas and liquid ultrasonic transducer with a wide range of measurements, applying to weak acid and base, strong acid and strong base, explosion and other environment.
2. Paramters

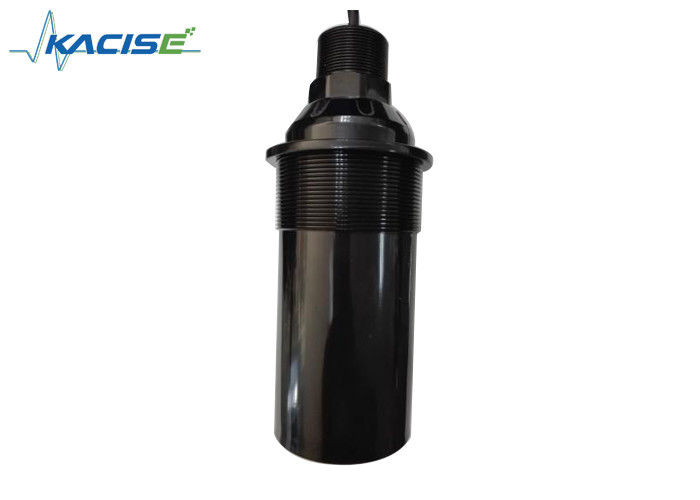

| Name | 50m Range Common Transducer Model D |
| Model | KUA-15-50D-F |
| Frequency | 16KHz±5% |
| Range | 1.8～50m |
| Minimum impedance | 790Ω±20％ |
| Capacitance | 12700pF±20％ @1KHz |
| Sensitivity |
emits voltage:520Vpp,distance 0.6m, echo amplitude 1200mV |
| Working voltage | Peak point voltage＜1500VPP |
| Working temperature | -40～+80℃ |
| Pressure | ≤3kg or 0.3MPa |
| Angle |
(Beam width) half-power angle@-3dB:13°±2; Sharpness angle: 30°±4; |
| Housing material | POM |
| Usage | ultrasonic level meter, ultrasonic anti-collision, ultrasonic distance sensor |
| IP grade | IP68 |
| Weight | 2400g±5％(cable length: 10m) |

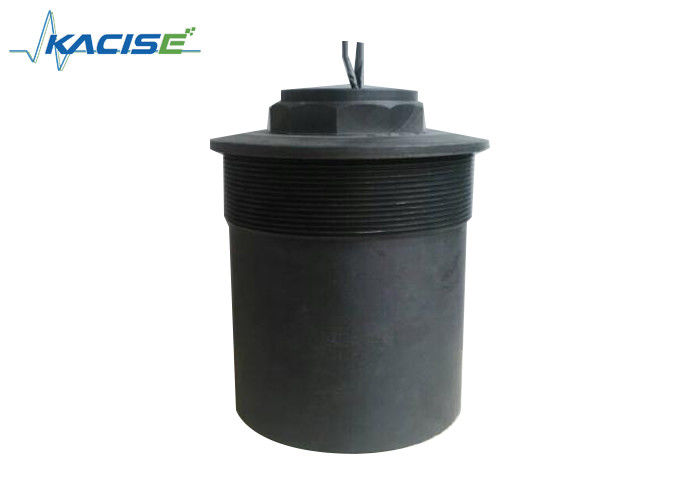

| Name | 50m Range Common Transducer Model D |
| Model | KUA-15-50D |
| Frequency | 16KHz±5% |
| Range | 1.8～50m |
| Minimum impedance | 1500Ω±20％ |
| Capacitance | 12000pF±20％ @1KHz |
| Sensitivity |
emits voltage:520Vpp,distance 0.6m, echo amplitude 1100mV |
| Working voltage | Peak point voltage＜1500VPP |
| Working temperature | -40～+80℃ |
| Pressure | ≤3kg or 0.3MPa |
| Angle |
(Beam width) half-power angle@-3dB:13°±2; Sharpness angle: 30°±4; |
| Housing material | POM |
| Usage | Ultrasonic level meter, anti-collision, ultrasonic distance sensor |
| IP grade | IP68 |
| Weight | 2000g±5％ |

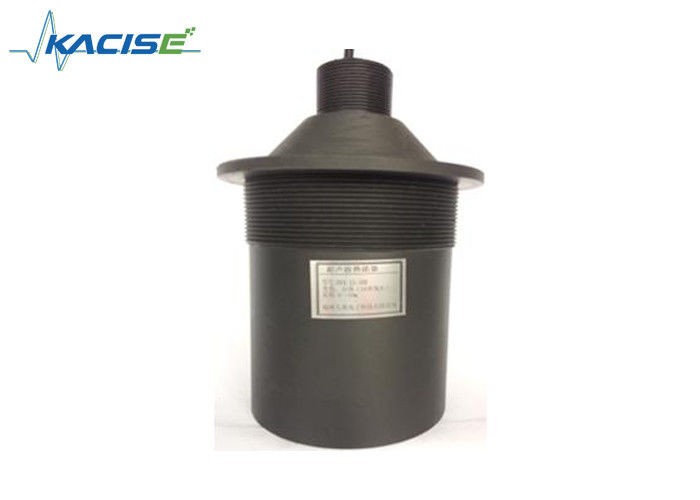

| Name | 30m Range Common Transducer Model C |
| Model | KUA-21-30C-F |
| Frequency | 21KHz±5% |
| Range | 1.0～30m |
| Minimum impedance | 530Ω±20％ |
| Capacitance | 10700pF±20％ @1KHz |
| Sensitivity |
emits voltage:520Vpp,distance 0.6m, echo amplitude 380mV |
| Working voltage | Peak point voltage＜1500VPP |
| Working temperature | -40～+80℃ |
| Pressure | ≤3kg or 0.3MPa |
| Angle |
(Beam width) half-power angle@-3dB:13°±2; Sharpness angle: 31°±4; |
| Housing material | PC |
| Usage | ultrasonic level sensor, monitor, anti-collision, security |
| IP grade | IP68 |
| Weight | 1740g±5％(cable length: 10m) |
3.Feature
4.Application Field
5.Measuring Condition
The “Range” in Air Transducer Catalogue is tested at below conditions:
1. natural air, no volatile gas, no steam, no dust
2. air in a relatively quiescent state, no flow
3. Temperature: between 20~25℃
4. Pressure: 1 standard atmospheric pressure
5. Environment: There is no obstacle around a certain range.
