| Place of Origin: | China |
| Brand Name: | KACISE |
| Certification: | CE |
| Model Number: | KUS500M |
| Minimum Order Quantity: | 0-100 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | carton with bubble |
| Delivery Time: | 3-5 work days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 pieces per month |
| Range: | 2000mm | Blind Zone: | 200mm |
|---|---|---|---|
| Power Supply: | 14.5VDC~27VDC | Output: | Switch And 0-10V And RS485 Together |
| Temperature: | 0~70℃ (-40~85℃, -55~125℃, Etc, Customizable) | Material: | Plastic |
| High Light: | ultrasonic fluid level sensor,ultrasonic level transmitter |
||

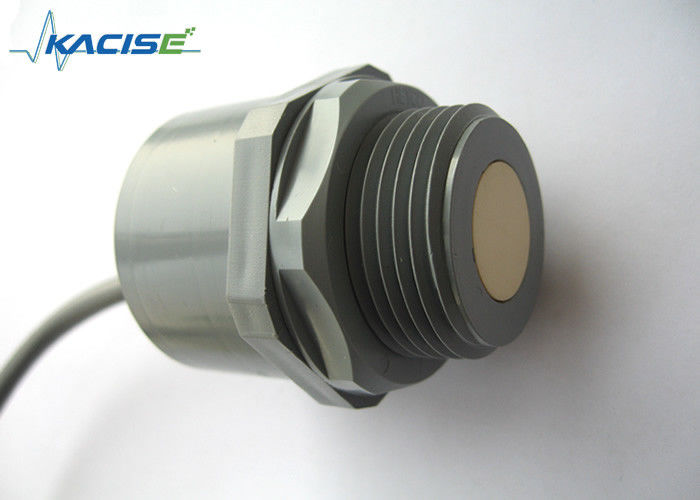

Compact 3 outputs 0-10V / Switch / RS485 Ultrasonic Sensor for Distance and Level Measurement
Features
. Designed for outdoor or indoor environments
. High sensitivity
. Free run operation can continually measure and output range information
. 12-30 supply with very low average current draw
. 0-10V with RS485 interface.
.The analogue output can be set between 0-10V can work with the switch output.
. Low Power Consumption;
. PC Software Operation;
. Small Volume, Easy to Use and Stall; small size, easy to use and install
. User-Programmable Internal and External Temperature Compensation
Introduction
KUS500M using a high-performance import transducer, and the core part adopts advanced frequency detection circuit, then through accurate flight time measurement technology and single chip microcomputer internal or external temperature measuring system of precise temperature compensation, it will measure distance into a standard electrical signals. According to the requirements, output can be selected to simulate output, such as 0～10V, 4～20mA; Switching volume output, such as NPN(NO/NC), PNP(NO/NC); or any of the RS485.
Appliactions
. Tank / bin level measurement
. Proximity zone detection
. People detection
. Robot ranging sensor
. Autonomous navigation
. Multi-sensors navigation
. Distance measuring
. Long range object detection
. Industrial automation
Parameters
| General Parameters | Mechanical Properties | ||
| Detection Range | 200mm~2000mm | Connection | 5 pin cable |
| Transducer Frequency | 125KHZ | Weight | 100g |
| Repeatability Precision | ≤1% | IP grade | IP67 |
| Response Time | ＜50ms | ||
| Beam Angle | 7°±2 | ||
| Temp. Compensation | inside/outside/fix temp. | ||
| Electrical Parameters | |||
| Operating Voltage | 14.5VDC~27VDC | ||
| Limit Working Voltage | 13VDC~30VDC | ||
| Power Consumption | ≤30mA | ||
| Circuit Protection | short-circuit protection, overload protection | ||
| Output (3 in 1) | Digital Output | RS485 | |
| Analogue Output | 0~10V | ||
| Switch Output | 0V / 10V | ||
| Ambient Environment | |||
| Operating Ambient Temp. | 0~70℃ (-40~85℃, -55~125℃, etc, customizable) | ||
| Storage Temperature | -55~125℃ | ||
FAQ
1. Q: What information need to be provided to choose the suitable model?
A: Please provide us: application field, range , output signal, medium, power supply, so we can choose model and quote for you quickly.
2. Q: Are you a trade company or a manufacturer?
A: We are an ISO approved manufacturer specialized in level and flow measuring instruments.
OEM & ODM service are available. Welcome to visit us.
3. Q: What is your MOQ?
A: To start our cooperation, sample order is acceptable.
4. Q: What is your delivery date?
A: The delivery date is about 3-15 working days after receipt of payment.
5. Q: What is your payment terms?
A: We support T/T, PayPal and Trade Assurance.
For mass production order, it is 30% deposit in advance and 70% balance before shipment.
6. Q: What is Trade Assurance payment method:
A: It’s a free service which can protect your orders from payment to delivery.
And we now have USD104,000.00 of caution money to assure your orders.
7. Q: Do you have a warranty?
A: Yes, we have the warranty of 12 months.
