| Place of Origin: | Shaanxi, China (Mainland) |
| Brand Name: | kacise |
| Certification: | CE |
| Model Number: | GXPS607A |
| Minimum Order Quantity: | 1 PIECE |
|---|---|
| Price: | negotiable |
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 2000 Piece/Pieces per Week |
| Pressure Range: | 0~2Mpa….60Mpa | Accuracy: | ±0.25%F.S |
|---|---|---|---|
| Operating Temperature: | -40°C~85°C | Power Supplier: | 10~30Vdc |
| Pressure Port: | M20×1.5, G1/4, G1/2, R1/2, NPT1/2 | Protection Grade: | IP65 |
| High Light: | high accuracy pressure sensor,piezoresistive pressure transmitter |
||
Application
Feature
Introduction

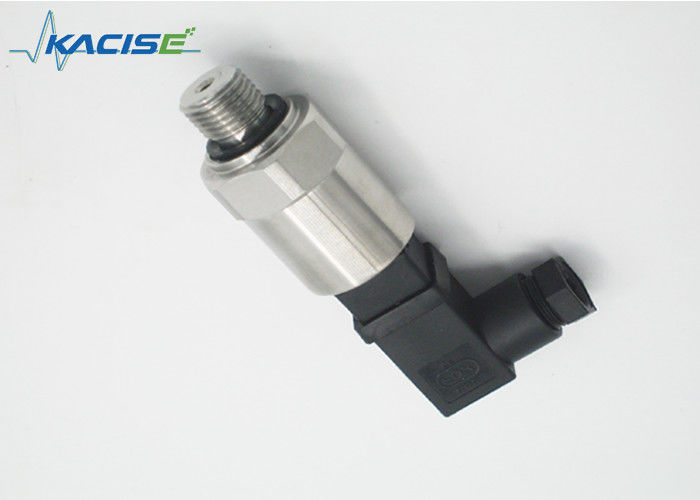

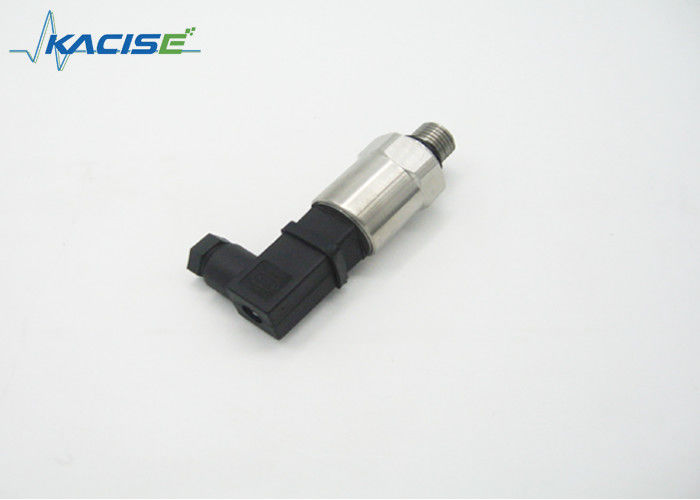

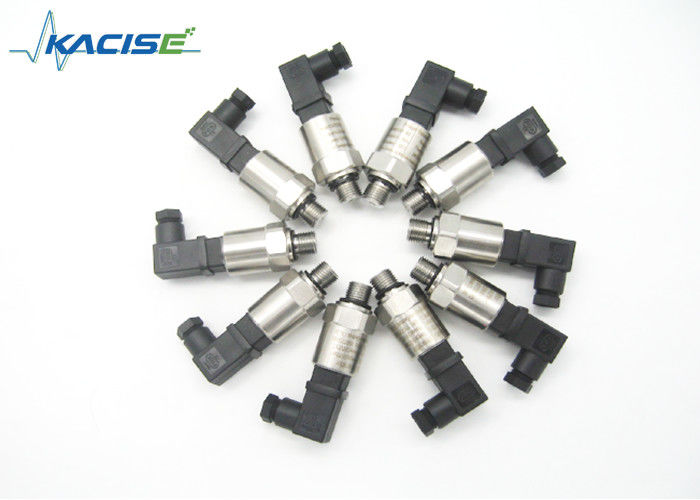

The GXPS607A pressure transmitter has characteristics of high reliability, high stability, high accuracy. Widely used in the gas and liquid pressure detection, for example, water, oil, liquid and gas.
The GXPS607A embedded CAN field bus controller and transceiver, two-way communication can be realized based on CANBUS. CAN bus is a multi-master network protocol, network, any node can be at any one time took the initiative to other nodes on the network to send messages, message priority arbitration, the maximum degree of reduction of packet transmission delay and avoid conflict. The CAN direct communication at distances up to 10km, and communication rates up to 1Mbps.
Electronic interface and signals definition
Hirschmann joint:
1——VIN+
2——VIN-
3——CANH
——CANL
Parameter
| Spec. | Value |
| Pressure range | 0~2Mpa….60Mpa |
| Overload pressure | 1.5 times nominal pressure |
| Secondary Containment | 3 times nominal pressure |
| Accuracy | ±0.25%F.S |
| Working current | < 70mA |
| Operating temperature | -40°C~85°C |
| Compensated Temperature Range | -40°C~85°C |
| Protection grade | IP65 |
| Communication distance | Max. 10km |
| Power supplier | 10~30Vdc |
| Communication speed | 1Mbps |
| Electric connection | Hirschmann |
| Pressure port | M20×1.5, G1/4, G1/2, R1/2, NPT1/2 |
| Pressure type | G, S G |
| Specification support | Support CAN2.0A and CAN2.0B |
| Protocol support | Support CAN open protocol |
Ordering information
GX-Type-Range-Output-Power-Pressure port-Electric connection-Cable length-Package
