| Place of Origin: | Shaanxi, China (Mainland) |
| Brand Name: | KACISE |
| Model Number: | GX-ROB100 |
| Minimum Order Quantity: | 1 Piece/Pieces |
|---|---|
| Price: | Negotiable |
| Packaging Details: | carton or customers requests available |
| Delivery Time: | 5 working days after payment |
| Payment Terms: | L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 1000 Piece/Pieces per Week negotiable |
| Input Voltage (Vdc): | 7.5 ~ 32Vdc | Performance: | Dip |
|---|---|---|---|
| Measuring Range (°): | ± 15 ~ ± 90 | Bias: | ≤ 0.2 |
| Bias Stability: | ≤ 0.05 | Bias Repeatability: | ≤ 0.05 |
| High Light: | 3 axis gyroscope sensor,gyroscope sensor module |
||

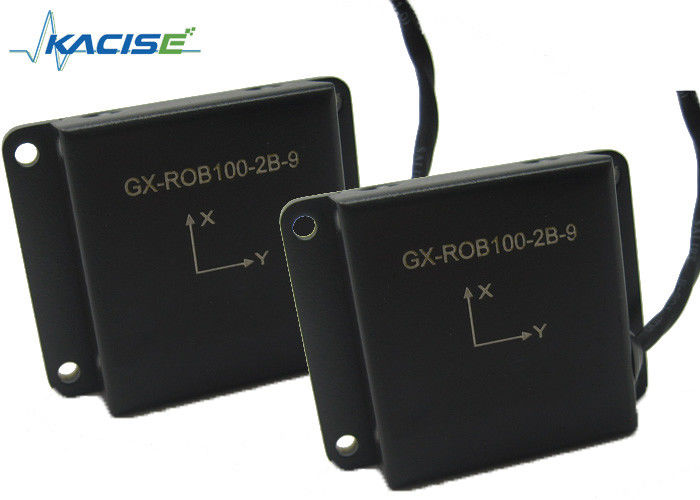

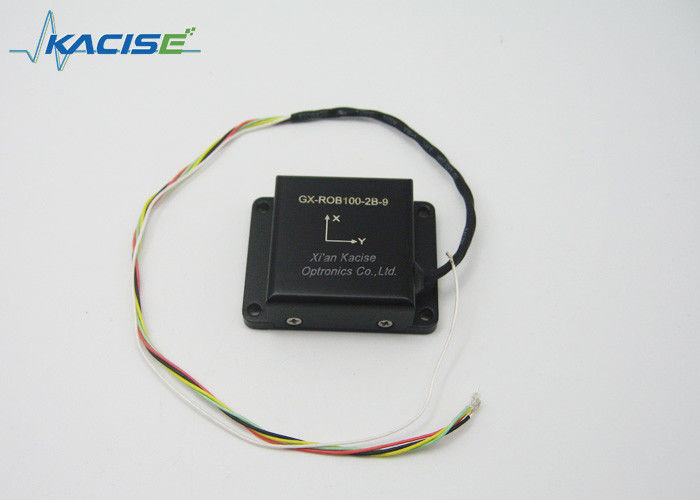

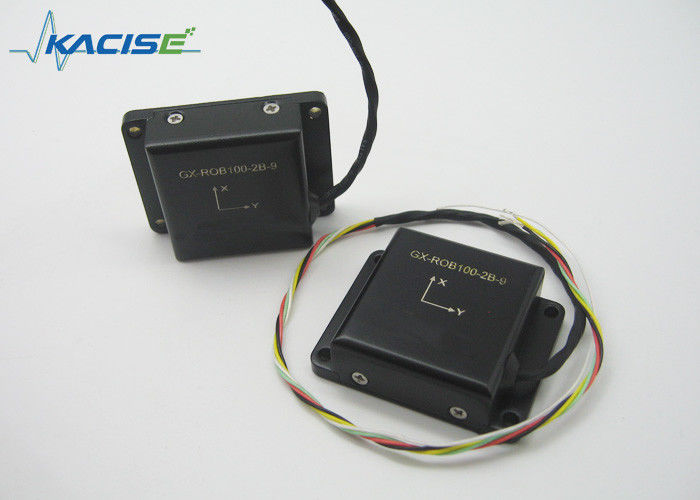

MEMS Gyroscope GX-ROB100 Biaxial inclination Sensor / Biaxial Inclinometer Gyroscopic
Feature
Introduction
Using micro-electromechanical systems (Micro Electro-Mechanical System, MEMS) technology, which combines angular rate and linear acceleration measurement as a whole, for the roll angle, pitch angle, three-dimensional and three-dimensional acceleration angular rate measurements. Attitude angle and angular rate deviation through Kalman filter algorithm to estimate and correct.
Parameter
| Technical parameters | performance indicators |
| Power Requirements | |
| Input voltage (Vdc) | 7.5 ~ 32Vdc |
| Performance | Dip |
| Measuring range (°) | ± 15 ~ ± 90 |
| Bias | ≤ 0.2 |
| Bias stability | ≤ 0.05 |
| Bias Repeatability | ≤ 0.05 |
| Start time (s) | <0.5s |
| Bandwidth | 8-28Hz |
| Resolution(°) | ≤ 0.03 |
| Nonlinearity (% FS) | <0.05% of FS |
| Data refresh rate | 50ms |
| Inter face | RS422 interface |
| Working Temperature | (℃) -40 ℃ ~ +85 ℃ |
| Storage Temperature | (℃) -55 ℃ ~ +100 ℃ |
| Resistance Acceleration(g) | 20000 |
| Weight (g) | <150 |
| Volume (mm3) | 48 * 36 * 15 |
Products should be installed to ensure that X (Y) axis and the measurement reference axis coincides, installation error should be less than 5 '.
Application
1). Angle measuring instruments,
2). Level measurement platform,
3).Platform level control,
4). Measuring instruments and heavy mechanical stability,
5). Acceleration and motion measurement,
6). Automotive control, inertial navigation,
7). Seismic monitoring and other measurement systems
