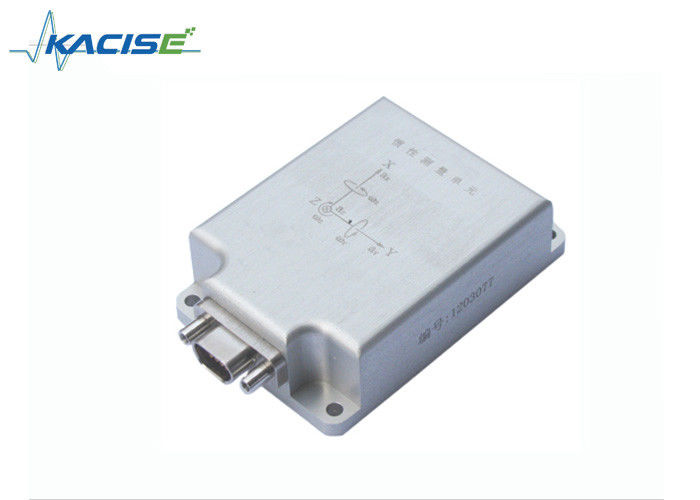

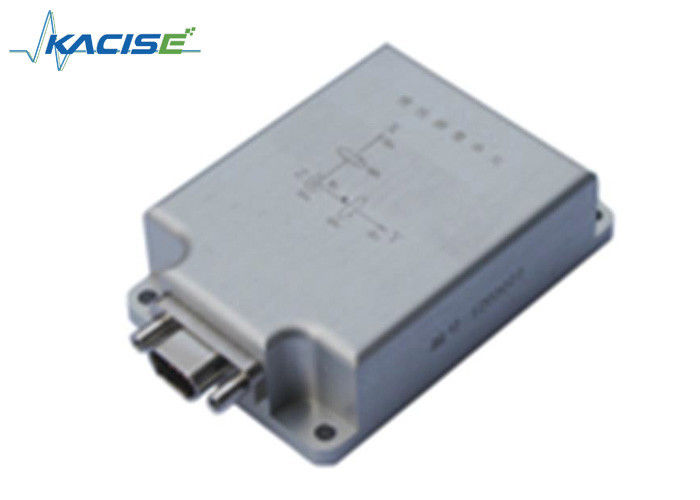

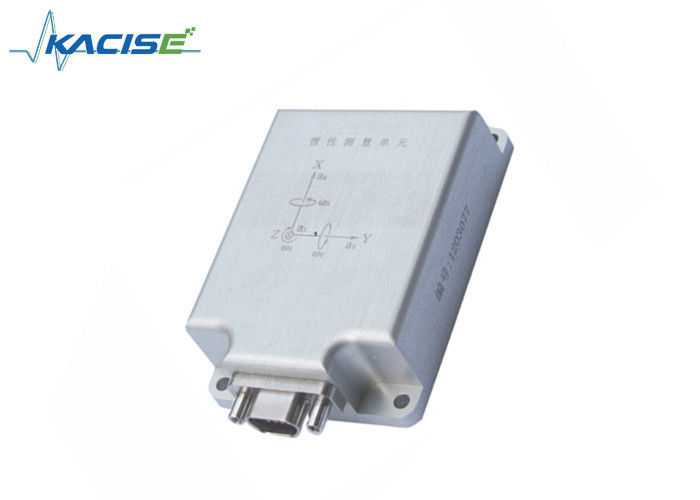

Low Power Consumption Imu Sensor Module 23mA With Digital UART Output

Low Power Consumption Imu Sensor Module 23mA With Digital UART Output

  • Low Power Consumption Imu Sensor Module 23mA With Digital UART Output
  • Low Power Consumption Imu Sensor Module 23mA With Digital UART Output
  • Low Power Consumption Imu Sensor Module 23mA With Digital UART Output
Low Power Consumption Imu Sensor Module 23mA With Digital UART Output
Product Details:
Place of Origin: Shaanxi, China (Mainland)
Brand Name: KACISE
Model Number: K-IMU-900
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece/Pieces
Price: Negotiable
Packaging Details: carton or customers requests available
Delivery Time: 5 working days after payment
Payment Terms: L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 1000 Piece/Pieces per Week negotiable
Contact Now
Detailed Product Description
Input Voltage: 3.3V DC Input Current: 23mA
Output Mode: UART Baud Rate: 9600bps
Dimensions: 59×40×17mm Output Data Format: 16-bit Twos Complement
High Light:

electronic tilt sensor

,

tilt measurement sensor

Digital UART Output IMU For Power Conductor Galloping Monitoring System

Features


☆ Galloping state for detection of overhead power lines

☆ Output three-axis gyroscope and triaxial accelerometer data

☆ Output dancing frequency, acceleration and dance amplitude

☆ Output dance tracks and dance attitude angle

☆ Digital UART output

☆ Low power consumption

☆ Detection capability


Application fields


 ☆ Power conductor galloping monitoring system


S  Specification



Type K-IMU-900
Electric character
Input voltage 3.3VDC
Input current 23mA
Output Mode UART
Baud Rate 9600bps
Output Data Rate
Output Data format 16-bit twos complement
Performance index
Sensor Gyroscope accelerometer
Range ±250 °/s ±15g
Bandwidth ≥50 Hz
Nonlinear (%FS) ≤ 0.2% Fs ≤ 0.5% Fs
Start-up time (ms) ≤ 1 s
Environmental characteristics
Temperature (°C) -40~70
Storage Temperature -55~100
Resistant to shock 2000g
Physical Characteristics
Weight (g) 80g
Dimensions 59×40×17mm



Dimensions

Low Power Consumption Imu Sensor Module 23mA With Digital UART Output 0Low Power Consumption Imu Sensor Module 23mA With Digital UART Output 1Low Power Consumption Imu Sensor Module 23mA With Digital UART Output 2
