| Place of Origin: | Shaanxi, China (Mainland) |
| Brand Name: | KACISE |
| Model Number: | K-IMU700/800 |
| Minimum Order Quantity: | 1 Piece/Pieces |
|---|---|
| Price: | Negotiable |
| Packaging Details: | carton or customers requests available |
| Delivery Time: | 5 working days after payment |
| Payment Terms: | L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 1000 Piece/Pieces per Week negotiable |
| Input Voltage: | 15~30 VDC | Input Current: | ≤ 70mA |
|---|---|---|---|
| Output Mode: | RS-422 | Baud Rate: | 115200bps |
| Weight (g): | 320g | Start-up Time (ms): | ≤ 1 S |
| High Light: | electronic tilt sensor,tilt measurement sensor |
||

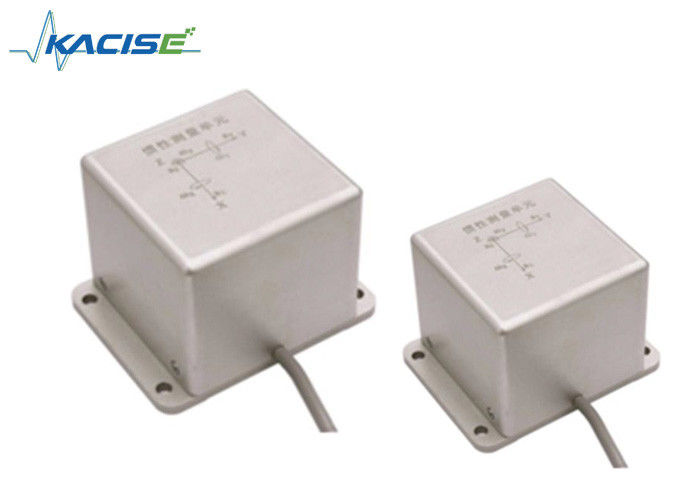

Digital RS422 output Navigation Guidance System Lnertial Measurement Unit
Features
☆ Digital RS422 output
☆ Whole temperature range compensation
☆ Nonlinear correction, Cross coupling correction
☆ impact resistance, vibration performance
Application
☆ System for vehicle rollover
☆ Navigation guidance system
☆ Antenna stable platform system
S Specification
| Type | K-IMU-700 | K-IMU-800 |
| Electric character | ||
| Input voltage | 15~30 VDC | |
| Input current | ≤ 70mA | |
| Output Mode | RS-422 | |
| Baud Rate | 115200bps | |
| Output Data Rate | 200Hz | |
| Output Data format | 16-bit twos complement | |
| Performance index | ||
| Sensor | Gyroscope | accelerometer |
| Range | ±250 °/s | ±15g |
| Bandwidth | ≥50 Hz | ≥100 Hz |
| Resolution (°/s) | ≤ 0.01°/s | 0.005g |
| Nonlinear (%FS) | ≤ 0.1% Fs | ≤ 2% Fs |
| Bias | ±0.15°/s | 0.01g |
| Bias stability | ≤0.015°/s | ≤0.0003g |
| Start-up time (ms) | ≤ 1 s | |
| Environmental characteristics | ||
| Temperature (°C) | -40~70 | -55~70 |
| Storage Temperature (°C) | -55~100 | |
| Resistant to shock | 200g | |
| Physical Characteristics | ||
| Weight (g) | 320g | |
| Dimensions | 78×60×54mm | 90×87×60mm |
