Linearity Uniaxial Accelerometer Sensor 0.5 - 4.5V Wide Measuring Range

Linearity Uniaxial Accelerometer Sensor 0.5 - 4.5V Wide Measuring Range

  • Linearity Uniaxial Accelerometer Sensor 0.5 - 4.5V Wide Measuring Range
  • Linearity Uniaxial Accelerometer Sensor 0.5 - 4.5V Wide Measuring Range
  • Linearity Uniaxial Accelerometer Sensor 0.5 - 4.5V Wide Measuring Range
  • Linearity Uniaxial Accelerometer Sensor 0.5 - 4.5V Wide Measuring Range
Linearity Uniaxial Accelerometer Sensor 0.5 - 4.5V Wide Measuring Range
Product Details:
Place of Origin: China (Mainland)
Brand Name: Kacise
Model Number: K-JSJ-001
Payment & Shipping Terms:
Minimum Order Quantity: 1ps
Price: Negotiable
Packaging Details: each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time: 5-8 work day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal
Supply Ability: 1000 Pieces per Week
Contact Now
Detailed Product Description
Type: K-JSJ-001 Input Voltage: 5±0.25 VDC
Input Current: ≤2 MA Output Mode: 0.5~4.5V
Range: ±1 G Bandwidth: ≥50 Hz
Sensitivity: 1000±30 MV / G Axial Direction: X
Temperature: -40℃~+70℃ Storage Temperature: -40℃~+125℃
High Light:

linear acceleration sensor

,

triaxial acceleration sensor

0.5~4.5V Wide measuring range linearity Uniaxial Accelerometer Sensor Module



1. Product Description



An instrument for measuring acceleration, typically that of an automobile, ship, aircraft, or spacecraft, or that involved in the vibration of a machine, building, or other structure.It has functions of  analog voltage output, small size, light weight, wide measuring range, impact resistance, vibration performance.



Accelerometer, also known as Acceleration Sensor, is used to measure the force of the accelerated motion. Usually it is represented with the relative ratio of the acceleration of gravity(G). The accelerometers combined with the industry-leading iMEMS technology have the characteristic of high stability, small size, low weight, instantaneous startup, etc. They can be used vibration measurement and static acclivitous angle measurement.

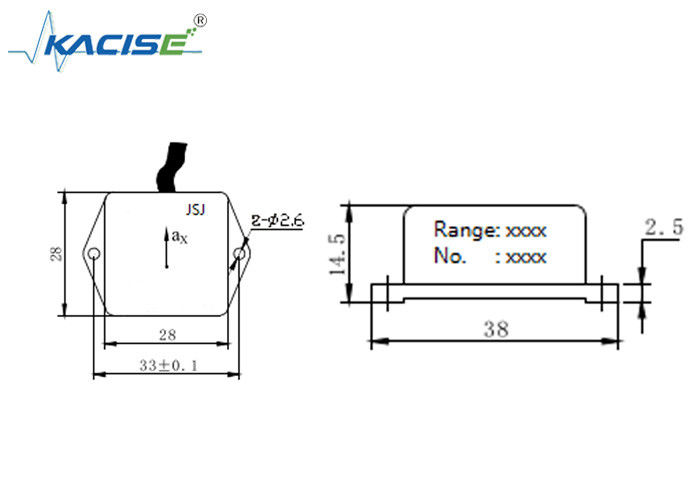

Linearity Uniaxial Accelerometer Sensor 0.5 - 4.5V Wide Measuring Range 0









2.Parameter



Type K-JSJ-001
Electric character
Input voltage 5±0.25 VDC
Input current ≤2 mA
Output Mode 0.5~4.5V
Performance index
Axial direction X
Range ±1 g
Bandwidth ≥50 Hz



Sensitivity

1000±30 mV / g
Resolution (°/s) ≤ 0.001 g
Nonlinear (%FS) ≤ 0.5% Fs
Bias 2.5±0.1 V
Start-up time (ms) ≤1 s
Environmental characteristics
Temperature (°C) -40℃~+70℃
Storage Temperature -40℃~+125℃
Resistant to shock 4000g
Physical Characteristics
Weight (g) 40g
Dimensions 19.5×18.8×8.4 mm

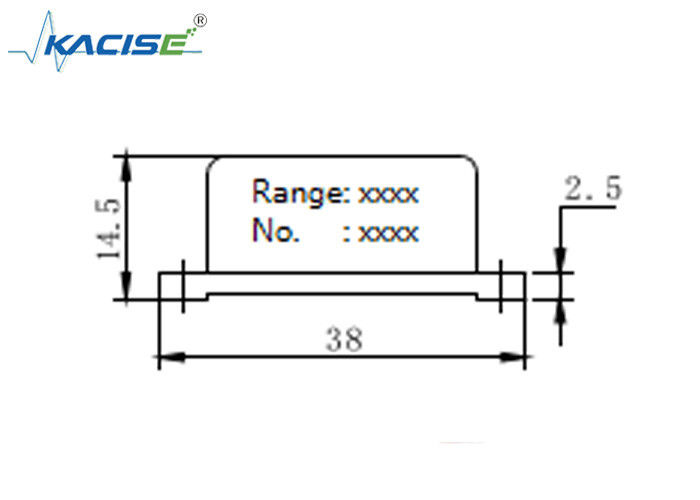

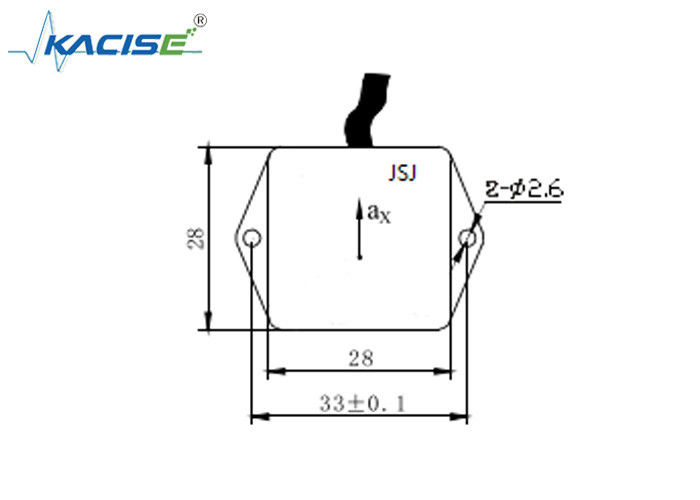

Linearity Uniaxial Accelerometer Sensor 0.5 - 4.5V Wide Measuring Range 1Linearity Uniaxial Accelerometer Sensor 0.5 - 4.5V Wide Measuring Range 2



3.Feature



  • Analog voltage output

  • Wide measuring range

  • impact resistance,Good vibration performance

  • Small size, light weight

  • Good linearity





4.Application Field



  • Aircraft Stability control

  • seismic detection
