| Place of Origin: | Shaanxi, China (Mainland) |
| Brand Name: | KACISE |
| Model Number: | K-2QJJ100/100B/100F/100G |
| Minimum Order Quantity: | 1 Piece/Pieces |
|---|---|
| Price: | Negotiable |
| Packaging Details: | carton or customers requests available |
| Delivery Time: | 5 working days after payment |
| Payment Terms: | L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 1000 Piece/Pieces per Week negotiable |
| Input Voltage: | 10~30 VDC | Input Current: | ＜20mA |
|---|---|---|---|
| Baud Rate: | 9600bps | Data Updating: | 25HZ |
| Bias: | 0.1° | Bandwidth: | 5Hz |
| High Light: | inclinometers and tilt sensors,electronic tilt sensor |
||

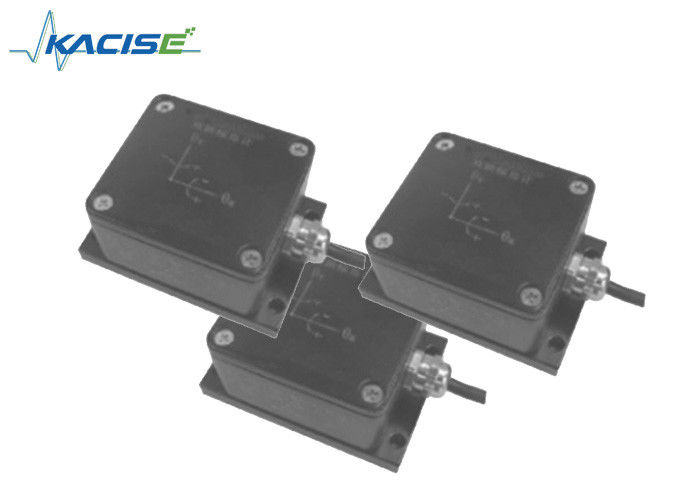

RS232 Output Remote Transmission Inclinometer Sensor For Platform Erection
Features
☆ Angle output directly
☆ remote transmission
☆ K-2QJJ100B/100F/100G is Waterproof shell
☆ K-2QJJ100/100F is RS485 output
☆ K-2QJJ100B is RS232 output
☆ K-2QJJ100G is pulse output
Application
☆engineering machinery
☆platform erection
Specification
| Type | K-2QJJ100A | K-2QJJ100C | K-2QJJ100D |
| Electric character | |||
| Input voltage | 10~30 VDC | ||
| Input current | ＜20mA | ||
| Output mode | RS485 | RS232 | pulse output |
| Baud Rate | 9600bps | ||
| Data updating | 25Hz | ||
| Performance index | |||
| Range | ±30° | ||
| Nonlinear (%FS) | 0.5%FS | ||
| Resolution (°/s) | 0.05° | ||
| Bias | 0.1° | ||
| Bandwidth | 5Hz | ||
| Start-up time (ms) | ＜1s | ||
| Environmental characteristics | |||
| Temperature (°C) | -40℃~+70℃ | ||
| Storage Temperature | -40℃~+125℃ | ||
| Physical Characteristics | |||
| Weight (g) | ＜500g | ||
| Dimensions | 48×38×18mm | 82×58×43mm | |
Note: Range can choose ±20°,±40°,±60°,±75°.
Dimension
Company strength
1.Through the ISO9001: 2008 quality system certification, access to a number of patent certificates and software copyrights
2.And Xiamen University, Chinese Academy of Sciences Institute of Acoustics, 715, Ha Engineering underwater acoustic college and many other colleges and universities,Scientific research unit cooperation
3.Products in the Northwest Industrial Group, Hainan Airlines Co., Ltd., are widely used
4.China's largest sensor, flowmeter production base
workshop
Our Advantage
1.100% real photos--Detailed images, detailed description7
2.*24 hours online--Efficient service, Professional answers
3. The sale of products within one year warranty and life time maintenance.
4.After the receipt of the goods if the quality problems can be returned(Not artificial damage, Never used)
5.OEM is available; small quantities, mixed bulk orders are also welcome;
6. Delivery way: UPS, DHL, TNT, FEDEX, EMS, CHINA POST.
7. Payment: L/C, T/T, Paypal , Western Union, MoneyGram;
We have the key technology and development center of advanced sensors, and we cooperation with Northwestern Polytechnical University, Xi'an Jiao Tong University and other colleges and universities.Product quality is the life of enterprise, customer demand is our existence!
When the company set up, we began to focus on the coordination of military supplies production, achieved GB/T19001-2008/ISQ9001:2008, GJB 9001B-2009 certification. When our company is running mature and stable, in 2008, we began to develop our business. Based on the production of military products quality control, we developed a lot of sensor products, such as a pressure sensor / transducer / sensor, level transmitter / ultrasonic level meter / ultrasonic flow meter, inertial navigation products, IMU, gyroscope, accelerometer etc.
