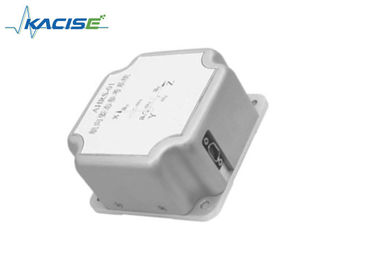

Digital Output RS - 232 Inclinometer Sensor For The Torpedo Trajectory Monitoring

Digital Output RS - 232 Inclinometer Sensor For The Torpedo Trajectory Monitoring

  • Digital Output RS - 232 Inclinometer Sensor For The Torpedo Trajectory Monitoring
  • Digital Output RS - 232 Inclinometer Sensor For The Torpedo Trajectory Monitoring
  • Digital Output RS - 232 Inclinometer Sensor For The Torpedo Trajectory Monitoring
  • Digital Output RS - 232 Inclinometer Sensor For The Torpedo Trajectory Monitoring
Digital Output RS - 232 Inclinometer Sensor For The Torpedo Trajectory Monitoring
Product Details:
Place of Origin: Shaanxi, China (Mainland)
Brand Name: KACISE
Model Number: K-AHRS100
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece/Pieces
Price: Negotiable
Packaging Details: carton or customers requests available
Delivery Time: 5 working days after payment
Payment Terms: L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 1000 Piece/Pieces per Week negotiable
Contact Now
Detailed Product Description
Input Voltage: 15~36VDC Input Current: ≤160
Output Signal: RS232 Output Data Rate: 100HZ
Weight (g): 400g Size(mm: 76*76*38
High Light:

inclinometers and tilt sensors

,

tilt measurement sensor

Digital output RS-232 Inclinometer Sensor For The Torpedo Trajectory Monitoring


Features


  • Short time, non-magnetic AHRS
  • Output attitude angles
  • Output three axis gyroscope & three axis triaxial accelerometer
  • Digital output RS-232



Application



  • Missile guidance and control system,
  • The torpedo trajectory monitoring



  Specification



Product AHRS-01
Power
Input Voltage (VDC) 15~36
Input Current (mA) ≤160
Output signal RS232
Communication baud rate 115200bps
Output data rate 100Hz
Output format A 16-bit binary complement
Performance
Attitude angle Heading Pitch Roll
Measuring range ±180° ±90°
Accuracy(10s) 0.5° 0.2°
Accuracy(100s)
Sensor(X,Y and Z axis) Gyroscope Accelerometer
Range ±250°/s(X) ±30g(X)
Band width ≥50Hz
Non-Linearity (%) ≤0.1%FS
Resolution 0.04°/s 0.005g
Zero offset(25℃) ±0.2°/s ±0.07g
Bias stability 0.015°/s 0.005g
Start-up Time (s) ≤1
Environmental Characteristics
Operation Temperature(℃) -40~+70
Storage Temperature (℃) -55~+100
Impact resistance(2ms) 500g
Size&Weight
Weight (g) 400g
Size(mm) 76*76*38





























































Dimension



Digital Output RS - 232 Inclinometer Sensor For The Torpedo Trajectory Monitoring 0Digital Output RS - 232 Inclinometer Sensor For The Torpedo Trajectory Monitoring 1





workshop



Digital Output RS - 232 Inclinometer Sensor For The Torpedo Trajectory Monitoring 2



Digital Output RS - 232 Inclinometer Sensor For The Torpedo Trajectory Monitoring 3


Digital Output RS - 232 Inclinometer Sensor For The Torpedo Trajectory Monitoring 4


Company strength



1.Through the ISO9001: 2008 quality system certification, access to a number of patent certificates and software copyrights

2.And Xiamen University, Chinese Academy of Sciences Institute of Acoustics, 715, Ha Engineering underwater acoustic college and many other colleges and universities,Scientific research unit cooperation

3.Products in the Northwest Industrial Group, Hainan Airlines Co., Ltd., are widely used

4.China's largest sensor, flowmeter production base



Our Advantage

1.100% real photos--Detailed images, detailed description7
2.*24 hours online--Efficient service, Professional answers
3. The sale of products within one year warranty and life time maintenance.
4.After the receipt of the goods if the quality problems can be returned(Not artificial damage, Never used)
5.OEM is available; small quantities, mixed bulk orders are also welcome;
6. Delivery way: UPS, DHL, TNT, FEDEX, EMS, CHINA POST.
When the company set up, we began to focus on the coordination of military supplies production, achieved GB/T19001-2008/ISQ9001:2008, GJB 9001B-2009 certification. When our company is running mature and stable, in 2008, we began to develop our business. Based on the production of military products quality control, we developed a lot of sensor products, such as a pressure sensor / transducer / sensor, level transmitter / ultrasonic level meter / ultrasonic flow meter, inertial navigation products, IMU, gyroscope, accelerometer etc.
