| Place of Origin: | China |
| Brand Name: | KACISE |
| Certification: | CE |
| Model Number: | KUF2000 Series |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | Negotiable |
| Packaging Details: | one carton for one set |
| Delivery Time: | 3-5 work days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 sets per month |
| Medium: | Water, Sea Water, Sewage, Oil, Chemicals , Alcohol, Milk, Beer, Wine, Etc | Sensor: | Clamp On Type |
|---|---|---|---|
| SD Card: | Optional For More Data Storage | Power Supply: | DC8~36V Or AC85~265V |
| Output: | 4-20mA, OCT Pulse, Relay | Communication: | RS485 Modbus |
| Pipe Diameter: | DN32~6000mm | Pipe Material: | Steel, Stainless Steel, Cast Iron, Copper, Cement Pipe, PVC, Aluminum, Glass Steel Product, Liner Is Allowed |
| High Light: | ultrasonic flow transducer,ultrasonic liquid flow meter |
||
Ultrasonic Clamp On Flow Meter With Easy Installation And Without Cutting Pipe
Introduction
KUF2000 series ultrasonic flow meter usually is used in long-term measurement at field. It has three types of sensor to measure the pipe flow: clamp on type, insertion type and inline pipe type.

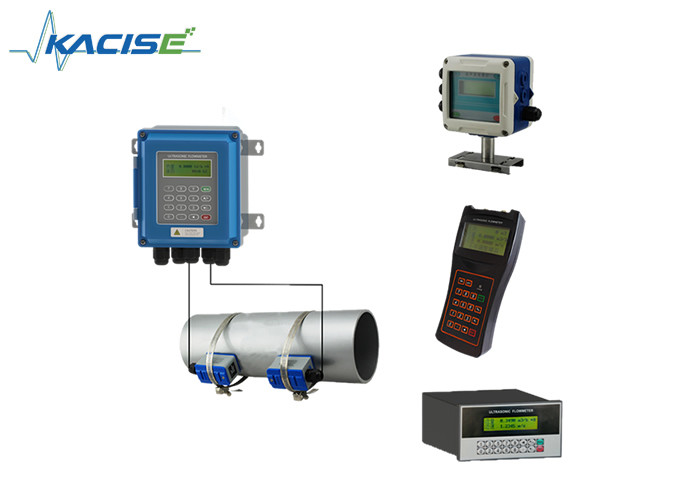

Clamp on type: The sensors clamp on to the outside of pipes and do not come in contact with the internal liquid. And all the models can become energy meters when connecting to temperature sensors. KUF2000 Series Clamp On Ultrasonic Flowmeter is easy for installation, no need to cut off the pipe and water, no press loss. It support measuring online long-term. Wide range of liquid flow can be measured with the sensor clamped on the pipe.

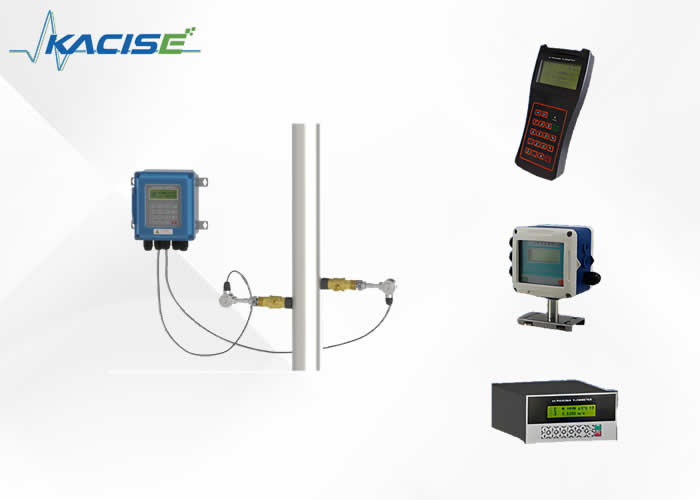

Insertion type: Only two installation holes are needed on the pipe, user can install the insertion type sensors. By using the hole making tool, the no stop flow installation can be realized. Sensors contact to the fluid directly, the measurement is stable and reliable.
Inline pipe type: DN15-32 pipes uses π shape inline pipe sensor, DN40 and above uses standard inline pipe sensor. The inline sensors has the advantages of low starting flow rate, high measurement accuracy and no pressure loss.
Features
Specification
| Accuracy | ≤1% |
| Velocity Range | 0~±10m/s, Bi-directional measurement |
| Pipe Size | DN32~DN6000 |
| Temperature | -30~160℃ |
| Type of Liquid | Single liquid can transmit sound wave. such as water, sea water, sewage, oil, chemicals , alcohol, etc |
| Pipe Material | Steel, Stainless steel, Cast iron, Copper, PVC, Aluminum, Glass steel, etc. Liner is allowed |
| Signal Output |
1 way 4-20mA output(impedance 0~1K, accuracy 0.1%) 1 way OCT pulse output( Pulse width 6 ~ 1000ms) 1 way relay output |
| Signal Input | 3 way 4-20mA input, achieve to heat measurement by connecting PT100 platinum resistor. |
| Interface | RS485, support MODBUS |
| Data Storage | SD card regularly store the pre-set results (optional) |
| Power Supply | DC8~36V or AC85~264V or battery |
Optional Flow Meter Main Unit

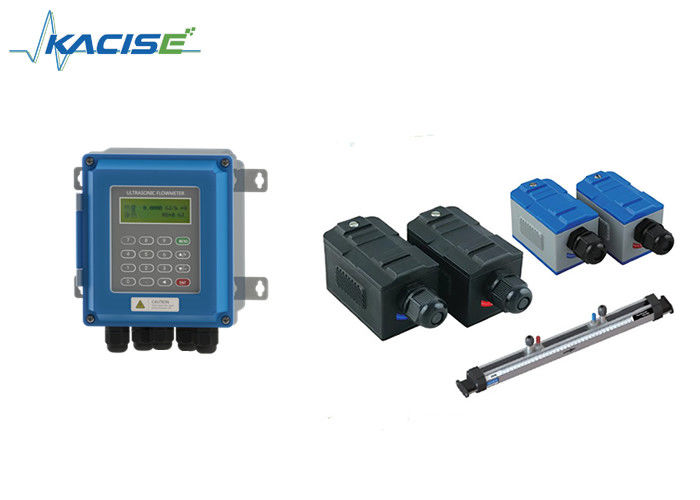

Optional Clamp On Sensors
1. Standard Clamp On Sensor
|
|
|
| Type | Model | Measuring Range | Temperature | Dimension |
| Small Size | TS-2 | DN32~DN100 | - 30~90℃ | 45×25×28mm |
| Middle Size | TM-1 | DN50~DN700 | - 30~90℃ | 64×39×44mm |
| Large Size | TL-1 | DN300~DN6000 | - 30~90℃ | 97×54×53mm |
2. High Temperature Clamp On Sensor
|
|
| Type | Model | Measuring Range | Temperature | Dimension |
| Small Size | TS-2 | DN32~DN100 | - 30~160℃ | 45×25×28mm |
| Middle Size | TM-1 | DN50~DN700 | - 30~160℃ | 64×39×44mm |
| Large Size | TL-1 | DN300~DN6000 | - 30~160℃ | 97×54×53mm |
3. Mounting Bracket Clamp On Sensor
Optional Temp. sensor
Ordering Information
