Helicopter / Drone Wire Rope Vibration Isolator Shock Control Stainless Steel Material

Helicopter / Drone Wire Rope Vibration Isolator Shock Control Stainless Steel Material

  • Helicopter / Drone Wire Rope Vibration Isolator Shock Control Stainless Steel Material
  • Helicopter / Drone Wire Rope Vibration Isolator Shock Control Stainless Steel Material
  • Helicopter / Drone Wire Rope Vibration Isolator Shock Control Stainless Steel Material
  • Helicopter / Drone Wire Rope Vibration Isolator Shock Control Stainless Steel Material
Helicopter / Drone Wire Rope Vibration Isolator Shock Control Stainless Steel Material
Product Details:
Place of Origin: China (Mainland)
Brand Name: Kacise
Certification: ISO9001:2008
Model Number: GR2
Payment & Shipping Terms:
Minimum Order Quantity: 1ps
Price: Negotiable
Packaging Details: each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time: 5-8 work day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal
Supply Ability: 10000 Pieces per Week
Contact Now
Detailed Product Description
Type:: Noise And Attenuation Material:: Aluminum Or Stainless Steel
Certificate:: ISO9001:2008 Usage:: Industrial Machinery
Application:: Aerial Camera Gimbal Photography Drone Shooting Shock Vibration Insulation GR1 Series Camera Vibration Isolator
High Light:

wire rope shock absorber

,

cable shock absorber

Helicopter Drone UAV Camera Gimbal Aerial Photography Accessories Vibration Shock Control Camera Vibration Isolator



1. Product Description

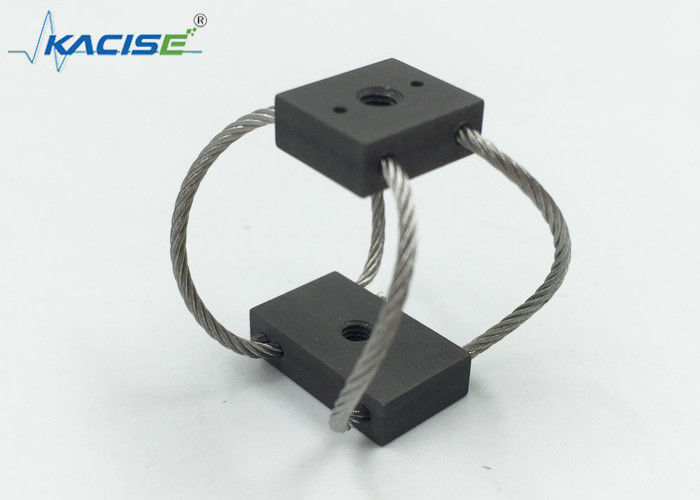

Helicopter / Drone Wire Rope Vibration Isolator Shock Control Stainless Steel Material 0

GX Compact Wire Rope Isolators feature an easy, single-point installation, which allows them to be installed in virtually any application. Their small size also permits the isolation of individual system components, makingthem ideal for use in sensitive equipment and electronics. Just as with our standard GX Wire Rope Isolators, GX Compact Wire Rope Isolators feature a patented, all-metal design and components that ensure maximum reliability, regardless of temperature or substrate requirement, and that can help meet MILSPECS similar to those of our Wire Rope Isolator series. Please refer to our “Compact Wire Rope Isolator Sizing Information”.

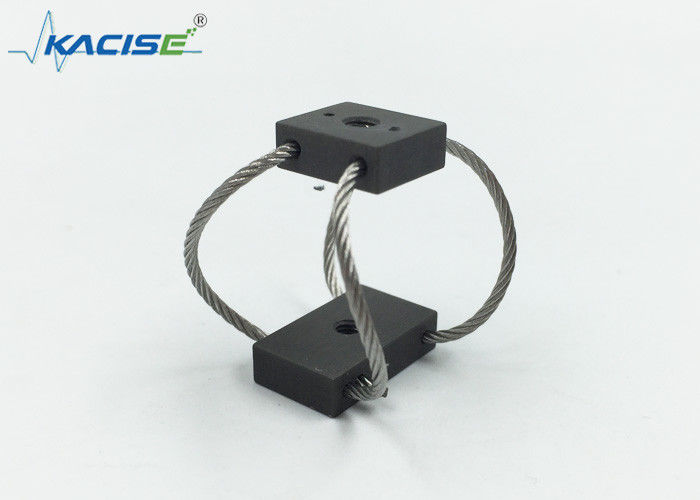

Helicopter / Drone Wire Rope Vibration Isolator Shock Control Stainless Steel Material 1

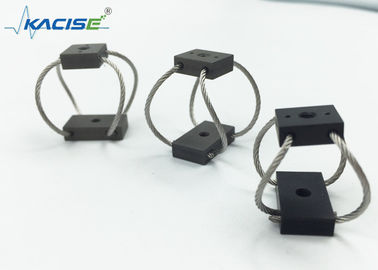

Helicopter / Drone Wire Rope Vibration Isolator Shock Control Stainless Steel Material 2



2. Parameters



Dimension Parameter Table

Model Height ±1.5(mm) Width (mm) Weight (kg) MountingOptions Thru Hole(mm) Thread (mm) C’sink
GR2-100 16 20 0.06 A,B,C,D,E,S φ3.3 M3x0.5 90
GR2-200 19 21 0.06
GR2-300 23 24 0.07
GR2-400 27 27 0.07



Table 1 GR2 Series Technical Parameters

Model Max Static Load(N) Max Deflection(mm) Kv (Vibration)(KN/m) Ka(Shock)(KN/m)
GR2-100 12 5.8 11 6.1
GR2-200 9.3 8.4 8.8 4
GR2-300 6.7 11.7 5.3 1.9
GR2-400 4.9 15.7 3.5 1.2



Table 2 GR2 45°Compression/Roll Load

Model Max Static Load(N) Max Deflection(mm) Kv (Vibration)(KN/m) Ka(Shock)(KN/m)
GR2-100 5.8 8.1 6.1 2.8
GR2-200 4.9 10.9 5.3 1.9
GR2-300 3.3 14.5 3.2 1
GR2-400 2.2 19.1 1.9 0.5

Table 3 GR2 Shear/Roll Load

Model Max Static Load(N) Max Deflection(mm) Kv (Vibration)(KN/m) Ka(Shock)(KN/m)
GR2-100 5.6 7.4 3 3
GR2-200 4 9.9 1.8 1.8
GR2-300 2.9 13 1.1 1.1
GR2-400 2 17.3 0.5 0.5





3. Feature



● Be designed as the same production of France
● Feature with less volume and weight
● With the characters of three dimensional variable stiffness and friction
● Widely be used on the small devices



4. Application Field

Applications Typical Equipment Protection From Operational Advantages
Shipboard Electronics, Computers,
Machinery
Explosive blast,
Inherent vibration, Storms
Long life, Maintenance-free,
Temperature extremes,
Corrosion resistance,
All axes protection
Rough Terrain Vehicles Instrumentation, Generators,
Electronics
Rough terrain,
Poor road conditions,
Collision
Long life, Maintenance-free,
Temperature extremes, Ozone,
Radioactivity, UV Radiation
Aircraft Electronics, Computers High-G maneuvering,
Hard landings, Turbulent air
Temperature and altitude extremes, Lightweight
Shipping Containers Optics, Instruments, Missiles, Electronics

Transit, Handling drop,

Loading/Unloading

Long life, Maintenance-free,

Exposure to moisture, Repeated use

Industrial Equipment



Centrifuge, Dryers, Pumps

Unbalanced dynamic loads,

Fluid hammer, Inherent vibration, Foundation weakness

Long life, Maintenance-free,

Corrosive environments

Ordnance Equipment

Missile launchers, Tank

artillery, Computer controls, Electronics

Rough terrain, Railroad humping, Transit Maintenance-free, Temperature extremes, Nearby blast
Medical Equipment

Mechanical equipment

necessary for patient care

Vibration from moving parts, Mobile carts-Transport shock Maintenance-free, No out gassing, Can be sterilized
Chimneys

Chimneys, Scrubbers,

Measuring devices

Wind causing resonant

frequencies, Stack gas causing turbulence near scrubber, etc.

Maintenance-free, Temperature extremes, Corrosive environments

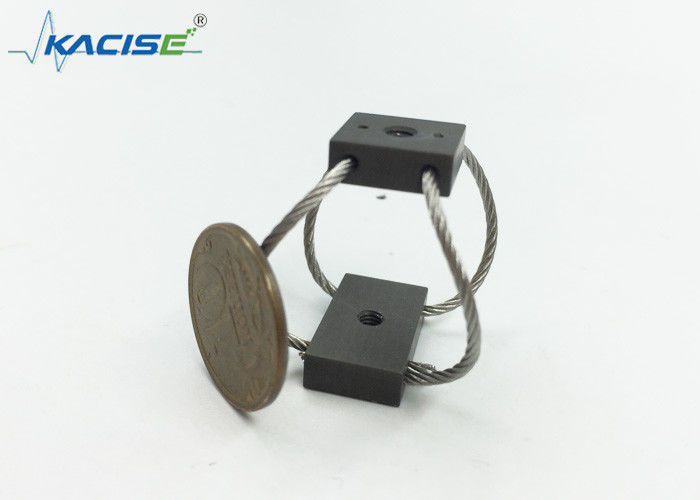

Helicopter / Drone Wire Rope Vibration Isolator Shock Control Stainless Steel Material 3
