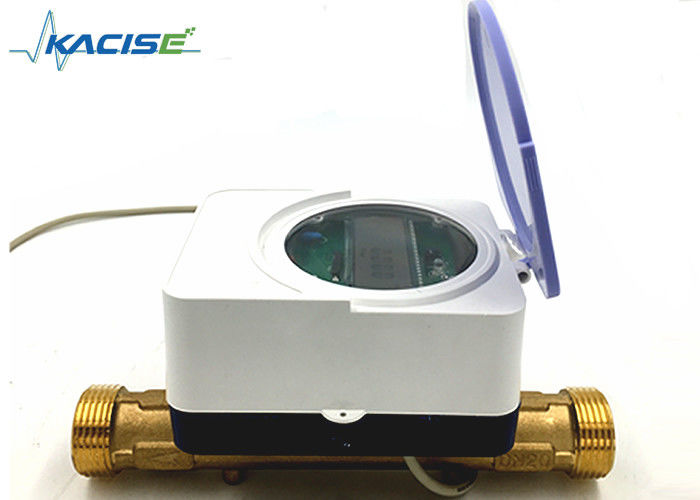

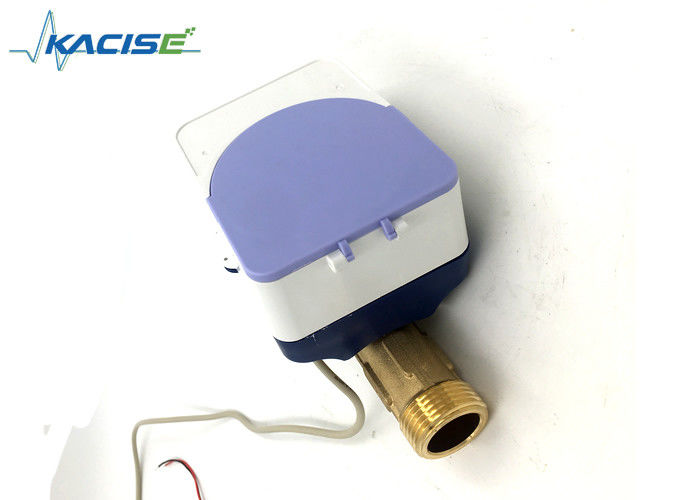

IP68 Ultrasonic Water Meter High Accuracy 1.6MPa Pressure For Buildings

IP68 Ultrasonic Water Meter High Accuracy 1.6MPa Pressure For Buildings

  • IP68 Ultrasonic Water Meter High Accuracy 1.6MPa Pressure For Buildings
  • IP68 Ultrasonic Water Meter High Accuracy 1.6MPa Pressure For Buildings
IP68 Ultrasonic Water Meter High Accuracy 1.6MPa Pressure For Buildings
Product Details:
Place of Origin: China
Brand Name: Kacise
Certification: CE / ISO / Explosion-proof
Model Number: KUHM2100
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton / Wooden Box
Delivery Time: 5~8 working days
Payment Terms: L/C, D/A, T/T, Western Union, MoneyGram
Supply Ability: 1000pcs
Contact Now
Detailed Product Description
DN(mm): DN15~DN40 Pressure: 1.6MPa
Connection: DN15~DN40 Threaded Communication: M-bus / Impulse Output / Radio 434 / 868MHz
Range Ratio: 250 / 400 / 500 Protection: IP68
Accuracy: Class 2 Power Supply: High Power Lithium Battery
Battery Life: >10 Years
High Light:

ultrasonic btu meter

,

m bus water meter

Lorawan 433 / 868Mhz / GPRS Wireless Ultrasonic Water Meter Or Mbus Output Water Meter For Residence





Description



It is an advanced and highly accurate ultrasonic water meter. With no moving parts, the Cube is used for measurement of cold water consumption for residential applications.

The Cube ultrasonic water measurement is based on the transit time method, and all measurements, references, readings, calculations and data communication is controlled by an advanced specially designed electronics circuit.

The Cube has no moving parts, presents an IP68 register, and with big and full information LCD, easy to read the data and see the alarms.



Specifications



Parameter Unit Data value
Nominal Diameter   DN 15 DN20 DN25

Start flow rate M3/h 0.002 0.002 0.005
Qmin (Q1) M3/h 0.010 0.010 0.016
QTransitional (Q2) M3/h 0.016 0.016 0.025
Qmax/permanent (Q3) M3/h 2.5 2.5 4.0
Qoverload(Q4)   3.125 3.125 5.0
Range ratio=Q3/Q1   250 250 250
Metrology accuracy   2 class 2 class 2 class
Q1~Q2 error   <3% <3% <3%
Q2~Q4 error   2% 2% 2%
Max working pressure MPa 1.6MPa 1.6MPa 1.6MPa
Pressure loss KPa <25 <25 <25
Temperature 4℃-65℃ 4℃-65℃ 4℃-65℃
humidity range %RH <95 <95 <95
Channel length mm 165mm 195mm 215mm
Maximum registration (LCD) M3 99999.999
Min instant-flow reading (LCD) M3/h 0.001
Max instant-flow reading (LCD) M3/h 9.999
Battery
Battery type   Lithium
Battery life Year >10
Smart function
Communication   M-bus/Impulse output/868 LoRa
Temperature compensation   YES
Mechanics
Channel material   Brass body
Water & dust proof   IP68
Thread pattern mm 33*2.309 33*2.309 33*2.309



IP68 Ultrasonic Water Meter High Accuracy 1.6MPa Pressure For Buildings 0







Dimensions



IP68 Ultrasonic Water Meter High Accuracy 1.6MPa Pressure For Buildings 1






Communication Way:Mbus (CJ188),

RS-485, RS232, IR (optical),

Customized extension: FM, GPRS, LoRa, etc. wireless.

IP68 Ultrasonic Water Meter High Accuracy 1.6MPa Pressure For Buildings 3
