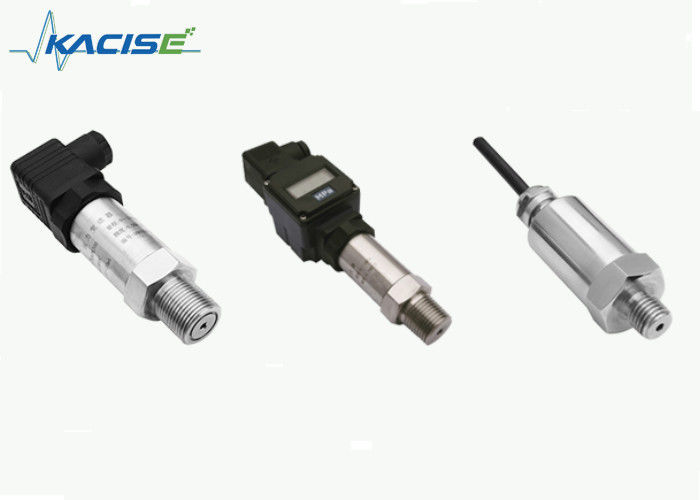

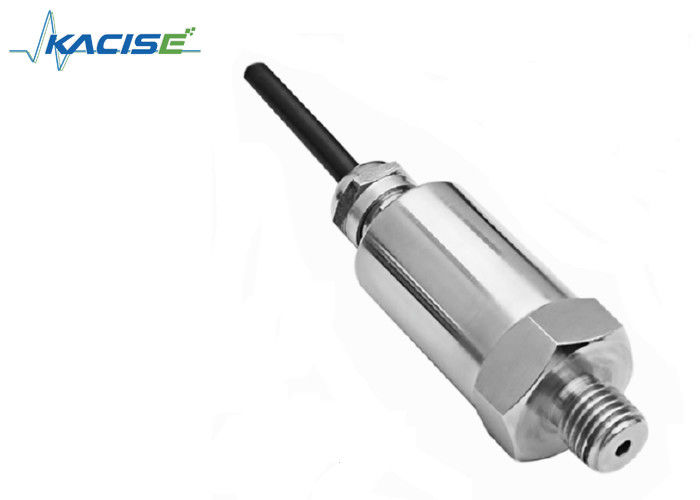

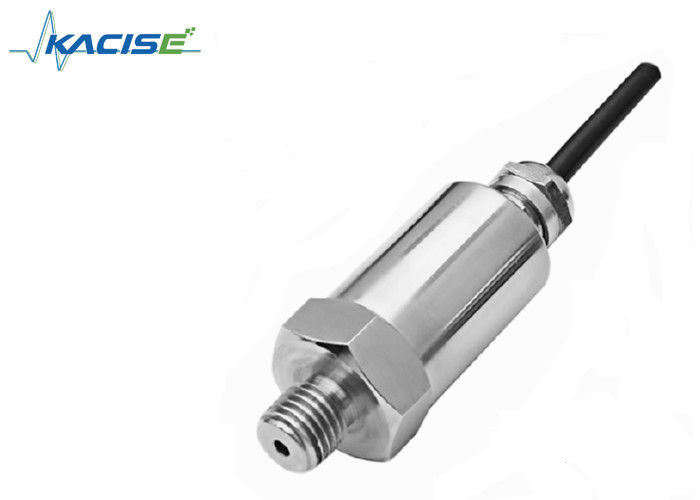

Anti-explosion DC and AC Voltage Output Absolute pressure transmitter With CE for Atmosphere measure

Anti-explosion DC and AC Voltage Output Absolute pressure transmitter With CE for Atmosphere measure

  • Anti-explosion DC and AC Voltage Output Absolute pressure transmitter With CE for Atmosphere measure
  • Anti-explosion DC and AC Voltage Output Absolute pressure transmitter With CE for Atmosphere measure
  • Anti-explosion DC and AC Voltage Output Absolute pressure transmitter With CE for Atmosphere measure
  • Anti-explosion DC and AC Voltage Output Absolute pressure transmitter With CE for Atmosphere measure
Anti-explosion DC and AC Voltage Output Absolute pressure transmitter With CE for Atmosphere measure
Product Details:
Place of Origin: China
Brand Name: Kacise
Certification: Intrinsically safe mode E, Isolation explosion proof D, CE
Model Number: GXPS700
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece/pieces
Price: negotiable
Packaging Details: each unit has individual box and all boxes are packed in standard packages or customers requests avai ...
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 piece per week
Contact Now
Detailed Product Description
Pressure Range: 0~0.01MPa......40MPa Accuracy: ±0.25%F.S, ±0.5%F.S
Output Signal: 4~20mA 0~5V 0~10V Power Supply: 10~30Vdc 6~24Vdc/10~36Vac 11~30Vdc/20~36Vac
Pressure Port: M20×1.5, G1/2, G1/4, NPT1/4, NPT1/2 Operating Temperature: -40°C~85°C
High Light:

piezoresistive pressure transmitter

,

explosion proof pressure transmitter

GXPS700  Anti-explosion DC and AC Voltage Output Absolute pressure transmitter With CE for Atmosphere measure

Application

  • Atmosphere measure
  • Aviation, spaceflight, navigation
  • Packaging machinery
  • Petrochemical industry
  • Meteorological monitoring
  • Automatic detection system
  • The mine wind pressure test
  • Top floor apartment management

Feature

  • Accuracy: ±0.25, ±0.5%F.S
  • Various of measuring range and signal output
  • Various of connector and pressure port
  • Non polarity two wire current output
  • DC and AC voltage output
  • Intrinsically safe mode, isolation explosion proof,
  • CE certificate, RoHS compliant

Introduction



GXPS700 Series absolute pressure transmitter is in an absolute vacuum as a reference point for pressure measuring. Connector size and structure size covers all products produced by our company structure and output interface.

  1. Atmospheric pressure: The thick atmosphere surrounded by the surface of the earth which the pressure generated by the objects on the Earth's surface or the surface is called the atmospheric pressure, code name: B
  2. Gauge pressure=relative pressure, Atmospheric pressure as zero resultant pressure value called gauge pressure or relative pressure, code name: Pg
  3. Absolute pressure: Absolute zero pressure (absolute vacuum) for zero resultant pressure value called absolute pressure, code name: PABS
  4. Absolute pressure=relative pressure+ atmospheric pressure, PABS=Pg+ B
  5. Vacuum = atmospheric pressure - absolute pressure Kv =B-PABS.(B>PABS)

Electronic interface and signals definition



Anti-explosion DC and AC Voltage Output Absolute pressure transmitter With CE for Atmosphere measure 0

Parameter



Spec. Value
Pressure range 0~0.01MPa......40MPa
Load pressure 1.5times nominal value pressure (1.5X)
Rupture pressure 3times nominal value pressure (3X)
Accuracy ±0.25%F.S, ±0.5%F.S
Stability Typical value 0.25%F.S, Max. value: 0.4%F.S
Operating temperature -40°C~85°C
Compensation temperature -10°C~70°C
Medium compatibility All Caustic Medium Compatible with 1Cr18Ni9Ti
Electrical performance 2 wire system 3 wire system
Output signal 4~20mA 0~5V 0~10V
Power supply 10~30Vdc 6~24Vdc/10~36Vac 11~30Vdc/20~36Vac
Load pressure (U-10)/0.02(Ω) 〉100kΩ
Insulation >100M Ω@50V
Electrical connection Connector DIN43650, IP65
Air plug GX16-7, IP45
Waterproof outlet, IP68
Pressure port M20×1.5, G1/2, G1/4, NPT1/4, NPT1/2
Response time 10ms
Certificate Intrinsically safe mode E, Isolation explosion proof D, CE
EMI/EMC EMI: EN50081-1/-2; EMC: EN50082-2
