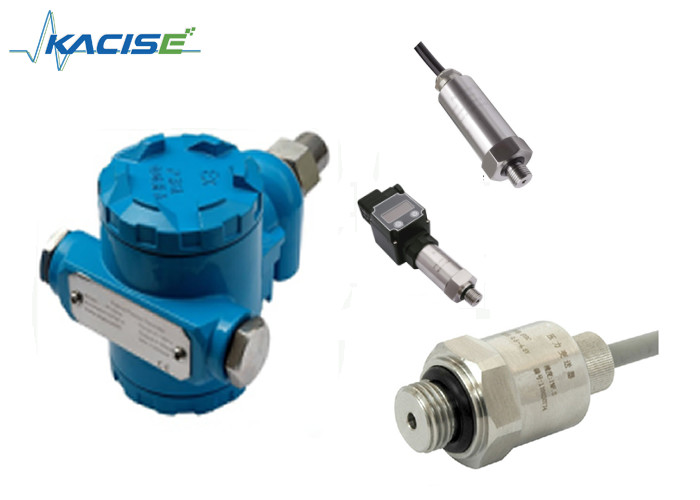

Display -999~1999 pressure -0.1....-0.01MPa......200MPa output 0~20mA, 0~30VDC Pressure Transmitter for Boiler Pres

Display -999~1999 pressure -0.1....-0.01MPa......200MPa output 0~20mA, 0~30VDC Pressure Transmitter for Boiler Pres

  • Display  -999~1999  pressure -0.1....-0.01MPa......200MPa output 0~20mA, 0~30VDC Pressure Transmitter for  Boiler Pres
  • Display  -999~1999  pressure -0.1....-0.01MPa......200MPa output 0~20mA, 0~30VDC Pressure Transmitter for  Boiler Pres
  • Display  -999~1999  pressure -0.1....-0.01MPa......200MPa output 0~20mA, 0~30VDC Pressure Transmitter for  Boiler Pres
  • Display  -999~1999  pressure -0.1....-0.01MPa......200MPa output 0~20mA, 0~30VDC Pressure Transmitter for  Boiler Pres
Display  -999~1999  pressure -0.1....-0.01MPa......200MPa output 0~20mA, 0~30VDC Pressure Transmitter for  Boiler Pres
Product Details:
Place of Origin: China
Brand Name: Kacise
Certification: Intrinsically safe, explosion proof, CE certificate
Model Number: GXPS800
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece/pieces
Price: negotiable
Packaging Details: each unit has individual box and all boxes are packed in standard packages or customers requests available
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 2000 Piece/Pieces per Week
Contact Now
Detailed Product Description
Pressure Range: -0.1...-0.01MPa......200MPa Accuracy: ±0.1%F.S, ±0.25%F.S, ±0.5%F.S
Output Signal: 4~20mA 0~20mA 0~10mA 0~5V 0~10V Display Range: -999~1999
Power Supply: 12~30Vdc 12~30Vdc Operating Temperature: -50°C~150°C
High Light:

piezoresistive pressure transmitter

,

explosion proof pressure transmitter

GXPS-Series Display  -999~1999  pressure -0.1....-0.01MPa......200MPa output 0~20mA, 0~30VDC Pressure Transmitter for  Boiler pressure testing

Application

  • Construction machinery
  • Automotive engine
  • High pressure common rail engine
  • High temperature and cold environment
  • Deep well oil pressure measurement
  • Boiler pressure testing
  • Natural gas storage device
  • Hydraulic lubrication

Feature



  • ±0.1,±0.25,±0.5%F.S
  • Sputtering film core
  • Resistant to high temperature of 150℃
  • Fully welded, no “O”-ring
  • A variety of connector and pressure port
  • Non polarity two wire current output
  • DC and AC output
  • Intrinsically safe, explosion proof, CE certificate
  • RoHS compliant

Introduction



GXPS800 series sputtered film pressure transmitter is a high temperature, large range, high precision products. Widely used in gas, liquid pressure detection, such as water, oil, mild corrosive liquids and gases.

Sputtered film core refers to the use of chemical methods, in the core body on the elastic body by chemical methods, sputtering a layer of insulator, followed sputtering on the use of a set of measurements on the insulator thin metal Wheatstone bridge and temperature compensating resistors, and finally covered with a layer of insulating material above the metal film resistor. When the core body by pressure elastomer deformation occurs in the elastic body, a metal thin film, a sputtering Wheatstone bridge along with the deformation occurs to produce a linear output.



Electronic interface and signals definition





Display  -999~1999  pressure -0.1....-0.01MPa......200MPa output 0~20mA, 0~30VDC Pressure Transmitter for  Boiler Pres 0



Electric connection
2 wire 3 wire 4 wire Cable Hirschmann Air plug
Power Power Power+ Red 1 1
Output Output Output+ Blue 2 2
  Power ground Power - Black 3 3
    Output- Green
Shielded shielded Shielded Yellow   4

Parameter



Spec. Value
Pressure range -0.1....-0.01MPa......200MPa
Load pressure 2 times nominal value pressure (1.5X)
Rupture pressure 4 times nominal value pressure (3X)
Accuracy ±0.1%F.S, ±0.25%F.S, ±0.5%F.S
Stability Typical value 0.25%F.S/year, Max. 0.4% F.S
Operating temperature -50°C~150°C
Compensation temperature -20°C~120°C
Medium compatibility All Caustic Medium Compatible with 1Cr18Ni9Ti
Electrical performance 2 wire system3/4 wire system
Output signal 4~20mA,0~20mA,0~10mA,0~5V 0~10V
Power supply 12~30Vdc,0-30VDC,1-5V,0.5-3V
Load pressure (U-10)/0.02(Ω) > 20kΩ
Insulation > 100M Ω@50V
Electric strength 500V@60 second
Vibration/Impact 10g/5~2000Hz, axes X/Y/Z20g sine 11ms
Pressure durable 2×106pressure circle @25°C
Electrical connection Hirsmann , air plugs, fixed cable, water proof cable
Display range -999~1999
Pressure port M20×1.5, G1/4, G1/2, R1/2, NPT1/2, NPT1/4
Pressure type G, S Response time: 10ms
EMI/EMC EMI: EN50081-1/-2; EMC: EN50082-2
