Ultrasonic Inline Water Flow Meter , Stainless Steel Flow Meter For Pipe Diameter DN10 - DN1500

Ultrasonic Inline Water Flow Meter , Stainless Steel Flow Meter For Pipe Diameter DN10 - DN1500

  • Ultrasonic Inline Water Flow Meter , Stainless Steel Flow Meter For Pipe Diameter DN10 - DN1500
  • Ultrasonic Inline Water Flow Meter , Stainless Steel Flow Meter For Pipe Diameter DN10 - DN1500
Ultrasonic Inline Water Flow Meter , Stainless Steel Flow Meter For Pipe Diameter DN10 - DN1500
Product Details:
Place of Origin: China
Brand Name: KACISE
Certification: CE
Model Number: KUF2000 Series
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: one carton for one set
Delivery Time: 3-5 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000 sets per month
Contact Now
Detailed Product Description
Signal Output: 4-20mA, OCT Pulse, Relay Power Supply: DC8~36V Or AC85~265V Or Battery
Medium: Water, Sea Water, Waste Water, Oil, Chemicals (alcohol, Acids, Etc.), Beverage (beer, Wine, Etc.)... Communication: RS485 Modbus
Pipe Material: Carbon Steel, Stainless Steel, Cast Iron, Copper, Cement Pipe, PVC, Aluminum, Glass Steel Product, Liner Is Allowed Pipe Diameter: DN15~1500mm
High Light:

portable clamp on flow meter

,

ultrasonic flow transducer

Inline Pipe Type Stainless Steel Flow Meter For Pipe Diameter DN10-DN1500







Introduction

KUF2000 series ultrasonic water flow meter usually is used in long-term measurement at field. It has three types of sensor to measure the pipe flow: clamp on type, insertion type and inline pipe type. And it can measure heat if add temperature sensor. SD card is optional to save large quantity of data.

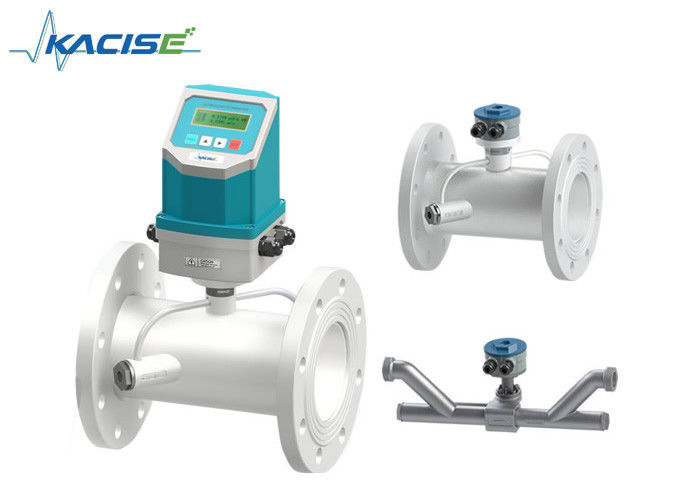

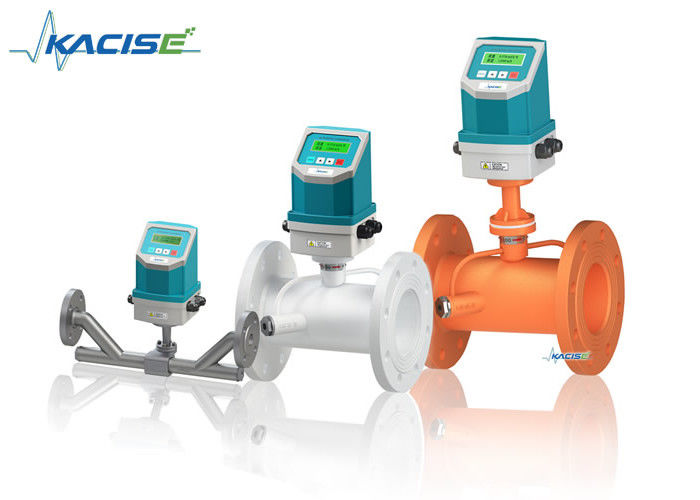

Inline pipe type: DN15-32mm pipes uses π shape inline pipe sensor, DN40 and above uses standard inline pipe sensor. The inline sensors has the advantages of low starting flow rate, high measurement accuracy and no pressure loss.

Clamp on type: The sensors clamp on to the outside of pipes and do not come in contact with the internal liquid. And all the models can become energy meters when connecting to temperature sensors. KUF2000 Series Clamp On Ultrasonic Flowmeter is easy for installation, no need to cut off the pipe and water, no press loss. It support measuring online long-term. Wide range of liquid flow can be measured with the sensor clamped on the pipe. It is also a low cost solution for big diameter pipes.

Insertion type: Only two installation holes are needed on the pipe, user can install the insertion type sensors. By using the hole making tool, the no stop flow installation can be realized. Sensors contact to the fluid directly, the measurement is stable and reliable.



Parameters

















Host part

Principle

Ultrasonic time gap

Accuracy

±1%

Display

2×20 character LCD with backlight



Signal output

1 way 4~ 20mA output, electric resistance 0~ 1K,accuracy0. 1%

1 way OCT pulse output( Pulse width 6 ~ 1 0 0 0 ms,default is 2 0 0 ms)

1 way Relay output



Signal input

3 way 4~ 20mA input, accuracy 0. 1%,acquisition signal such as temperature, press and liquid level

Connect the temperature transducer Pt100, can realize the heat/energy measurement

Data interface

Insulate RS485 serial interface, upgrade the flow meter software by computer, support the MODBUS, METER-BUS etc.

Cable

Twisted-pair cable, generally, the length under 50 meters;

Select the RS485 communication. The transmission distance can over 1000m.





Pipe Condition

Pipe material

Steel, Stainless steel, Cast iron, Copper, Cement pipe, PVC, Aluminum, Glass steel product, liner is allowed.

Pipe Diameter

DN15~6000mm

Straight length pipe

Transducer installation should be satisfied: upstream10D, downstream 5D, 30D from the pump.





Medium

Type of Liquid

 Water, sea water, waste water, oil, chemicals (alcohol, acids, etc.), plant effluent and other liquids

Temperature

-30~160°C

Turbidity

10000pm not so much bubbles

Flow speed

0~±10m/s

Environment

Temperature

Host: -20~60°C; Sensor: -30~160°C

Humidity

Host: 85%RH;  Flow sensor: IP68, less than 2m under water

Power supply

DC8~36V or AC85~265V or Battery

Consumption

1.5W





Ultrasonic Inline Water Flow Meter , Stainless Steel Flow Meter For Pipe Diameter DN10 - DN1500 0

Optional Host



Ultrasonic Inline Water Flow Meter , Stainless Steel Flow Meter For Pipe Diameter DN10 - DN1500 1



Sensor Selection



Ultrasonic Inline Water Flow Meter , Stainless Steel Flow Meter For Pipe Diameter DN10 - DN1500 2



Optional Temp. sensor



Ultrasonic Inline Water Flow Meter , Stainless Steel Flow Meter For Pipe Diameter DN10 - DN1500 3



Ordering Infomation



Ultrasonic Inline Water Flow Meter , Stainless Steel Flow Meter For Pipe Diameter DN10 - DN1500 4
