| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Certification: | ISO9001:2008 |
| Model Number: | JMZ series |
| Minimum Order Quantity: | 10ps |
|---|---|
| Price: | Negotiable |
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Delivery Time: | 5-8 work day |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal |
| Supply Ability: | 10000 Pieces per Week |
| Features: | Anchoring Holes; Oil Resis | Material:: | Stainless Steel And Aluminum |
|---|---|---|---|
| Application:: | Machine Parts And Communic | Color:: | Blackish Green And Silver Pai |
| Type: | Metal And Mesh Isolator | Size:: | To Machine |
| Characteristic: | Wide Working Frequency, Long Li | Packing:: | Standard Packing |
| High Light: | wire rope shock absorber,cable shock absorber |
||

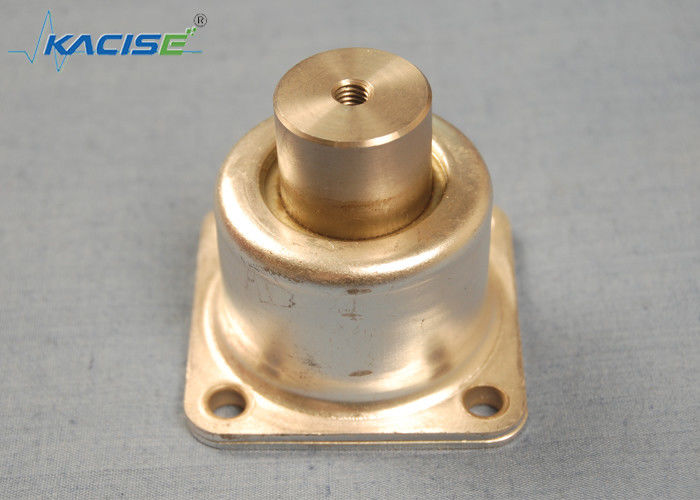

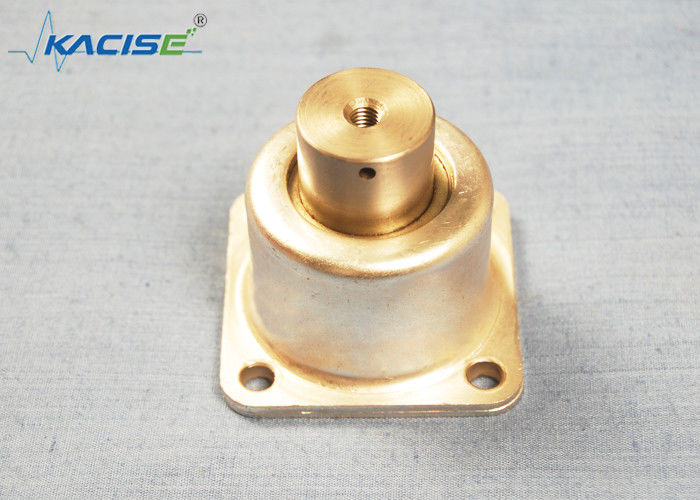

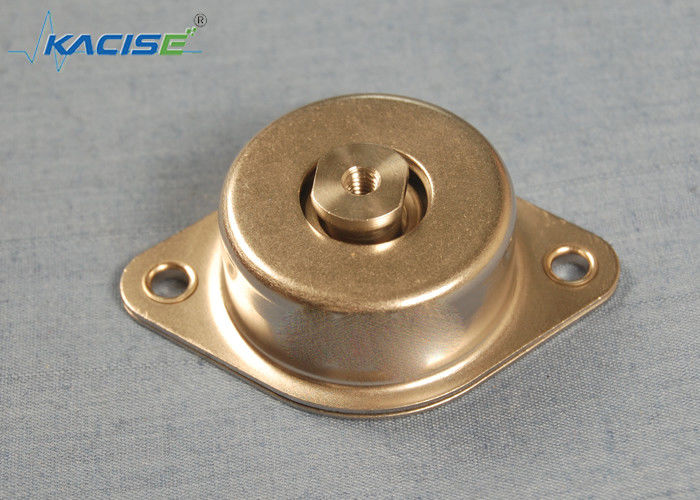

Wide working frequency Stainless Steel and aluminum Metal and Mesh Isolator
1.Product Description
Friction damping shock absorber is to convert the energy of vibration into heat energy, so as to achieve the purpose of eliminating vibration. Friction damper is widely used for its simple structure, stable performance, large damping, and adaptability to harsh environment. Under normal service load, friction damper provides additional stiffness for the structure and does not move itself. Under large vibration, friction damper consumes the energy input from vibration by producing friction slip, and adds damping to the structure, thus reducing the structural response.
JMZ series friction damper has good performance. It adopts the combination structure of special friction disc and coupled spring, which has good shock resistance and seismic performance in any direction. JMZ series has wide working frequency, long life, high temperature resistance, low temperature resistance, salt proof, moisture proof, mildew proof and other characteristics, can be used in harsh environment.
JMZ series friction damping vibration isolators are suitable for communication companies, scientific research institutes, universities, all kinds of vibration proof instruments, airborne radio equipment, can also be used in vehicles and industrial applications.
2.Specific Applications
| Model /Dimension | B±0.5 | A±0.1 | H (Reference) |
H±0.5 | T | d | d+0.3 10 |
d2 | D | PW |
| JMZ-1©-1.0 | 35 | 26 | -40 | 29 | 11 | M4-7H | 3 | 14 | 28 | 0.1 |
| JMZ-1©-1.0A | 0.13 | |||||||||
| JMZ-1©-1.5 | 0.1 | |||||||||
| JMZ-1©-1.5A | 0.13 | |||||||||
| JMZ-1-1.4 | 44 | 35 | -50 | 36 | SW14 | M5-7H | 5.1 | / | 39.5 | aluminum shell 0.1 stainless steel 0.13 |
| JMZ-1-1.5 | ||||||||||
| JMZ-1-1.5A | ||||||||||
| JMZ-1-2.0 | ||||||||||
| JMZ-1-2.0A | ||||||||||
| JMZ-1-3.0 | ||||||||||
| JMZ-1-3.0A | ||||||||||
| JMZ-1-3.5 | ||||||||||
| JMZ-1-3.5A |
3.Technical Parameters
| Model/Technical Parameters | JMZ-1©-1.0 | JMZ-1©-1.5 | JMZ-1-2.0 | JMZ-1-3.0 | JMZ-1-3.5 |
| Nominal Load of Pz Direction (kg) | 1 | 1.5 | 2 | 3 | 3.5 |
| Displacement Manification (mm) | <2 | 2±1.5 | 3±1.5 | ||
| Frequency of Vibrating Isolation (Hz) | <15 | ||||
| Working Temperature (℃) | -65~+120 | ||||
| Impact test | 30g 11ms /up to the summit of G ≤0.9Km/S² | ||||
| Vibration Test | Up to GJB180-16 | ||||
| Validity (year ) | 3 | ||||
| Duration(year) | 3 | ||||
1: Usually we ship your order by sea or by air...
2: We do our best to ship your order within 1 week after receiving your payment
3: We'll tell you the tracking number once your order has been sent.
Package
1:Inner packing: opp bag, then carton box for each product.
2:Outer packing: export standard carton or wooden box, foam outside protecting the goods against damage.
Payment
1: We accept T/T Bank transfer, L/C, Western Union, Paypal
5.Our Services
Pressure sensor can be customized by your special request, We can supply technical consulting service for your user.
The quality principle: Quality is the best sales
Payment: We accept T/T, PayPal, Western Union, MoneyGram , Escrow
Shipping:
1. All parts will be shipped out within 1 - 3 working days after confirm the payment
2. DHL / FEDEX / UPS / EMS / TNT / China Post /Aramex
3. We are not responsible for force majeure accidents, delays or other issues, like the shipping service.
After-sales service
We can offer good technical support and good warranty for you after service as professional manufacturer.
Warranty: One year
During the warranty, if the goods after delivery are damaged with error caused only by itself quality problem, the goods can be returned for free repair and maintenance. however, if the goods is damaged with error caused by user’ s man-made and force majeure factor, we will be not responsible for free repair and maintenance.
