High Viscosity Liquild Turbine Flow Meter Oval Gear Type With Digital Display

High Viscosity Liquild Turbine Flow Meter Oval Gear Type With Digital Display

  • High Viscosity Liquild Turbine Flow Meter Oval Gear Type With Digital Display
  • High Viscosity Liquild Turbine Flow Meter Oval Gear Type With Digital Display
High Viscosity Liquild Turbine Flow Meter Oval Gear Type With Digital Display
Product Details:
Place of Origin: China
Brand Name: Kacise
Certification: CE / ISO / Explosion-proof
Model Number: KTF
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton / Wooden Box
Delivery Time: 5~8 working days
Payment Terms: L/C, D/A, T/T, Western Union, MoneyGram
Supply Ability: 1000pcs
Contact Now
Detailed Product Description
DN(mm): DN10 - DN200 Pressure: 1.6 Mpa ,2.5Mpa ,4.0Mpa ,6.3Mpa, Special
Medium: Heavy Oil,high Viscosity Oil,Fuel Oil, Chemical Liquids And Bitumen Communication: RS-485 /MODBUS
Accuracy: 0.5% Or 0.2% Output: Pulse, 4-20mA Analog Output, RS485, Hart
Material: Cast Iron/ Steel/ Stainless Steel Power Supply: 12-24VDC /3.6V Lithium Battery
Medium Viscosity: 300-2000mPa.S Ex-proof: ExmdΙΙBT4
High Light:

turbine water flow meter

,

diesel fuel flow meter

Oval Gear Flow Meter Bitumen Flow Mete High Viscosity Liquild Flowmeter



Description



As one of the typical positive displacement flow meter, the oval gear flow meter is used to measure liquid flow rate with viscosity 300-2000mpa.s in pipelines under certain pressure and -10~+100℃.Since it adopts advantage of simple structure, high reliability and accuracy, low requirement for pipes and could accept wide range for both viscosity and flow rate range.

The oval gear flow meter oil oval gear flowmeter has the ability to handle a wide range of fluid viscosities with exceptional levels of repeatability and durability,applying to the industry and commerce of petroleum, chemical, medicine, transportation, food, etc.



Features

☆. Advantage of oval gear flow meter

☆. Compact size,easy maintenance
☆. Easy to read and operate on mechanical dislpay
☆. Horizontal or vertical installation
☆. Low pressure loss



Specifications



Production Name DN15 Low Flow China Mechanical Bitumen Oval Gear Flow Meter
Medium Main Medium is Oil
Accuracy 0.5% or 0.2%
Output Pulse output ,4~20mA Output and without output
Material Cast iron,cast steel or stainless steel material
Display LCD Display or Local Mechanical display
Function Return to zero function
Accessories ''Y''Filter or square filter
Temperature -20~100℃
Viscosity 0.6Mpa.s~250Mpa.s

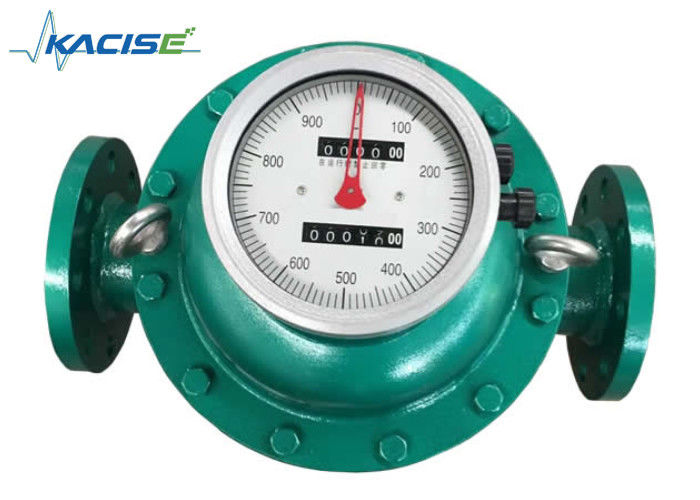

High Viscosity Liquild Turbine Flow Meter Oval Gear Type With Digital Display 0

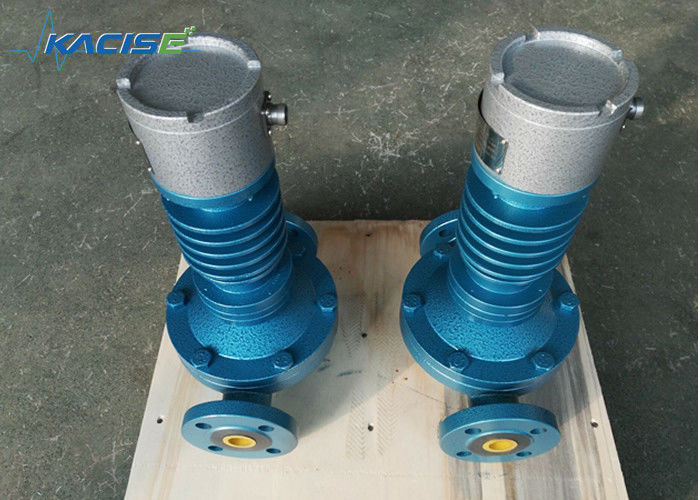

High Viscosity Liquild Turbine Flow Meter Oval Gear Type With Digital Display 1

 Working Principle

High Viscosity Liquild Turbine Flow Meter Oval Gear Type With Digital Display 2



Insatallation

High Viscosity Liquild Turbine Flow Meter Oval Gear Type With Digital Display 3
