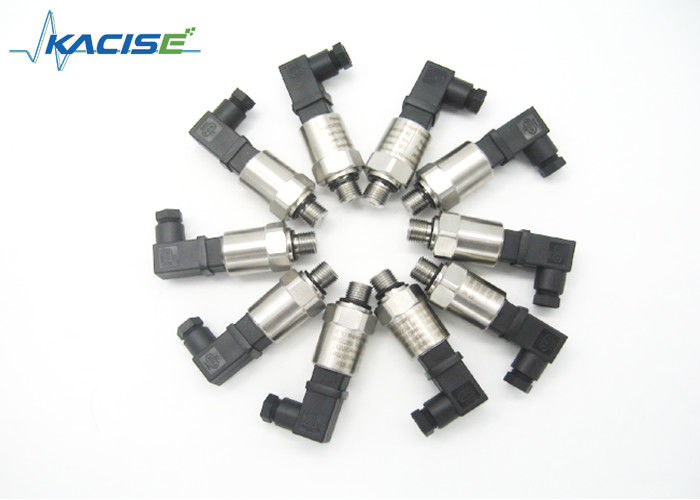

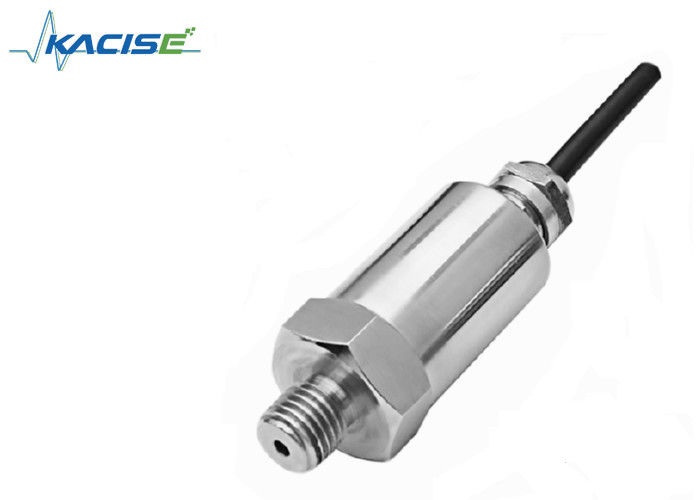

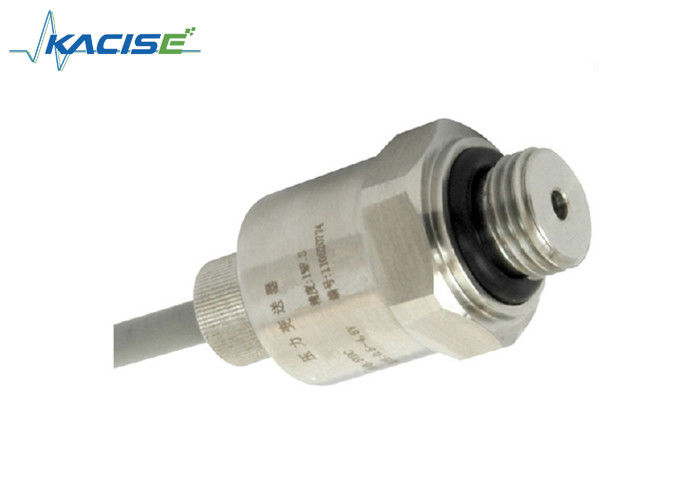

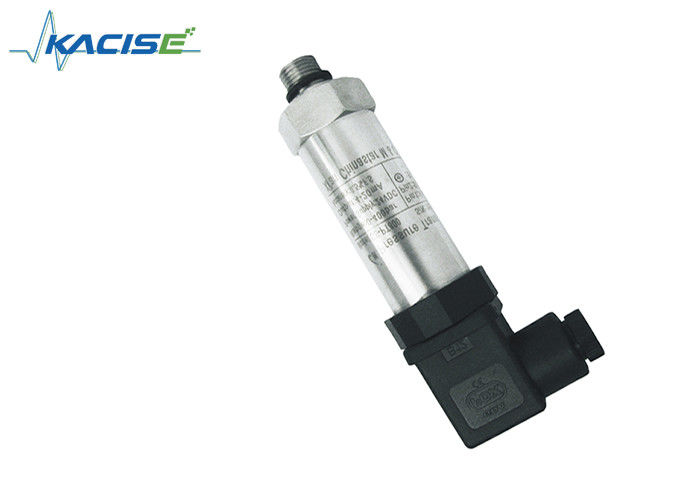

Output 4~20mA and 0~5V Pressure-0.1-100MPa Micrometer adjustment Piezoresistive Universal Pressure Transmitter

Output 4~20mA and 0~5V Pressure-0.1-100MPa Micrometer adjustment Piezoresistive Universal Pressure Transmitter

  • Output 4~20mA and 0~5V  Pressure-0.1-100MPa  Micrometer adjustment Piezoresistive Universal Pressure Transmitter
  • Output 4~20mA and 0~5V  Pressure-0.1-100MPa  Micrometer adjustment Piezoresistive Universal Pressure Transmitter
  • Output 4~20mA and 0~5V  Pressure-0.1-100MPa  Micrometer adjustment Piezoresistive Universal Pressure Transmitter
  • Output 4~20mA and 0~5V  Pressure-0.1-100MPa  Micrometer adjustment Piezoresistive Universal Pressure Transmitter
Output 4~20mA and 0~5V  Pressure-0.1-100MPa  Micrometer adjustment Piezoresistive Universal Pressure Transmitter
Product Details:
Place of Origin: China
Brand Name: Kacise
Certification: Intrinsically safe mode E, explosion proof type D, CE
Model Number: GXPS300
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece/Pieces
Price: negotiable
Packaging Details: each unit has individual box and all boxes are packed in standard packages or customers requests avai...
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 2000 Piece/Pieces per Week
Contact Now
Detailed Product Description
Pressure Range: −0.1MPa……−0.01MPa~0~0.01MPa……100.0MPa Accuracy: ±0.25%F.S,±0.5%F.S
Operating Temperature: -40°C~85°C (or -40°C~125°C) Electrical Performance: 2 Line 3line 4line
Output:: 4~20mA, 0~5V, 0.5~4.5V Certificate: Intrinsically Safe Mode E, Explosion Proof Type D, CE
High Light:

high accuracy pressure sensor

,

explosion proof pressure transmitter

GXPS300 Output 4~20mA and 0~5V  Pressure-0.1-100MPa  Micrometer adjustment Piezoresistive Universal Pressure Transmitter







Feature

  • Zero-position and scale span

    Micrometer adjustment

  • Accept the one-piece, non-standard order

  • Display indicator are available

  • Digital compensation for all temp. range available

  • Multiple pressure range and signal output

  • Non polarized 2 wire system current output

  • Intrinsically safe mode explosion proof, CE

  • Range: -0.1~0MPa, 0~0.03MPa, 0~100MPa

  • Output: 4~20mA, 0~5V, 0.5~4.5V

  • Accuracy: 0.25%F.S, 0.5%F.S

  • Current: 24VDC,non-polarity wire

Instruction



The GXPS300 Series pressure transmitter is a precision, high reliability, high cost,

variable range of industrial products. Widely used in gas, liquid pressure testing, such

as water, oil, mildly corrosive liquids and gases.



Electronic interface and signals definition





Output 4~20mA and 0~5V  Pressure-0.1-100MPa  Micrometer adjustment Piezoresistive Universal Pressure Transmitter 0




Output 4~20mA and 0~5V  Pressure-0.1-100MPa  Micrometer adjustment Piezoresistive Universal Pressure Transmitter 1


Parameter



Spec. Numerical value
Pressure range

−0.1MPa……−0.01MPa~0~0.01MPa……100.0MPa

-0.98atm…-0.098atm~0.098atm…986atm

PSI: -14.5PSI…-1.45PSI~1.45psi…14500psi

BAR : -1BAR….-0.1BAR~0.1bar…1000bar

-10000mmH2O…-1000mmH2O~1000mmH2O…10190000mmH2O

InchHg: -29inchHg… -2.95inchHg~2.95inchHg…29500inchHg

Overload pressure 1.5 times nominal value
Rupture pressure 3 times nominal value
Accuracy ±0.25%F.S,±0.5%F.S
Stability Typical value 0.25%F.S, Max. value:0.4%F.S
Operating temperature -40°C~85°C (or -40°C~125°C)
Compensation temperature -10°C~70°C
Medium All Caustic Medium Compatible with 1Cr18Ni9Ti
Electrical performance 2 line 3 line 4 line
Output signal 4~20mA 0~20mA 0~5V 0.5~4.5V 0~20mA
0~10Vdc 1~5V 0.5~3V 0~5/10Vdc
Power supply 10~30Vdc 11~30Vdc 8~24Vdc 5V Ratio 8/11~30Vdc
Load resistance (U-10)/0.02(Ω) Current:(U-12)/0.02(Ω); voltage :>20KΩ
Insulation >100MΩ @50V
Electric strength 500V@60 second
Electrical connection DIN43650,protection IP65; air plug GX16-7, IP45; IP68
Pressure tap M20×1.5,G1/2,G1/4,G1,NPT1/2,NPT1/4,R1/4, (Ht)
Response time 10ms
Certificate Intrinsically safe mode E, explosion proof type D, CE
EMI/EMC EMI: EN50081-1/-2; EMC: EN50082-2
